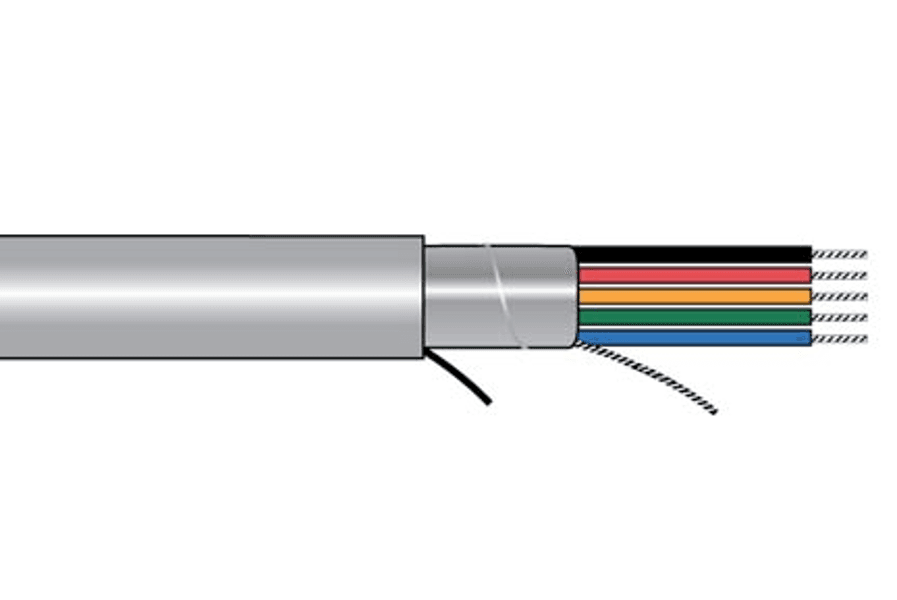

Alpha Wire 5199/15C SL001, Xtra Guard 1 15C 22 AWG Shielded 300 V PVC Jacket

Part Number: 5199/15C SL001

Alpha Wire 5199/15C SL001 Xtra Guard 1 is a 15-Conductor, 22 AWG shielded cable designed for reliable signal and control wiring in electrically noisy environments. It features Stranded 22 (7/30) AWG Tinned Copper Conductors with semi-rigid PVC Insulation and an Overall Foil Shield with Drain Wire for improved EMI/RFI protection. A durable PVC Jacket with a ripcord supports easier stripping and installation, while the construction includes a nonwoven polyester core wrap and a 3.7 Twists/foot (min) cabling lay. Rated 300 V and marked for applications including (UL) Type CM and AWM styles as printed on the cable.

Key Specifications:

• Number Of Conductors: 15 Conductors
• Conductor Size: 22 AWG (American Wire Gauge)
• Conductor Type: Stranded Conductor
• Conductor Material: Tinned Copper
• Shield: Yes
• Shield Type: Foil shielded - Alum/Mylar
• Shield Construction: Overall Shield & drain
• Jacket Material: Pvc-Polyvinyl Chloride
• Insulation Material: SRPVC-semi-rigid polyvinyl chloride
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Construction & Dimensions (Diameters in):

• Conductors: 22 (7/30) AWG Tinned Copper; Conductor Diameter 0.030
• Insulation: 0.010" Wall, Nom. PVC, Semi Rigid; insulated Conductor Diameter 0.050
• Cable assembly: 15 Components Cabled
• Twists: 3.7 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.
• Shield: Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 22 (7/30) AWG Tinned Copper
• Jacket: 0.032" Wall, Nom.,PVC; Overall Diameter 0.303 (0.319 Max.)
• Ripcord: 1 End 810 Denier Nylon

Color Code:

• Color code standard: Alpha Wire Color Code E
• 1: Black
• 2: Brown
• 3: Red
• 4: Orange
• 5: Yellow
• 6: Green
• 7: Blue
• 8: Violet
• 9: Slate
• 10: White
• 11: White/Black
• 12: White/Brown
• 13: White/Red
• 14: White/Orange
• 15: White/Yellow

Jacket Details:

• Jacket Color(s): Slate

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5199/15C 15C 22 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
  CE ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
