Alpha Wire 5272C SL001, Xtra Guard 1 Xtra Guard Performance Cable 2 Pair 24 AWG Shielded 300 V PVC

Part Number: 5272C SL001

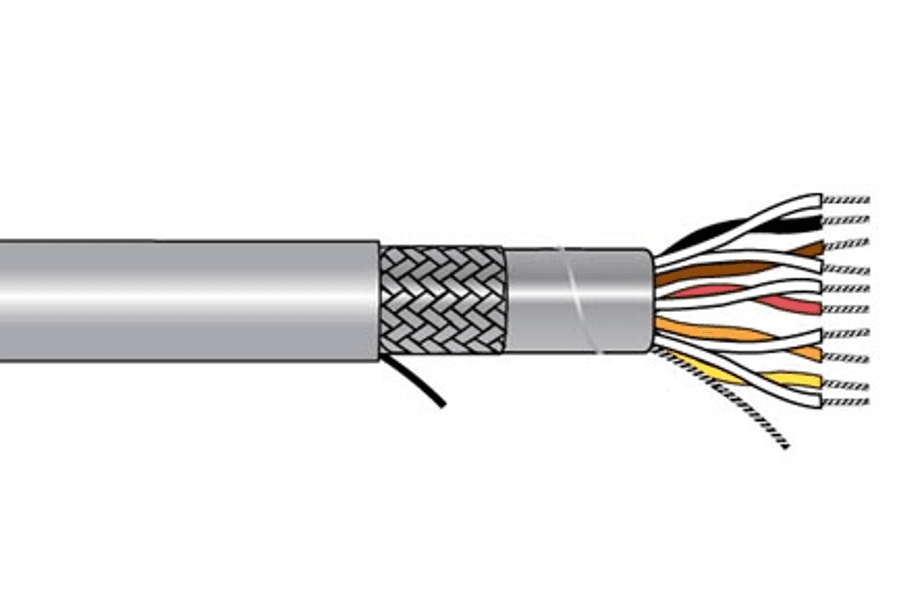

Alpha Wire 5272C SL001 Xtra Guard 1 is a 2 pair 24 AWG shielded performance cable designed for reliable signal integrity in electrically noisy environments. It features Stranded Tinned Copper Conductors with semi-rigid PVC Insulation and an overall foil and Braid Shield for enhanced EMI/RFI protection. Built with a PVC Jacket and rated 300 V, this cable supports demanding industrial and control applications where durability and consistent performance matter. It also includes a ripcord for easier Jacket removal and is identified by the factory print shown below.

General Specifications:

• Number Of Conductors: 2 PAIRS
• Conductor Size: 24 AWG (American Wire Gauge)
• Conductor Type: Stranded Conductor
• Conductor Material: Tinned Copper
• Insulation Material: SRPVC-SEMI-RIGID POLYVINYL CHLORIDE
• Jacket Material: Pvc-Polyvinyl Chloride
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Construction Details:

• Component: 2 X 1 PAIR
• Conductor: 24 (7/32) AWG Tinned Copper
• Conductor Diameter (In): 0.024
• Insulation: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulation Diameter (In): 0.044
• Pairing: 2/Cond Cabled Together
• Pair twists: 9.6 Twists/foot (min)
• Cable assembly: 2 Components Cabled
• Cable assembly twists: 6.0 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shielding:

• Shielded: Yes
• Screen/Shield Type: Braid over Foil Shield
• Shield Construction: Overall foil & braid
• Shield: A/P/A Tape, 25% Overlap, Min.
• Drain Wire: 24 (7/32) AWG Tinned Copper
• Braid: Tinned Copper,70% Coverage, Nom.

Jacket & Identification:

• Jacket: 0.032" Wall, Nom.,PVC
• Jacket Diameter (In): 0.240 (0.253 Max.)
• Jacket Color(s): Slate
• Ripcord: 1 End 810 Denier Nylon
• Cable print (as marked): ALPHA WIRE-* P/N 5272C 2PR 24 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
  CE ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

Color Code:

• Color code standard: Alpha Wire Color Code B
• Pair 1: WHITE-BLACK
• Pair 2: WHITE-BROWN
