Alpha Wire 5274C SL001, Xtra Guard 1 Xtra Guard Performance Cable 4 Pair 24 AWG Shielded 300 V PVC

Part Number: 5274C SL001

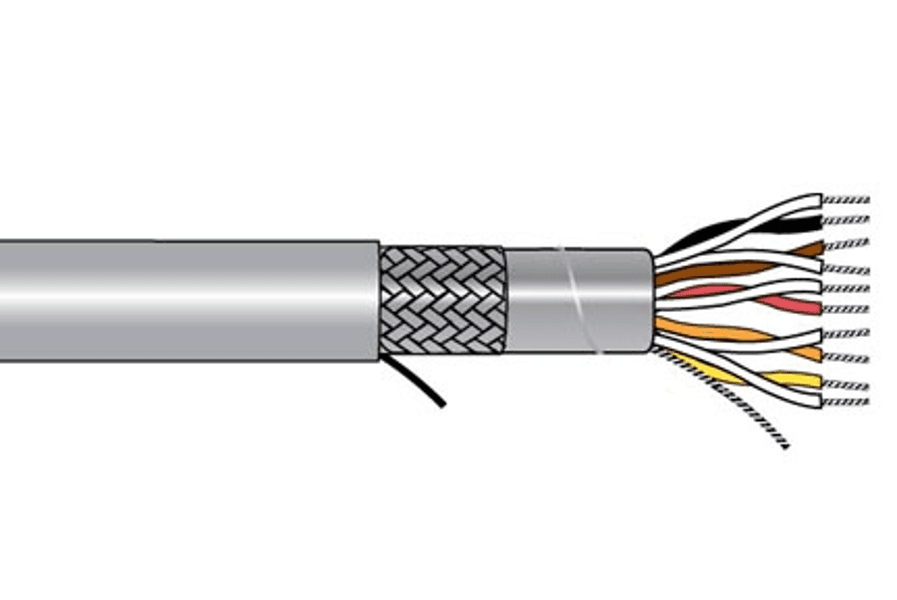

Alpha Wire 5274C SL001 Xtra Guard 1 is a 4 pair 24 AWG shielded performance cable designed for reliable signal integrity in demanding industrial and control applications. It features Stranded 24 (7/32) AWG Tinned Copper Conductors with semi-rigid PVC Insulation and an overall foil and Braid Shield for enhanced noise rejection. The PVC Jacket is rated 300 V and includes a ripcord for easier stripping, with a nominal Jacket Diameter of 0.271 (0.286 Max.). Compliance and markings include UL Listed Art 800 and the exact factory cable print shown below.

Electrical & Ratings:

• Voltage Rating: 300 V
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Conductors:

• Number Of Conductors: 4 pairs
• Conductor Size: 24 AWG (American Wire Gauge)
• Conductor Stranding: 24 (7/32) AWG Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Material: Tinned Copper
• Conductor Diameter (in): 0.024

Insulation:

• Insulation Material: SRPVC-semi-rigid polyvinyl chloride
• Insulation description: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulated Conductor Diameter (in): 0.044

Pairing & Cabling:

• Pair construction: 2/Cond cabled together
• Pair twists: 9.6 Twists/foot (min)
• Cable assembly: 4 components cabled
• Cable twists: 4.8 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shielding:

• Shielded: Yes
• Screen/Shield Type: Braid over Foil Shield
• Shield Construction: Overall foil & braid
• Shield tape: A/P/A Tape, 25% Overlap, Min.
• Drain Wire: 24 (7/32) AWG Tinned Copper
• Braid: Tinned Copper,70% Coverage, Nom.

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket wall: 0.032" Wall, Nom.,PVC
• Overall Diameter (in): 0.271 (0.286 Max.)
• Jacket colors: Slate
• Ripcord: 1 End 810 Denier Nylon

Color Code:

• Color code: Alpha Wire Color Code B
• Pair 1: White-Black
• Pair 2: White-Brown
• Pair 3: White-Red
• Pair 4: White-Orange

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5274C 4PR 24 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
  CE ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
