Alpha Wire 5293C SL001, Xtra Guard 1 Xtra Guard Performance Cable 3 Pair 20 AWG Shielded 300 V PVC

Part Number: 5293C SL001

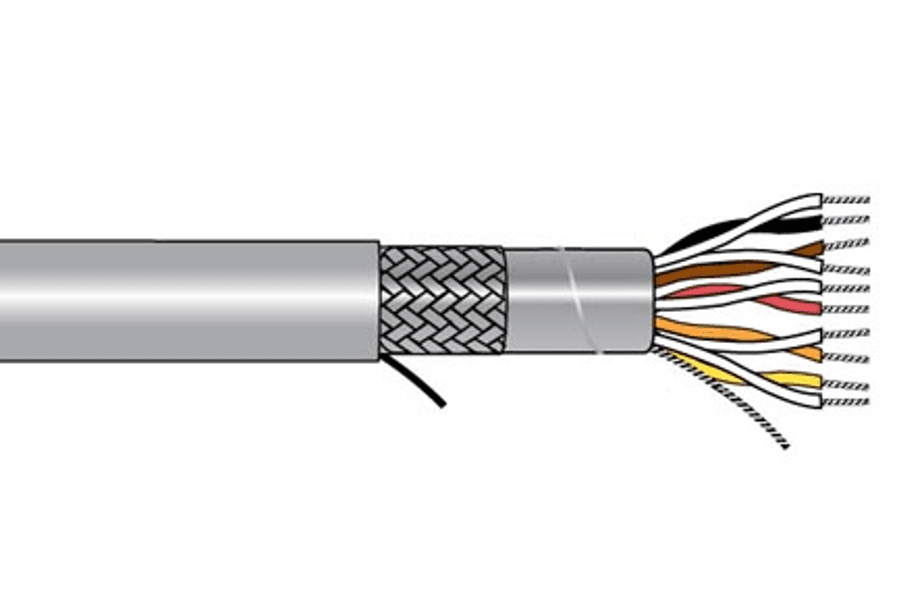

Alpha Wire 5293C SL001 Xtra Guard 1 is a shielded 3 pair 20 AWG performance cable designed for reliable signal integrity in electrically noisy environments. It features Stranded Tinned Copper Conductors with Nom. PVC Insulation and an overall foil and Braid Shield with a Tinned Copper Drain Wire for effective EMI/RFI protection. A Nom. PVC Jacket with ripcord supports easier stripping and installation, while the construction includes controlled twist rates for pair and overall cabling. Rated 300 V and marked for multiple agency and application requirements as shown in the factory print.

General Specifications:

• Brand/Series: Alpha Wire Xtra Guard 1
• Part Number: 5293C
• Variant/Code: SL001
• Number Of Conductors: 3 pairs
• Conductor Size: 20 AWG (American Wire Gauge)
• Voltage Rating: 300 V
• Fire Rating: General Purpose
• NEC Rating: UL Listed Art 800

Conductors:

• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Construction: 20 (7/28) AWG Tinned Copper
• Conductor Diameter: 0.038 in

Insulation:

• Insulation Material: SRPVC-semi-rigid polyvinyl chloride
• Insulation Material (Construction): Nom. PVC
• Insulation Wall: 0.016" Wall, Nom. PVC
• Insulated Conductor Diameter: 0.070 in

Pairing, Twists, and Color Code:

• Pair Construction: 2/Cond cabled together
• Pair Twists: 6.0 Twists/foot (min)
• Cable Assembly: 3 components cabled
• Cable Assembly Twists: 3.4 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Color Code Standard: Alpha Wire Color Code A
• Pair 1 Color: Black-Red
• Pair 2 Color: Black-White
• Pair 3 Color: Black-Green

Shielding:

• Shielded: Yes
• Shield Type: Braid over Foil Shield
• Shield Construction: Overall foil & braid
• Shield Tape: A/P/A Tape, 25% Overlap, Min.
• Drain Wire: 20 (7/28) AWG Tinned Copper
• Braid: Tinned Copper,70% Coverage, Nom.

Core Wrap:

• Core Wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Jacket and Outer Dimensions:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket Wall: 0.032" Wall, Nom.,PVC
• Overall Diameter: 0.344 (0.359 Max.) in
• Jacket Colors: Slate
• Ripcord: 1 End 810 Denier Nylon

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5293C 3PR 20 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 OR C(UL) TYPE CMG 105C FT4 CE ROHS
  Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
