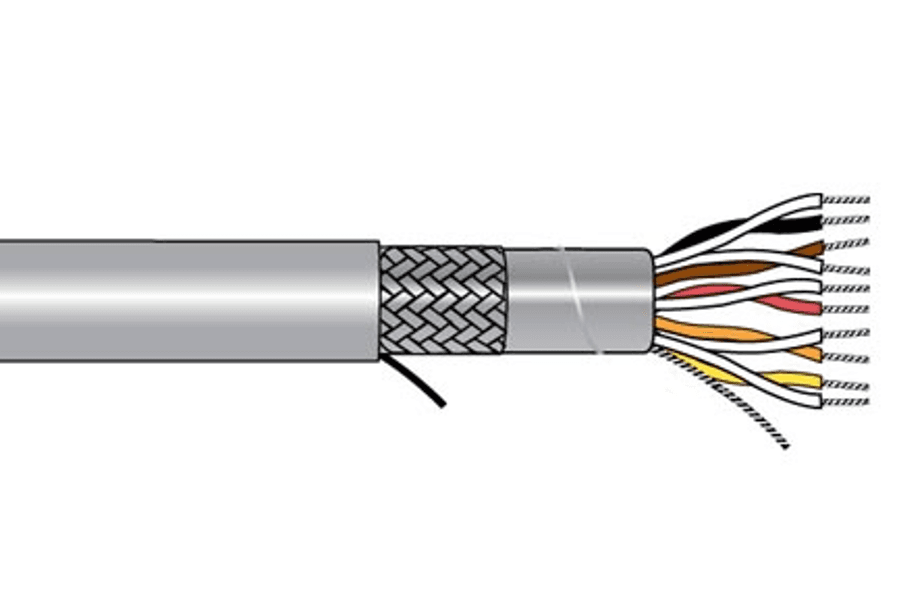

Alpha Wire 5351C SL001, Xtra Guard 1 Xtra Guard Performance Cable 7 Pair 20 AWG Shielded 300 V PVC

Part Number: 5351C SL001

Alpha Wire 5351C SL001 Xtra Guard 1 is a shielded multi-pair performance cable built for reliable signal integrity in demanding industrial and control applications. It features 7 X 1 PAIR construction using 20 (7/28) AWG Tinned Copper Stranded Conductors with PVC Insulation and a PVC Jacket. For noise reduction, it includes an overall Shield & drain with A/P/A tape plus a Tinned Copper braid at 70% coverage, Nom. Rated 300 V and marked for NEC CMG / (UL) Type CM, this cable also includes a ripcord to support easier Jacket removal during installation.

Construction:

• Component 1: 7 X 1 PAIR
• Pair construction: 2/Cond Cabled Together
• Cable assembly: 7 Components Cabled
• Core wrap: Nonwoven Polyester Tape, 20% Overlap, Min.
• Ripcord: 1 End 810 Denier Nylon

Conductors:

• Number Of Conductors: 6 Conductors
• Conductor Size: 20 AWG (American Wire Gauge)
• Conductor Stranding/type: Stranded Conductor
• Conductor Material: Tinned Copper
• Conductor (manufacturer detail): 20 (7/28) AWG Tinned Copper
• Conductor Diameter (In): 0.038

Insulation:

• Insulation Material: Pvc-Polyvinyl Chloride
• Insulation (manufacturer detail): 0.010" Wall, Nom. PVC, Semi Rigid
• Insulation Diameter (In): 0.058

Shielding:

• Shield: Yes
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & Drain
• Shield (manufacturer detail): A/P/A Tape, 20% Overlap, Min.
• Drain Wire: 20 (7/28) AWG Tinned Copper
• Braid: Tinned Copper,70% Coverage, Nom.

Twists:

• Pair twists: 8.0 Twists/foot (min)
• Cable twists: 2.8 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket (manufacturer detail): 0.063" Wall, Nom.,PVC
• Overall Diameter (In): 0.446 (0.466 Max.)
• Jacket Color(s): Slate

Color Code (Pairs):

• Color code: Alpha Wire Color Code B
• Pair 1: WHITE-BLACK
• Pair 2: WHITE-BROWN
• Pair 3: WHITE-RED
• Pair 4: WHITE-ORANGE
• Pair 5: WHITE-YELLOW
• Pair 6: WHITE-GREEN
• Pair 7: WHITE-BLUE

Ratings & Compliance:

• Voltage Rating: 300 V
• NEC rating: NEC CMG
• Fire Rating: General Purpose

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5351C 7PR 20 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C OR AWM
  2343 80C 300V OR AWM 21895 105C 300V SUN RES 60C
  OIL VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
  CE ROHS (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
