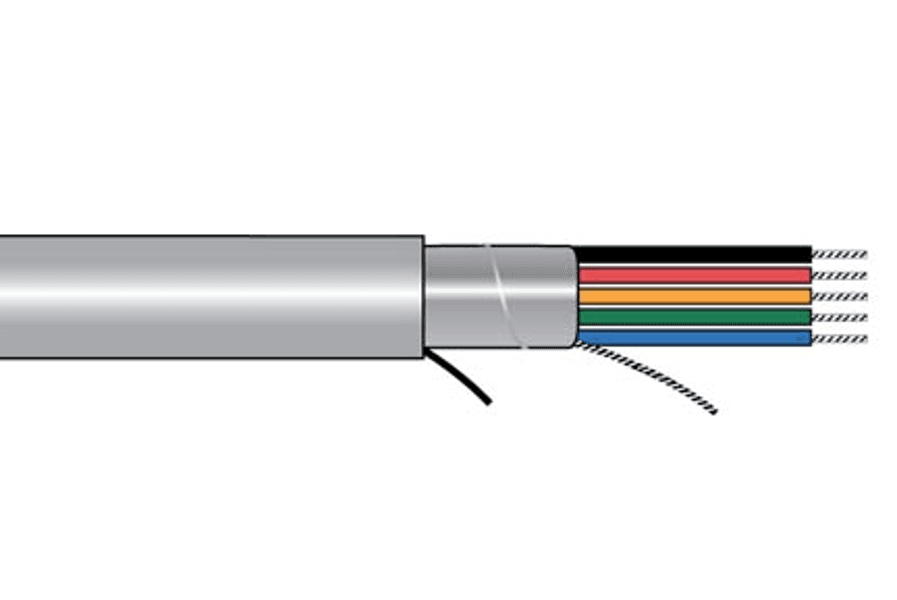

Alpha Wire 5362C SL001, Xtra Guard 1 Xtra Guard Performance Cable 2C 16 AWG Foil 300 V PVC

Part Number: 5362C SL001

Alpha Wire 5362C SL001 Xtra Guard 1 is a flexible, foil-shielded performance cable built with 2 Conductors of 16 AWG Tinned Copper and a durable PVC Insulation and Jacket. Its overall Alum/Mylar Shield with Drain Wire helps reduce noise in signal and control applications, while the Stranded Conductor design supports easier routing and installation. Rated 300 V and marked for (UL) Type CM / C(UL) Type CMG, this cable is designed for general-purpose use with additional markings for oil resistance, sun resistance, and VW-1/FT4 flame performance as printed on the Jacket. A ripcord and core wrap are included to support efficient stripping and consistent construction.

Electrical & Ratings:

• Voltage Rating: 300 V
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Conductors:

• Number Of Conductors: 2 Conductors
• Conductor Size: 16 AWG (American Wire Gauge)
• Conductor Stranding: 16 (19/.0117) AWG Tinned Copper
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter: 0.059 in

Insulation:

• Insulation Material: Pvc-Polyvinyl Chloride
• Insulation wall: 0.016" Wall, Nom. PVC
• Insulated Conductor Diameter: 0.091 in

Color Code:

• Color code: Alpha Wire Color Code D
• Conductor 1 color: Black
• Conductor 2 color: Red

Cabling & Core Wrap:

• Cable assembly: 2 Components Cabled
• Twists: 4.8 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shielding:

• Shielding: Yes
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & drain
• Shield: Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 16 (19/.0117) AWG Tinned Copper

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket wall: 0.032" Wall, Nom.,PVC
• Overall Diameter: 0.254 in (0.265 Max.)
• Jacket Color(s): Slate
• Ripcord: 1 End 810 Denier Nylon

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5362C 2C 16 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 OR C(UL) TYPE CMG 105C FT4 CE ROHS
  Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
