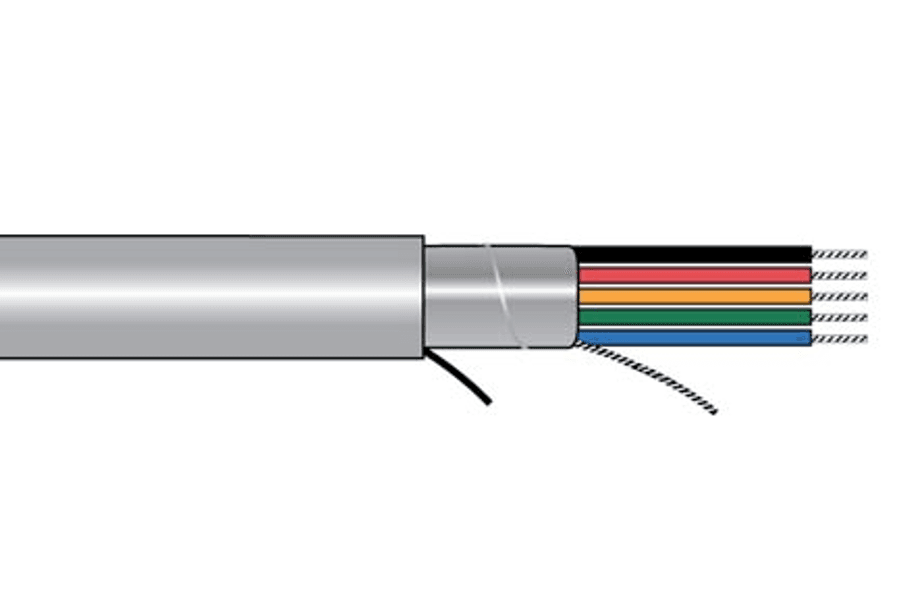

Alpha Wire 5363C SL001, Xtra Guard 1 Xtra Guard Performance Cable 3C 16 AWG Foil 300 V PVC

Part Number: 5363C SL001

Alpha Wire 5363C SL001 Xtra Guard 1 is a 3-Conductor, 16 AWG performance cable built for reliable signal and power runs in demanding industrial environments. It features Stranded Tinned Copper Conductors with PVC Insulation and a PVC Jacket, plus an Overall Foil Shield with Drain Wire to help reduce EMI/RFI. The construction includes 4.4 twists/foot (min), a nonwoven polyester tape core wrap, and a ripcord for easier Jacket removal. Rated 300 V and marked for applications including (UL) Type CM 105C Sun Res and AWM 2464 80C 300V or AWM 2517 105C 300V (see full cable print below).

Electrical & Ratings:

• Voltage Rating: 300 V
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Conductors:

• Number Of Conductors: 3 Conductors
• Conductor Size: 16 AWG (American Wire Gauge)
• Conductor Stranding: Stranded Conductor
• Conductor Material: Tinned Copper
• Conductor Construction: 16 (19/.0117) AWG Tinned Copper
• Conductor Diameter: 0.059 in

Insulation:

• Insulation Material: Pvc-Polyvinyl Chloride
• Insulation wall: 0.016" Wall, Nom. PVC
• Insulated Conductor Diameter: 0.091 in

Color Code:

• Color code standard: Alpha Wire Color Code D
• Conductor 1 color: Black
• Conductor 2 color: Red
• Conductor 3 color: White

Cabling & Core Wrap:

• Cabling: 3 Components Cabled
• Twist rate: 4.4 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shielding:

• Shield: Yes
• Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & drain
• Shield tape: Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 16 (19/.0117) AWG Tinned Copper

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket wall: 0.032" Wall, Nom.,PVC
• Overall Diameter: 0.268 (0.279 Max.) in
• Jacket colors: Slate
• Ripcord: 1 End 810 Denier Nylon

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5363C 3C 16 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 OR C(UL) TYPE CMG 105C FT4 CE ROHS
  Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
