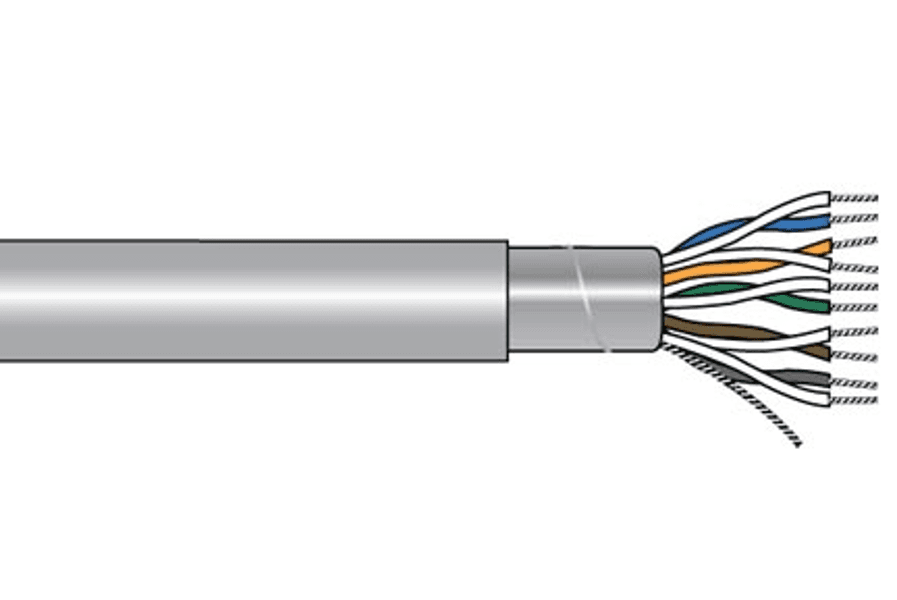

Alpha Wire 5475C SL001, Communication Control Industrial Cable 5 Pair 24 AWG Foil 300 V PVC

Part Number: 5475C SL001

Alpha Wire 5475C SL001 is a communication and control industrial cable built with 5 pairs of 24 AWG Tinned Copper Stranded Conductors and an Overall Foil Shield for improved noise rejection. It features semi-rigid PVC Insulation and a PVC Jacket, with a slate Outer Jacket Color for easy Identification in industrial and commercial installations. The Shield uses Alum/Mylar tape with an overall Shield & drain design, supporting cleaner signal transmission in electrically noisy environments. Rated 300 V and aligned with UL Listed Art 800, this cable is suited for general-purpose applications where reliable paired construction and shielding are required.

Conductors:

• Number Of Conductors: 5 pairs
• Conductor Size: 24 AWG (American Wire Gauge)
• Conductor Stranding: Stranded Conductor
• Conductor Material: Tinned Copper
• Conductor Construction: 24 (7/32) AWG Tinned Copper
• Conductor Diameter ("in"): 0.024

Insulation:

• Insulation Material: SRPVC-Semi-Rigid Polyvinyl Chloride
• Insulation description: 0.010" Wall, Nom. PVC, Semi-Rigid
• Insulation Diameter ("in"): 0.044

Pairs, Cabling, and Twist:

• Pair construction: 2/Cond Cabled Together
• Pair twists: 9.6 Twists/foot (min.)
• Cable assembly: 5 Components Cabled
• Cable twists: 4.4 Twists/foot (min.)
• Orientation: Components to be arranged from Inside Layer-to-Outside Layer

Shielding:

• Shield: Yes
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & Drain
• Shield tape: Alum/Mylar Tape, 25% Overlap (min.)
• Foil direction: Foil Facing In
• Drain Wire: 24 (7/32) AWG Tinned Copper

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket description: 0.035" Wall, Nom. PVC
• Overall Diameter ("in"): 0.270 (0.286 max.)
• Jacket Color(s): Slate

Color Code:

• Color code: Alpha Wire Color Code K
• Pair 1 color: Black-Red
• Pair 2 color: Black-White
• Pair 3 color: Black-Green
• Pair 4 color: Black-Blue
• Pair 5 color: Black-Yellow

Ratings and Compliance:

• Voltage: 300 V
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Cable Print (as marked):

• ALPHA WIRE-* P/N 5475C 5PR 24 AWG
  SHIELDED 75C (UL) TYPE CM OR AWM 2464
  OR C(UL) 60C TYPE CMG FT4 CE ROHS
  * = Factory Code
  Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.
