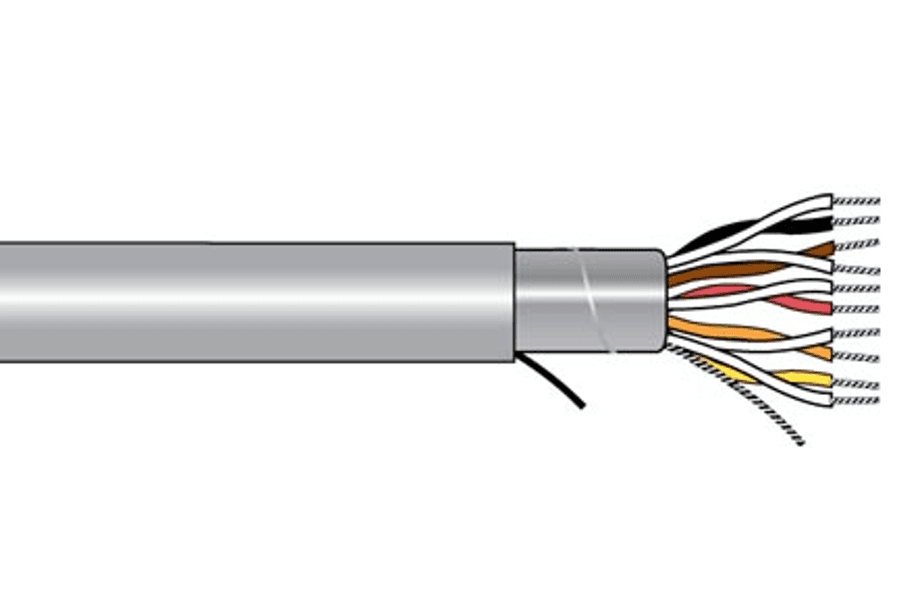

Alpha Wire 5481C SL001, Xtra Guard 1 1 Pair 22 AWG Foil 300 V PVC Jacket

Part Number: 5481C SL001

Alpha Wire 5481C SL001 Xtra Guard 1 is a 1 pair 22 AWG shielded cable designed for reliable signal integrity in industrial and general-purpose applications. It features Stranded 22 (7/30) AWG Tinned Copper Conductors with semi-rigid PVC Insulation and an Overall Foil Shield with Drain Wire to help reduce EMI/RFI. A durable PVC Jacket with a ripcord supports easier stripping, and the construction includes 8.0 Twists/foot (min) for consistent pair geometry. Rated 300 V and identified with UL/CSA markings in the factory print, this cable is built for dependable performance in demanding environments.

Conductors & Pairing:

• Number Of Conductors: 1 PAIR
• Component: 1 X 1 PAIR
• Conductor Size: 22 AWG (American Wire Gauge)
• Conductor Stranding: 22 (7/30) AWG Tinned Copper
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter (in): 0.030
• Color code: Alpha Wire Color Code B
• Pair 1 color: WHITE-BLACK

Insulation:

• Insulation Material: SRPVC-Semi-Rigid Polyvinyl Chloride
• Insulation: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulated Conductor Diameter (in): 0.050

Cabling & Core Wrap:

• Cabling: 2 Cond Cabled
• Twists: 8.0 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shielding:

• Shield present: Yes
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & Drain
• Shield: Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 22 (7/30) AWG Tinned Copper

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket: 0.032" Wall, Nom.,PVC
• Overall Diameter (in): 0.172 (0.182 Max.)
• Jacket Color(s): Slate
• Ripcord: 1 End 810 Denier Nylon

Ratings & Compliance:

• Voltage Rating: 300 V
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5481C 1PR 22 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
  CE ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
