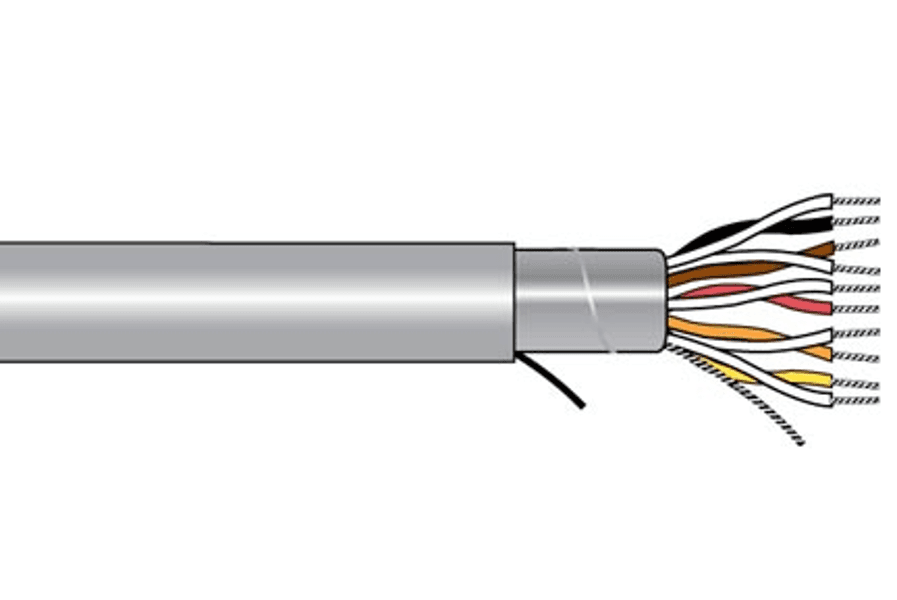

Alpha Wire 5489/19C SL001, Xtra Guard Performance Cable Xtra Guard 1 19 Pair 22 AWG Foil 300 V PVC

Part Number: 5489/19C SL001

Alpha Wire 5489/19C SL001 Xtra Guard Performance Cable is a shielded 19 pair, 22 AWG multi-pair cable designed for reliable signal integrity in industrial and control applications. It features Stranded 22 (7/30) AWG Tinned Copper Conductors with semi-rigid PVC Insulation and an overall Alum/Mylar Foil Shield with a Tinned Copper Drain Wire. A PVC Jacket with ripcord supports efficient installation, while the construction includes defined twist rates for both pairs and the overall cable. Rated 300 V and marked for applications including (UL) Type CM and AWM styles as printed on the cable.

General Specifications:

• Brand: Alpha Wire
• Part number: 5489/19C SL001
• Product family: Xtra Guard Performance Cable
• Series: Xtra Guard 1
• Number of pairs: 19 Pairs
• Conductor Size: 22 AWG (American Wire Gauge)
• Voltage Rating: 300 V
• Fire Rating: General Purpose
• NEC rating: UL Listed Art 800

Conductors:

• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Construction: 22 (7/30) AWG Tinned Copper
• Conductor Diameter: 0.030

Insulation:

• Insulation Material: SRPVC-Semi-Rigid Polyvinyl Chloride
• Insulation description: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulated Conductor Diameter: 0.050

Pairing, Cabling, and Twist:

• Pair construction: 2/Cond Cabled Together
• Pair twist: 8.0 Twists/foot (min)
• Cable assembly: 19 Components Cabled
• Cable twist: 2.0 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 20% Overlap, Min.

Shielding:

• Shielded: Yes
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & Drain
• Shield: Alum/Mylar Tape, 20% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 22 (7/30) AWG Tinned Copper

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket description: 0.032" Wall, Nom.,PVC
• Overall Diameter: 0.483 (0.508 Max.)
• Jacket Color(s): Slate
• Ripcord: 1 End 810 Denier Nylon

Color Code (Alpha Wire Color Code B):

• Pair 1: White-Black
• Pair 2: White-Brown
• Pair 3: White-Red
• Pair 4: White-Orange
• Pair 5: White-Yellow
• Pair 6: White-Green
• Pair 7: White-Blue
• Pair 8: White-Violet
• Pair 9: White-Slate
• Pair 10: Black-Brown
• Pair 11: Black-Red
• Pair 12: Black-Orange
• Pair 13: Black-Yellow
• Pair 14: Black-Green
• Pair 15: Black-Blue
• Pair 16: Black-Violet
• Pair 17: Black-Slate
• Pair 18: Brown-Red
• Pair 19: Brown-Orange

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5489/19C 19PR 22 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
  CE ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
