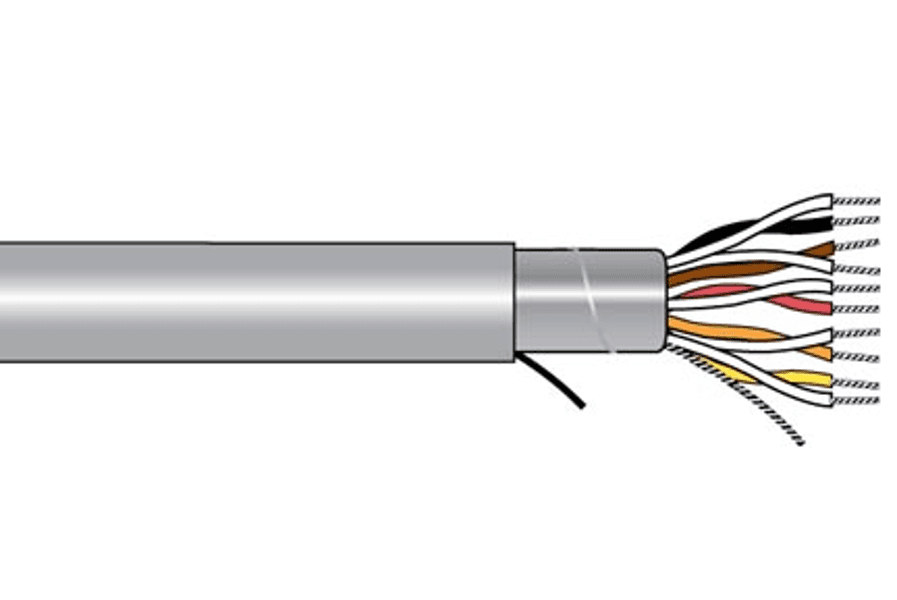

Alpha Wire 5491C SL001, Xtra Guard 1 Xtra Guard Performance Cable 1 Pair 24 AWG Foil 300 V PVC

Part Number: 5491C SL001

Alpha Wire 5491C SL001 Xtra Guard 1 is a shielded performance cable built for reliable signal integrity in demanding industrial and control applications. It features 1 pair of 24 AWG (American Wire Gauge) Stranded Tinned Copper Conductors with semi-rigid PVC Insulation and a durable PVC Jacket rated 300 V. An Overall Foil Shield (Alum/Mylar) with Drain Wire helps reduce EMI/RFI, while the 9.6 Twists/foot (min) lay supports consistent electrical performance. The cable is finished with a ripcord for easier Jacket removal and includes the manufacturer’s sequential footage print for streamlined installation and Identification.

Conductors:

• Number Of Conductors: 1 Pair
• Conductor Size: 24 AWG (American Wire Gauge)
• Conductor Construction: 24 (7/32) AWG Tinned Copper
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor

Insulation:

• Insulation Material: SRPVC-Semi-Rigid Polyvinyl Chloride
• Insulation wall: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulated Conductor Diameter (in): 0.044

Cabling & Pair Identification:

• Cabling: 2 Cond Cabled
• Twist rate: 9.6 Twists/foot (min)
• Color code: Alpha Wire Color Code B
• Pair 1 color: White-Black
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shielding:

• Shield: Yes
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & Drain
• Shield tape: Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 24 (7/32) AWG Tinned Copper

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket wall: 0.032" Wall, Nom.,PVC
• Overall Diameter (in): 0.160 (0.170 Max.)
• Jacket colors: Slate
• Ripcord: 1 End 810 Denier Nylon

Ratings & Compliance:

• Voltage Rating: 300 V
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Dimensions:

• Conductor Diameter (in): 0.024

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5491C 1PR 24 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
  CE ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
