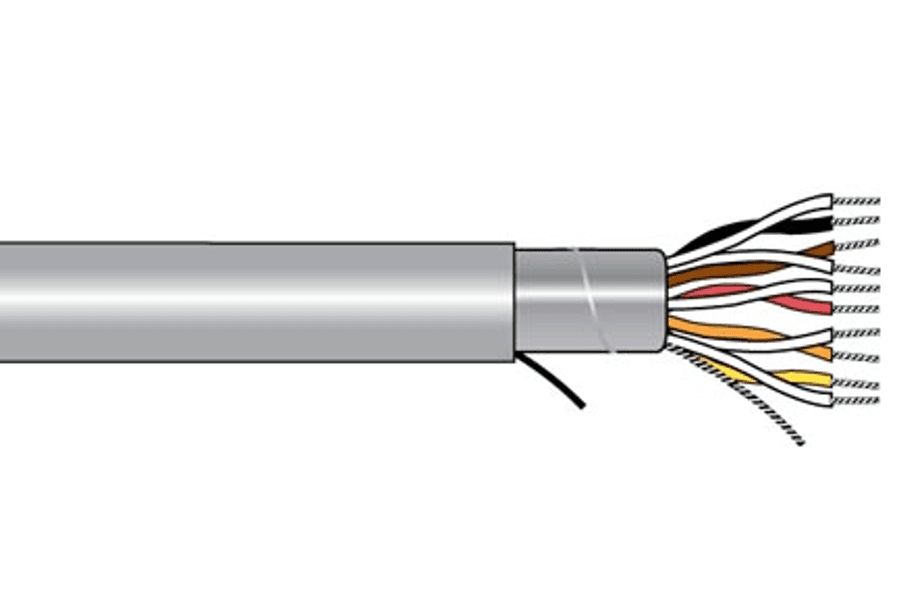

Alpha Wire 5495C SL001, Xtra Guard 1 5 Pair 24 AWG Foil 300 V PVC Jacket

Part Number: 5495C SL001

Alpha Wire 5495C SL001 Xtra Guard 1 is a 5 pair 24 AWG shielded multi-pair cable built with Stranded Tinned Copper Conductors and a PVC Jacket for dependable signal integrity. Each pair is foil shielded with Alum/Mylar and includes an overall Shield & drain to help reduce EMI/RFI in control, instrumentation, and data applications. The construction features a semi-rigid PVC Insulation, defined twist rates (9.6 Twists/foot (min) per pair and 4.4 Twists/foot (min) for the cabled core), and a ripcord for easier Jacket removal. It carries a 300 V rating and includes NEC and UL/CSA markings as shown in the factory print.

Electrical & Ratings:

• Voltage Rating: 300 V
• NEC rating: Ul Listed Art 800
• Fire Rating: General Purpose

Conductors:

• Number Of Conductors: 5 Pairs
• Conductor Size: 24 AWG (American Wire Gauge)
• Conductor Construction: 24 (7/32) AWG Tinned Copper
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter (in): 0.024

Insulation:

• Insulation Material: Srvpc-semi-rigid Polyvinyl Chloride
• Insulation description: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulation Diameter (in): 0.044

Pairs, Cabling & Twist:

• Pair construction: 2/Cond Cabled Together
• Pair twists: 9.6 Twists/foot (min)
• Cable assembly: 5 Components Cabled
• Cable twists: 4.4 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shielding:

• Shield: Yes
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & Drain
• Shield tape: Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 24 (7/32) AWG Tinned Copper

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket description: 0.032" Wall, Nom.,PVC
• Overall Diameter (in): 0.268 (0.284 Max.)
• Jacket Color(s): Slate
• Ripcord: 1 End 810 Denier Nylon

Color Code (Alpha Wire Color Code B):

• Pair 1: White-Black
• Pair 2: White-Brown
• Pair 3: White-Red
• Pair 4: White-Orange
• Pair 5: White-Yellow

Cable Print (As Marked):

• ALPHA WIRE-* P/N 5495C 5PR 24 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
  CE ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
