Alpha Wire 6053C SL001, Communication Control Industrial Cable 3PR 22 AWG Foil 300 V PVC

Part Number: 6053C SL001

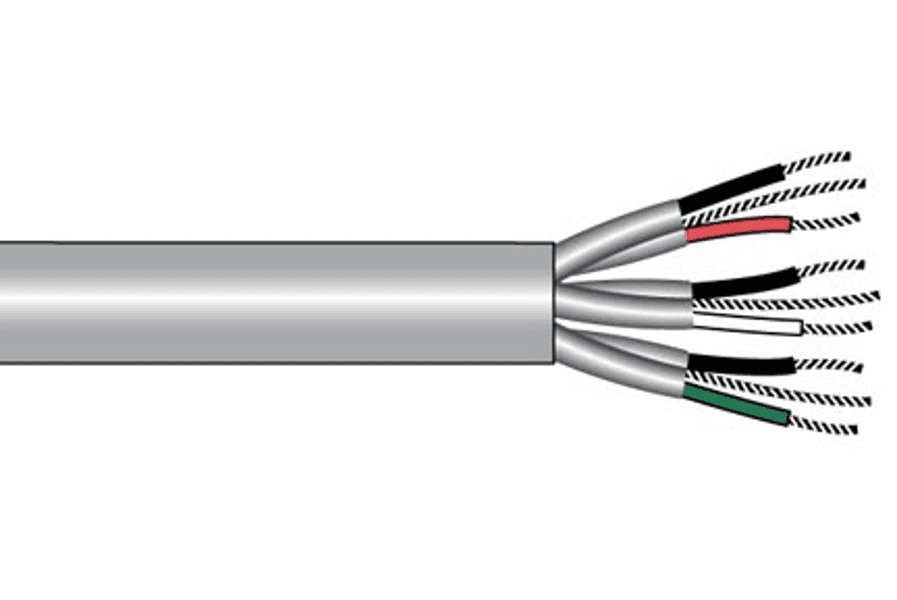

Alpha Wire 6053C SL001 is a communication and control industrial cable built with 3 pairs of 22 AWG Stranded Tinned Copper Conductors and an Overall Foil Shield with drain for improved noise rejection. It features PVC Insulation and a durable PVC Jacket, making it well-suited for industrial signal and control wiring where EMI protection is needed. The cable is foil shielded with free alum/mylar tape (foil facing in) and includes a 22 (7/30) AWG Tinned Copper Drain Wire. It is rated 300 V and carries a General Purpose Fire Rating with UL Listed Art 800 noted in the specifications.

Conductor & Pair Construction:

• Number Of Conductors: 3 pairs
• Component makeup: 3 x 1 pair
• Conductor Size: 22 AWG (American Wire Gauge)
• Conductor Stranding/material: 22 (7/30) AWG Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter: 0.030 ("in")
• Pairing: 2/Cond cabled together
• Pair twists: 6.9 Twists/foot (min.)

Insulation:

• Insulation Material: Pvc-Polyvinyl Chloride
• Insulation wall: 0.016" Wall, Nom. PVC
• Insulated Conductor Diameter: 0.062 ("in")

Shielding:

• Shielded: Yes
• Screen/Shield Type: Foil shielded - alum/mylar
• Shield Construction: Overall Shield & drain
• Shield tape: Foil free alum/mylar tape, 25% overlap (min.)
• Foil direction: Foil facing in
• Drain Wire: 22 (7/30) AWG Tinned Copper

Cabling & Core Wrap:

• Cable assembly: 3 components cabled
• Cable twists: 3.4 Twists/foot (min.)
• Orientation: Components to be arranged from Inside Layer-to-Outside Layer
• Core wrap: Clear mylar tape, 25% overlap (min.)

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket wall: 0.043" Wall, Nom. PVC
• Overall Diameter: 0.334 (0.348 max.)
• Jacket Color: Slate

Color Code:

• Color code: Alpha Wire Color Code A
• Pair 1: Black-red
• Pair 2: Black-white
• Pair 3: Black-green

Ratings & Compliance:

• Voltage Rating: 300 V
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Cable Print (As Marked):

• ALPHA WIRE-* P/N 6053C 3PR 22 AWG
  SHIELDED 75C (UL) TYPE CM OR AWM 2464 OR C(UL)
  75C TYPE CMG FT4 CE ROHS
  * = Factory Code
  Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.
