Alpha Wire 6059C SL001, Composite Cable 22 AWG 9 PAIRS Foil Shield PVC 300V

Part Number: 6059C SL001

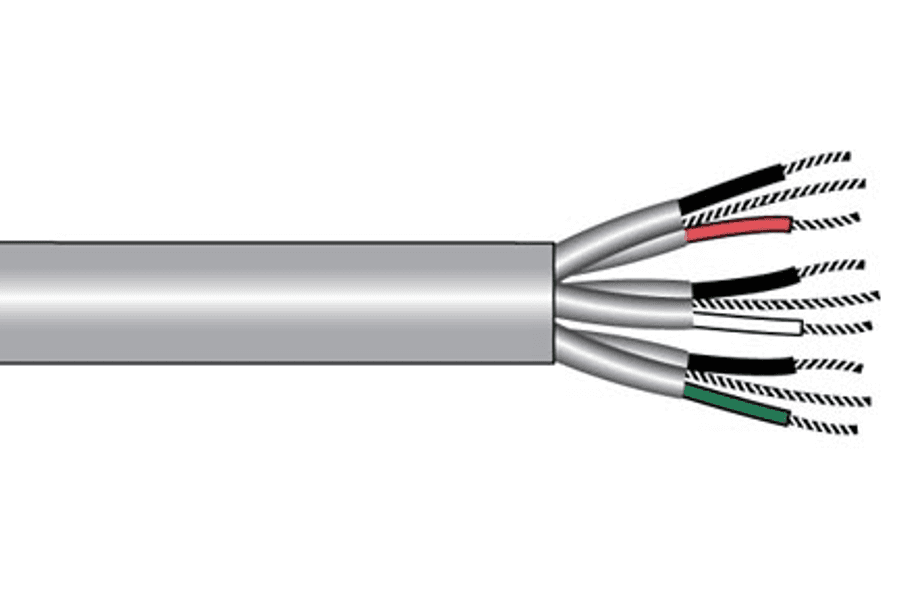

Alpha Wire 6059C SL001 is a 22 AWG composite cable built with 9 pairs of Stranded, Tinned Copper Conductors and an Overall Foil Shield for improved noise rejection. Each pair is cabled together with 6.9 Twists/foot (min.) and features a foil free alum/mylar tape Shield with 25% overlap (min.) plus a 22 (7/30) AWG Tinned Copper Drain Wire. A PVC Insulation and PVC Jacket with a slate finish provide durable protection, and the cable is marked for 300V applications per the provided title. It is NEC rated UL Listed Art 800 and includes manufacturer print indicating 75C (UL) TYPE CM OR AWM 2464 OR C(UL), plus 75C TYPE CMG FT4 CE ROHS.

Conductors & Pairs:

• Number Of Conductors: 9 Pairs
• Component build: 9 x 1 Pair
• Conductor Size: 22 AWG (American Wire Gauge)
• Conductor Stranding: 22 (7/30) AWG Tinned Copper
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter ("in"): 0.030
• Pair construction: 2/Cond Cabled Together
• Pair twists: 6.9 Twists/foot (min.)

Insulation:

• Insulation Material: Pvc-Polyvinyl Chloride
• Insulation wall: 0.016" Wall, Nom. PVC
• Insulated Conductor Diameter ("in"): 0.062

Shielding & Drain:

• Screen/Shield: Yes
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & Drain
• Shield: Foil Free Alum/Mylar Tape, 25% Overlap (min.)
• Foil direction: Foil Facing In
• Drain Wire: 22 (7/30) AWG Tinned Copper

Cabling & Core Wrap:

• Cable assembly: 9 Components Cabled
• Cable twists: 2.0 Twists/foot (min.)
• Orientation: Components to be arranged from Inside Layer-to-Outside Layer
• Core wrap: Clear Mylar Tape, 25% Overlap (min.)

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket wall: 0.053" Wall, Nom. PVC
• Overall Diameter ("in"): 0.522 (0.545 max.)
• Jacket Color(s): Slate

Color Code (Alpha Wire Color Code A):

• Pair 1: Black-Red
• Pair 2: Black-White
• Pair 3: Black-Green
• Pair 4: Black-Blue
• Pair 5: Black-Brown
• Pair 6: Black-Yellow
• Pair 7: Black-Orange
• Pair 8: Red-Green
• Pair 9: Red-White

Ratings & Compliance:

• Voltage: 300V
• NEC rating: Ul Listed Art 800
• Fire Rating: General Purpose

Cable Print (As Marked):

• ALPHA WIRE-* P/N 6059C 9PR 22 AWG
  SHIELDED 75C (UL) TYPE CM OR AWM 2464 OR C(UL)
  75C TYPE CMG FT4 CE ROHS
  * = Factory Code
  Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.
