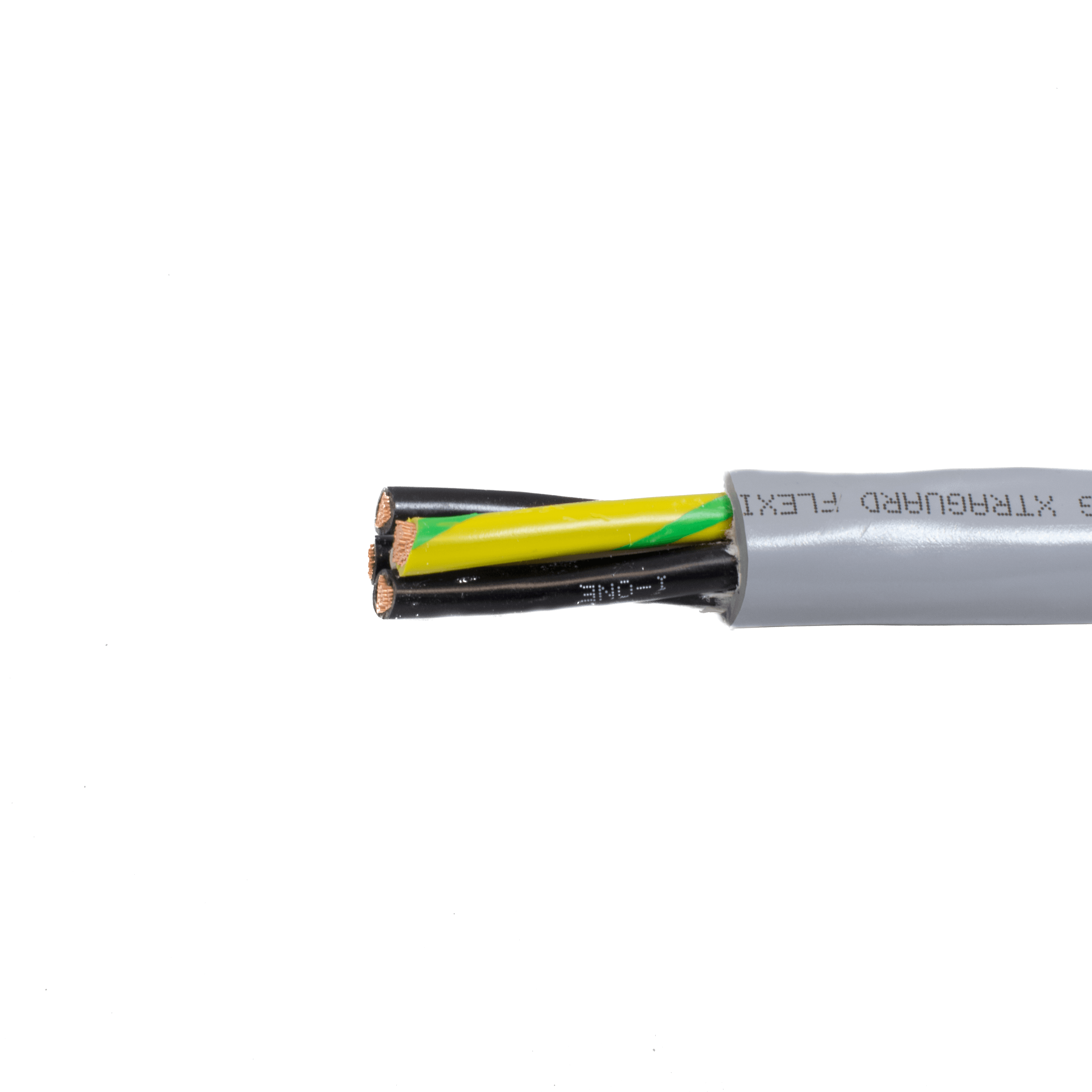

Alpha Wire 652403 SL001, XTRAGUARD FLEX Composite Cable 3C 24 AWG Unshielded PVC

Part Number: 652403 SL001

Alpha Wire 652403 SL001 XTRAGUARD FLEX composite cable is a flexible Control Cable built with 3 Conductors of 24 AWG (American Wire Gauge) Stranded Bare Copper for reliable signal and power runs. It uses nominal PVC Insulation and a nominal PVC, oil-resistant Jacket in SLATE for durability in general-purpose industrial environments. The construction includes 6.9 twists/foot (min) and a tissue tape Jacket separator with 25% overlap (min) to support consistent cabling and handling. Factory cable print and Conductor Identification are provided for easier installation and traceability.

Conductors:

• Number Of Conductors: 3 Conductors
• Conductor Size: 24 AWG (American Wire Gauge)
• Conductor Stranding/type: Stranded Conductor
• Conductor Material: Bare Copper
• Conductor Construction: 24 (7/32) AWG Bare Copper
• Conductor Diameter (in): 0.024

Insulation:

• Insulation Material: Pvc-Polyvinyl Chloride
• Insulation wall: 0.022" Wall, Nom. PVC
• Insulated Conductor Diameter (in): 0.068

Cabling & Lay:

• Component build: 3 X 1 Cond
• Cable assembly: 3 Components Cabled
• Twists: 6.9 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket wall: 0.035" Wall, Nom.,PVC, Oil Resistant
• Overall Diameter (in): 0.223+/- 0.015
• Jacket Color: SLATE
• Jacket separator: Tissue Tape, 25% Overlap, Min.

Shielding / Screen:

• Screen/Shield: No
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Indivl/Foil Side & Drain Out

Identification & Colors:

• Conductor print: Alphanumeric numbers - 1-ONE alternating and inverted
• Conductor colors: 1: BLACK #1; 2: BLACK #2; 3: YELLOW/GREEN

Ratings & Compliance:

• Fire Rating: General Purpose

Cable Marking (Factory Print):

• ALPHA WIRE-* P/N 652403 3C 24 AWG
  XTRAGUARD(R) FLEXIBLE Control Cable RU AWM 2587
  OR CRU AWM I/II A/B FT1 90C 600V
  CE ROHS (SEQ FOOTAGE)
  * = Factory Code
