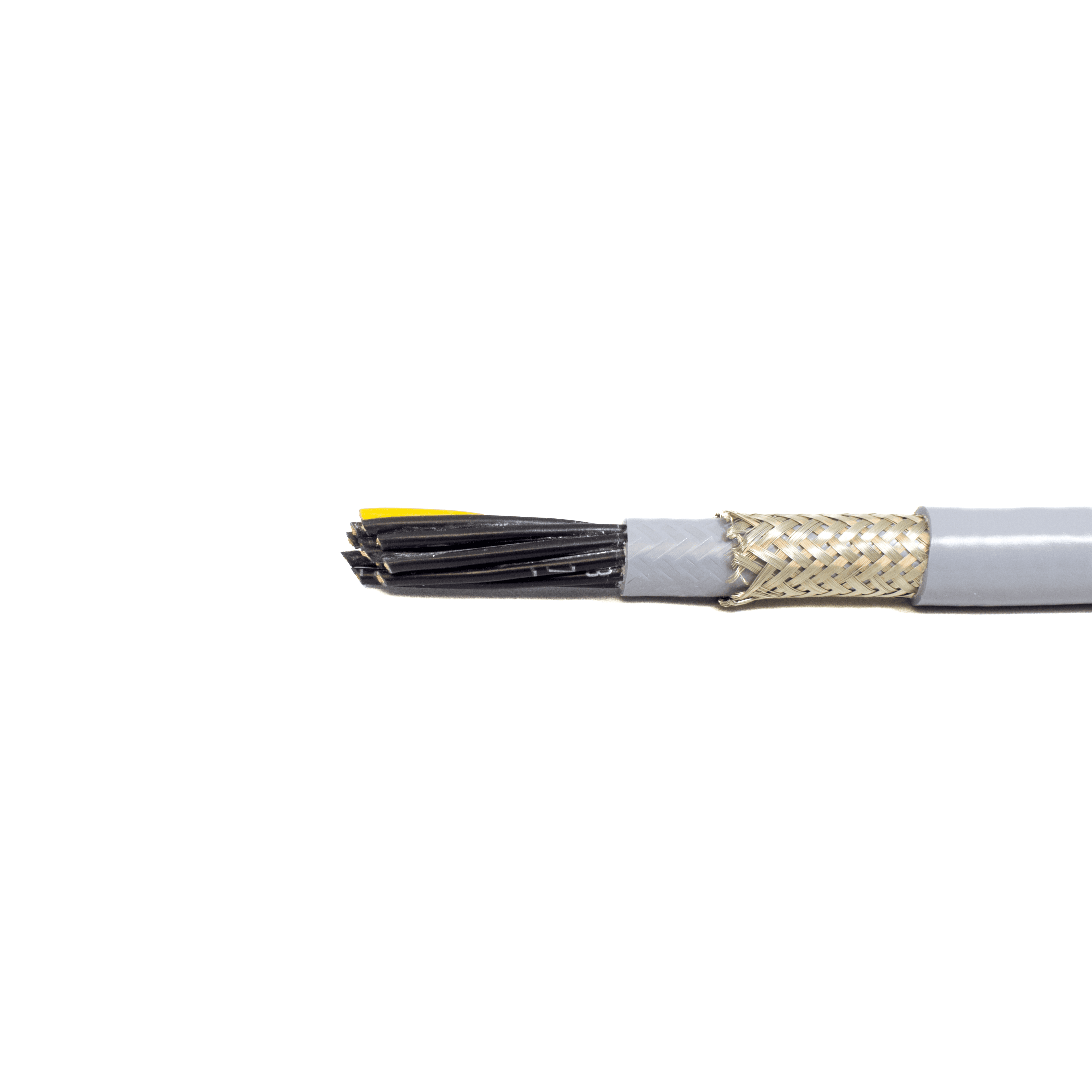

Alpha Wire 65403CY SL001, XTRA-GUARD FLEX 3C 14AWG Braid PVC Cable

Part Number: 65403CY SL001

Alpha Wire 65403CY SL001 XTRA-GUARD FLEX is a flexible Control Cable built for demanding industrial environments where durability and signal integrity matter. It features 3 Conductor Stranded 14 AWG Bare Copper Conductors with PVC Polyvinyl Chloride Insulation and an oil-resistant PVC Jacket system. For noise reduction, it is SHIELDED with a Tinned Copper Braid Shield,85% Coverage, Nom., and it is rated 600V with UL/CSA/CE approvals and RoHS compliance. The Outer Jacket is SLATE, and the cable includes sequential footage and full factory print Identification for traceability.

Electrical & Compliance:

• Voltage range: 600V
• Standards: UL/CSA/CE
• RoHS compliant: Yes

Conductors:

• Number Of Conductors: 3 Conductor
• Conductor Size: 14 AWG
• Conductor Stranding/type: Stranded
• Conductor Material: Bare Copper
• Conductor Construction: 14 (41/30) AWG Bare Copper
• Conductor Diameter (In): 0.074
• Earth/ground wires: No

Insulation:

• Insulation Material: PVC Polyvinyl Chloride
• Insulation: 0.022" Wall, Nom. PVC
• Insulated Conductor Diameter (In): 0.118
• Conductor Identification print: ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND
  INVERTED
• Conductor colors: 1 BLACK #1; 2 BLACK #2; 3 YELLOW/GREEN

Cabling:

• Cabling: 3 Cond Cabled
• Twists: 4.0 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer

Shielding:

• Shield: SHIELDED
• Shield Type: Foil Shield AL MYLAR
• Shield: Tinned Copper Braid Shield,85% Coverage, Nom.

Jacket & Mechanical Construction:

• Product type: FLEX CONT
• Jacket Material: PVC Polyvinyl Chloride
• Inner Jacket: 0.020" Wall, Nom.,PVC, Oil Resistant
• Inner Jacket Diameter (In): 0.301+/- 0.016
• Inner Jacket Color(s): SLATE
• Inner Jacket separator: Tissue Tape, 20% Overlap, Min.
• Outer Jacket: 0.042" Wall, Nom.,PVC, Oil Resistant
• Outer Jacket Diameter (In): 0.413+/- 0.024
• Outer Jacket Color(s): SLATE
• Outer Jacket separator: Tissue Tape, 20% Overlap, Min.

Cable Print Marking:

• ALPHA WIRE-* P/N 65403CY 3C 14 AWG
  XTRAGUARD(R) FLEXIBLE Control Cable RU AWM 2587
  CLASS K OR CRU AWM I/II A/B FT1 90C 600V
  CE ROHS (SEQ FOOTAGE)
  * = Factory Code
