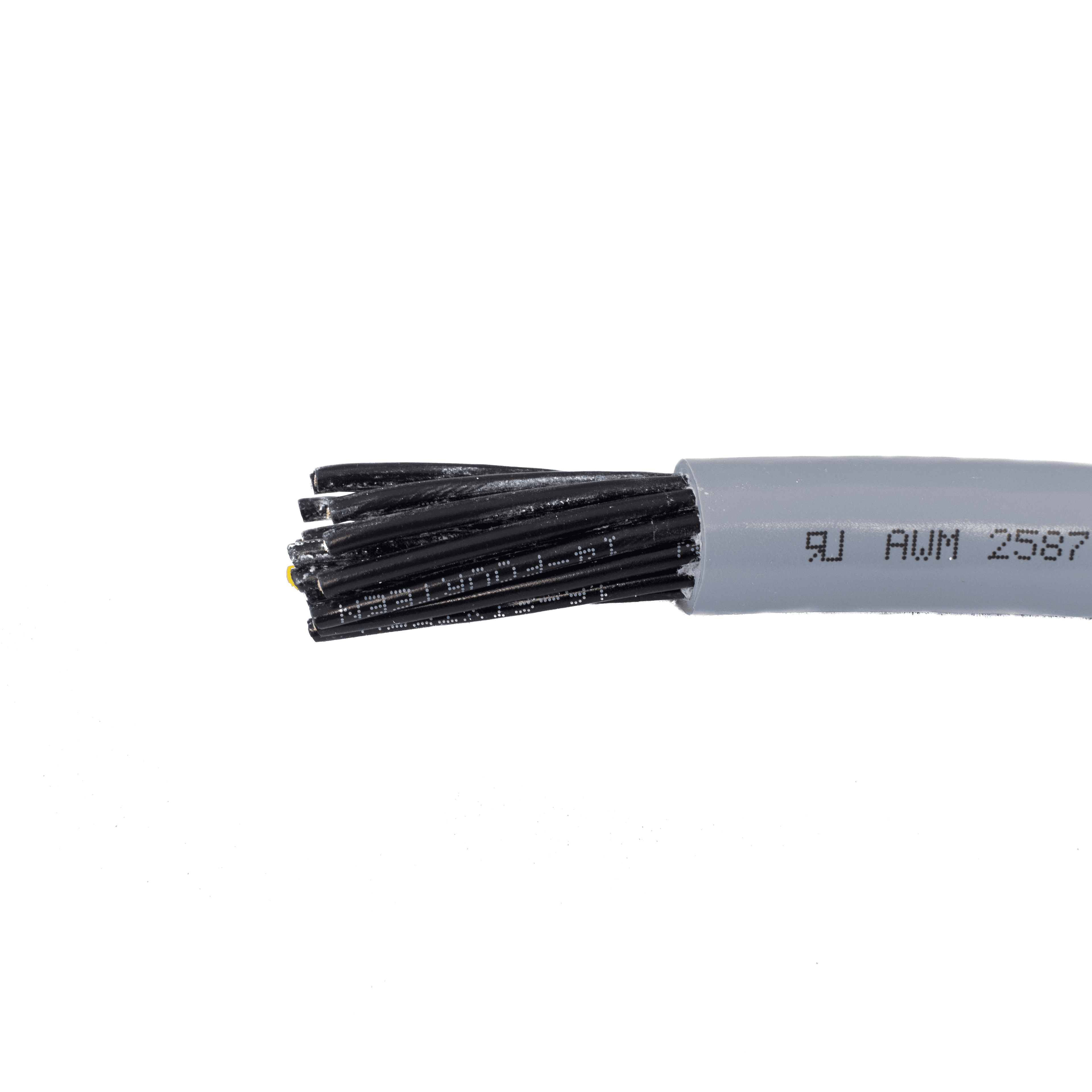

Alpha Wire 65825 SL001, Xtra Guard Flex 25C 18 AWG Unshielded 600 V PVC

Part Number: 65825 SL001

Alpha Wire 65825 SL001 Xtra Guard Flex is a flexible Control Cable built for demanding industrial wiring where durability and easy Identification matter. It features 25 Conductors of 18 AWG Stranded Bare Copper with PVC Insulation and a PVC oil-resistant Jacket in slate. This unshielded 600V cable is designed with 1.8 twists/foot (min) cabling and includes alphanumeric Conductor Identification plus sequential footage Marking in the Jacket print. It is RoHS compliant and listed to UL/CSA/CE requirements for broad acceptance across control and automation applications.

Electrical & Compliance:

• Voltage range: 600V
• Standards: UL/CSA/CE
• RoHS compliant: Yes

Conductors:

• Number Of Conductors: 25 Conductor
• Conductor Size: 18 AWG
• Conductor Stranding/type: Stranded
• Conductor Material: Bare Copper
• Conductor Construction: 18 (16/30) AWG Bare Copper
• Conductor Diameter: 0.047 in
• Earth/ground wires: No

Insulation:

• Insulation Material: PVC-Polyvinyl Chloride
• Insulation wall: 0.022" Wall, Nom. PVC
• Insulated Conductor Diameter: 0.091 in
• Conductor print: ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND
  INVERTED

Conductor Identification (Colors):

• 1: Black #1
• 2: Black #2
• 3: Black #3
• 4: Black #4
• 5: Black #5
• 6: Black #6
• 7: Black #7
• 8: Black #8
• 9: Black #9
• 10: Black #10
• 11: Black #11
• 12: Black #12
• 13: Black #13
• 14: Black #14
• 15: Black #15
• 16: Black #16
• 17: Black #17
• 18: Black #18
• 19: Black #19
• 20: Black #20
• 21: Black #21
• 22: Black #22
• 23: Black #23
• 24: Black #24
• 25: Yellow/Green

Cabling:

• Component count: 25 x 1 Cond
• Cable assembly: 25 components cabled
• Twists: 1.8 twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer

Shielding:

• Shield: Unshielded

Jacket:

• Jacket Material: PVC-Polyvinyl Chloride
• Jacket wall: 0.050" Wall, Nom.,PVC, Oil Resistant
• Jacket Color: Slate
• Overall Diameter: 0.666+/- 0.037 in
• Jacket separator: Tissue Tape, 25% Overlap, Min.

Product Type:

• Type: Flex Cont

Jacket Marking (Factory Print):

• ALPHA WIRE-* P/N 65825 25C 18 AWG
  XTRAGUARD(R) FLEXIBLE Control Cable RU AWM 2587
  CLASS K OR CRU AWM I/II A/B FT1 90C 600V
  CE ROHS (SEQ FOOTAGE)
  * = Factory Code
