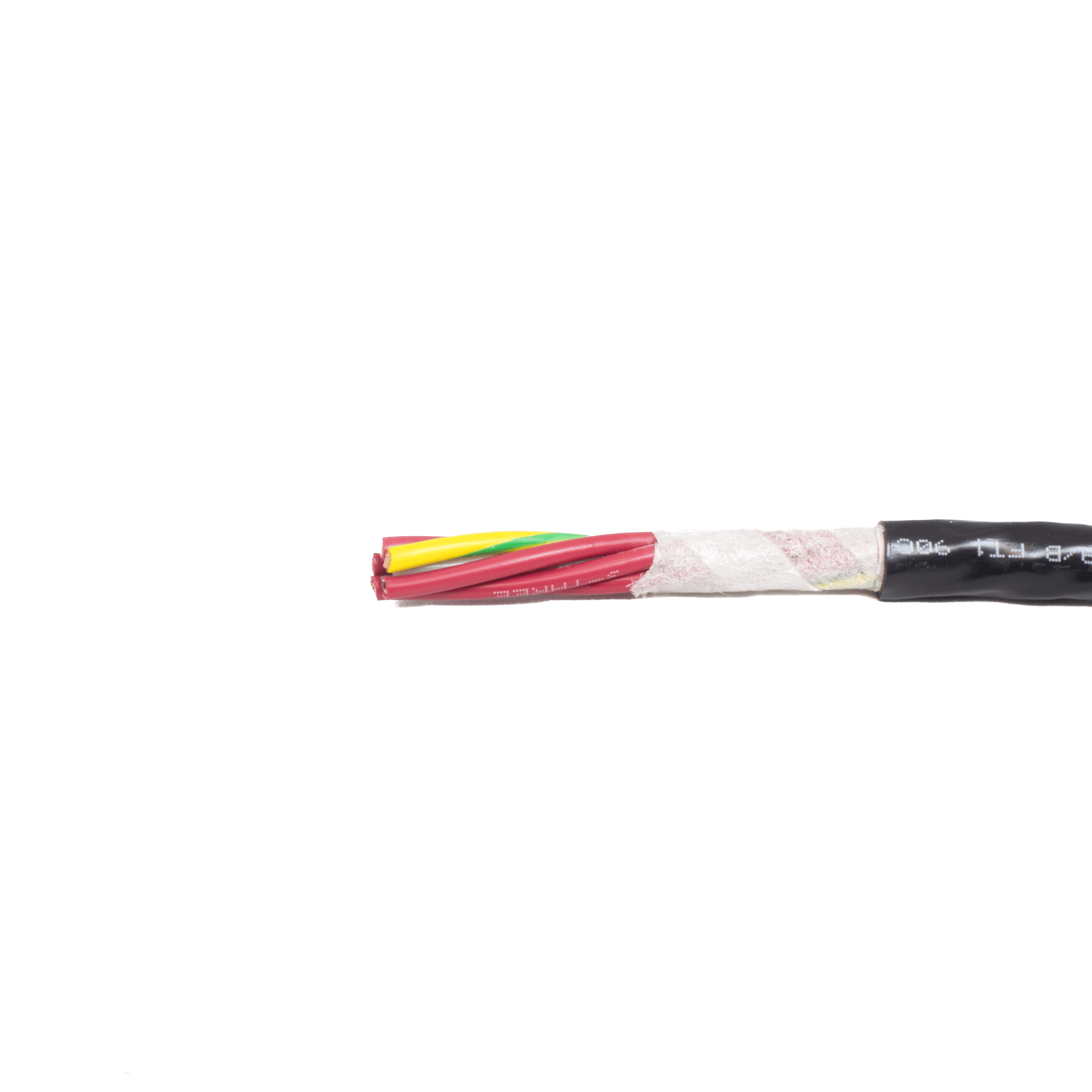

Alpha Wire 852605 BK001, XTRAGUARD FLEX Composite Cable 5C 26 AWG Unshielded PVC

Part Number: 852605 BK001

Alpha Wire 852605 BK001 XTRAGUARD FLEX composite cable is built for continuous-flex control applications where durability and consistent performance matter. It features 5 Conductors of 26 AWG (19/38) Stranded Bare Copper with PVC Insulation and a black, oil-resistant PVC Jacket. The construction includes a 6.9 Twists/foot (min) cabling lay, plus tape wraps to help maintain core stability during motion. Factory cable print includes RU AWM 2587 constant flexing, FT1, 90C, and 600V markings for clear Identification in the field.

Conductors:

• Number Of Conductors: 5 Conductors
• Conductor configuration: 5 X 1 Cond
• Conductor Size: 26 AWG (American Wire Gauge)
• Conductor Stranding: 26 (19/38) AWG Bare Copper
• Conductor Material: Bare Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter (in): 0.020

Insulation:

• Insulation Material: PVC-Polyvinyl Chloride
• Insulation wall: 0.022" Wall, Nom. PVC
• Insulated Conductor Diameter (in): 0.064

Conductor Identification:

• Conductor print: Alphanumeric numbers - 1-one alternating and inverted
• Conductor colors: 1: Red #1; 2: Red #2; 3: Red #3; 4: Red #4; 5: Yellow/Green/Green

Cabling & Core Wrap:

• Cable assembly: 5 Components Cabled
• Twists: 6.9 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Remay Tape, 25% Overlap, Min.
• Jacket separator: Tissue Tape, 25% Overlap, Min.

Jacket:

• Jacket Material: PVC-Polyvinyl Chloride
• Jacket wall: 0.035" Wall, Nom.,PVC, Oil Resistant
• Jacket Color: Black
• Overall Diameter (in): 0.268+/- 0.018

Shielding / Screen:

• Screen/Shield: No
• Screen/Shield Type: Foil shielded - Alum/Mylar
• Shield Construction: Indivl/Foil Side & Drain Out

Ratings & Compliance (as provided):

• Fire Rating: General Purpose

Factory Cable Print (exact):

• ALPHA WIRE-* P/N 852605 5C 26 AWG
  XTRAGUARD(R) Continuous Flex Control Cable
  RU AWM 2587 CONSTANT FLEXING OR CRU
  AWM I/II A/B FT1 90C 600V
  CE ROHS (SEQ FOOTAGE)
  * = Factory Code
