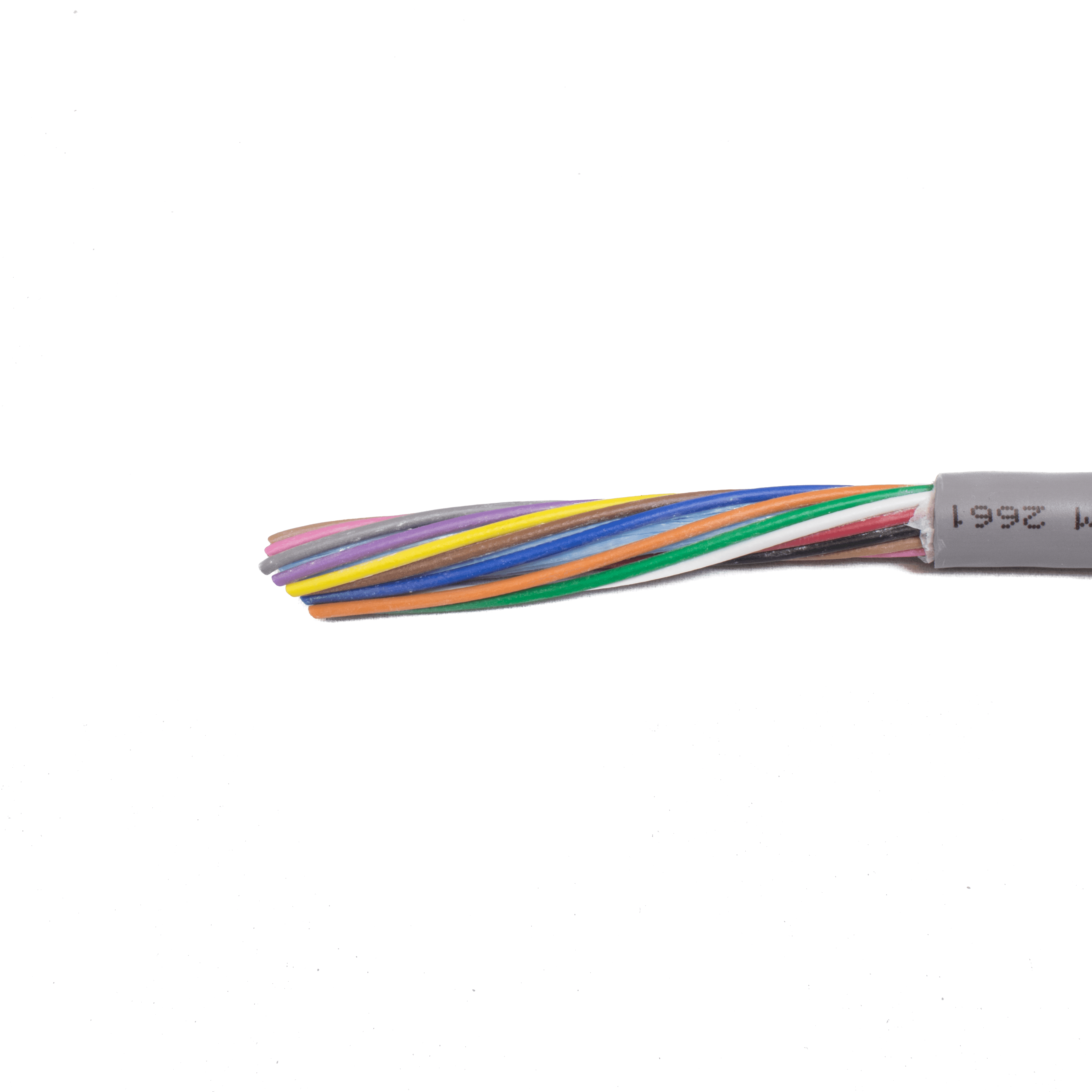

Alpha Wire 861605 SL001, XTRAGUARD FLEX Composite Cable 5C 16 AWG Unshielded PVC

Part Number: 861605 SL001

Alpha Wire 861605 SL001 XTRAGUARD FLEX composite cable is built for continuous-flex data and control applications where durability and consistent performance matter. It features 5 Conductors of 16 AWG (American Wire Gauge) Tinned Copper with Stranded construction, insulated and jacketed in PVC-polyvinyl chloride. For noise reduction, it includes a foil shielded - alum/mylar screen with indivl/foil side & drain out construction, plus a nonwoven polyester tape core wrap. The slate PVC Jacket is printed with full UL/CSA and application markings exactly as shown, supporting Identification and compliance needs in the field.

Conductors:

• Number Of Conductors: 5 Conductors
• Conductor Size: 16 AWG (American Wire Gauge)
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Construction: 16 (65/34) AWG Tinned Copper
• Conductor Diameter (In): 0.056

Insulation:

• Insulation Material: PVC-polyvinyl chloride
• Insulation Wall: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulated Conductor Diameter (In): 0.076

Shielding & Core Wrap:

• Screen/Shield: Yes
• Screen/Shield Type: Foil shielded - alum/mylar
• Shield Construction: Indivl/foil side & drain out
• Core Wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Cabling:

• Cable Assembly: 5 Components Cabled
• Twists: 4.8 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer

Jacket:

• Jacket Material: PVC-polyvinyl chloride
• Jacket Wall: 0.043" Wall, Nom.,PVC
• Overall Diameter (In): 0.298+/- 0.012
• Jacket Color(s): Slate

Color Code:

• Color Code Standard: Alpha Wire Color Code D
• Conductor 1 Color: Black
• Conductor 2 Color: Red
• Conductor 3 Color: White
• Conductor 4 Color: Green
• Conductor 5 Color: Orange

Ratings & Compliance:

• Fire Rating: General Purpose

Cable Print (As Marked):

• ALPHA WIRE-* P/N 861605 5C 16 AWG
  XTRAGUARD(R) Continuous Flex DATA CABLE
  (UL) TYPE PLTC 105C OR TYPE CM 105C SUN RES OR
  C(UL) CMG OR AWM 2661 105C 300V --- LLXXXXXX
  CSA AWM I/II A/B FT4 105C 300V CE
  ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
