Alpha Wire 86502CY SL001, XTRA-GUARD FLEX Cable 26AWG 2 Pairs Shielded PVC

Part Number: 86502CY SL001

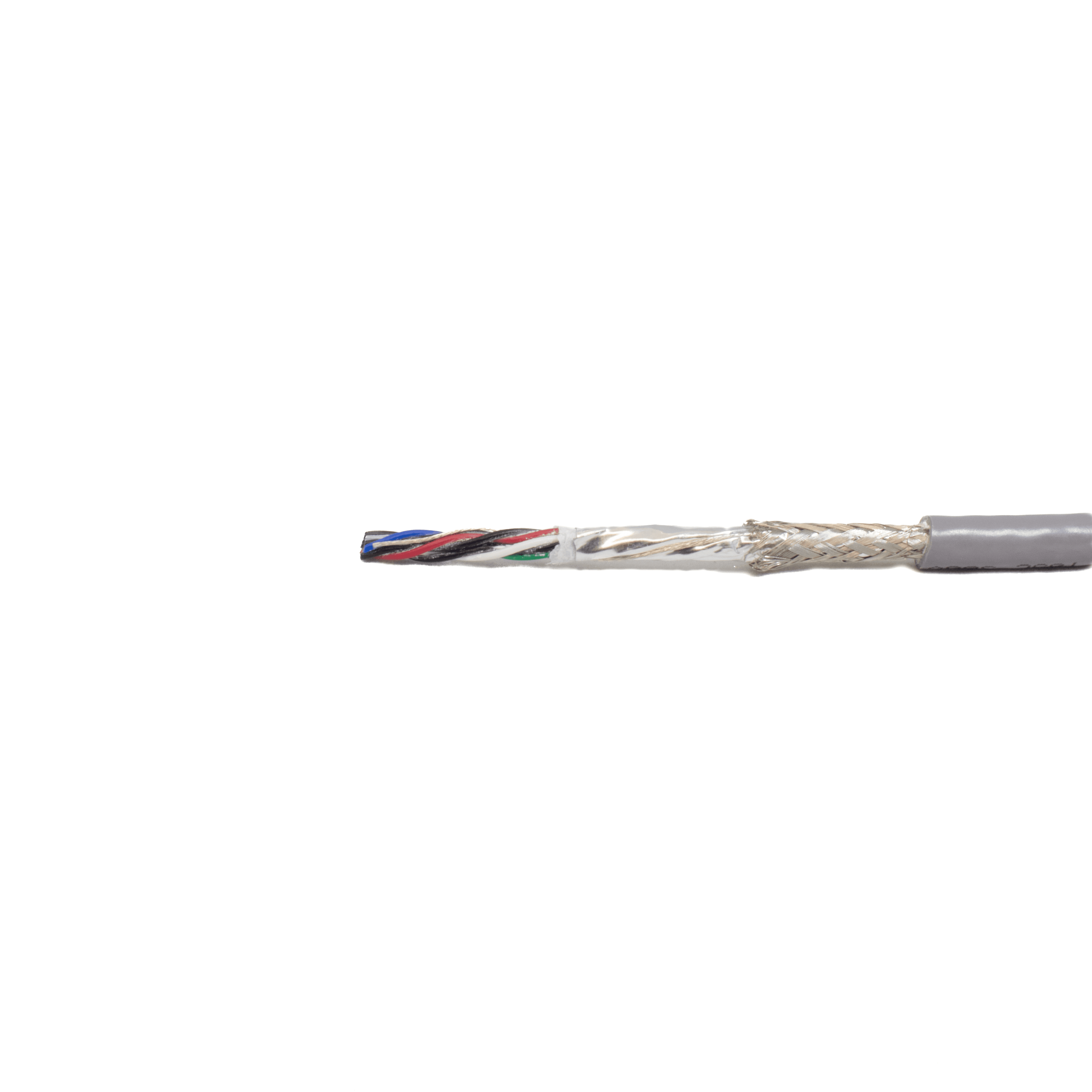

Alpha Wire 86502CY SL001 XTRA-GUARD FLEX is a shielded continuous-flex data cable built with 26 AWG finely Stranded Tinned Copper Conductors for reliable signal integrity in dynamic applications. It features 2 pairs (2 X 1 PAIR) with Alpha Wire Color Code A and controlled twist rates to help reduce noise and crosstalk. A braid over Foil Shield (Tinned Copper braid over aluminum/mylar tape) provides robust EMI protection, while the PVC Jacket in slate offers durable mechanical protection. The cable is rated to UL/CSA/CE requirements and supports 300V OR 300/500V, with Jacket print markings shown below exactly as printed.

Conductors

• Number Of Conductors: 2 PAIR
• Conductor Size: 26 AWG
• Conductor Stranding/type: Finely Stranded; 26 (7/34) AWG Tinned Copper
• Conductor Material: Tinned or coated copper
• Earth/ground wires: No
• Conductor Diameter (In): 0.019

Insulation

• Insulation Material: PVC, Semi Rigid
• Insulation wall: 0.010" Wall, Nom.
• Insulated Conductor Diameter (In): 0.039

Pairs, Cabling, and Twist

• Component makeup: 2 X 1 PAIR
• Pair construction: 2/Cond Cabled Together
• Pair twists: 12.0 Twists/foot (min)
• Cable assembly: 2 Components Cabled
• Cable assembly twists: 8.0 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer

Color Code

• Color code: Alpha Wire Color Code A
• Pair 1 color: Black-Red
• Pair 2 color: Black-White

Shielding

• Shielding: Shielded
• Shield Type: Braid over Foil Shield
• Shield tape: Flex Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing Out
• Drain Wire: 26 (7/34) AWG Tinned Copper
• Braid: Tinned Copper,85% Coverage, Nom.

Wraps and Tapes

• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.
• Jacket separator: Tissue Tape, 25% Overlap, Min.

Jacket

• Jacket Material: PVC-Polyvinyl Chloride
• Jacket wall: 0.040" Wall, Nom.,PVC
• Overall Diameter (In): 0.244+/- 0.013
• Jacket Color(s): Slate

Ratings and Compliance

• Product type: Flex Cont
• Standards: UL/CSA/CE
• Voltage range: 300V OR 300/500V

Cable Print (as marked)

• ALPHA WIRE-* P/N 86502CY 2PR 26 AWG
  XTRAGUARD(R) Continuous Flex DATA CABLE
  (UL) 105C TYPE CM SUN RES OR C(UL) CMG OR
  AWM 2661 105C 300V --- LLXXXXXX
  CSA AWM I/II A/B FT4 105C 300V CE
  ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
