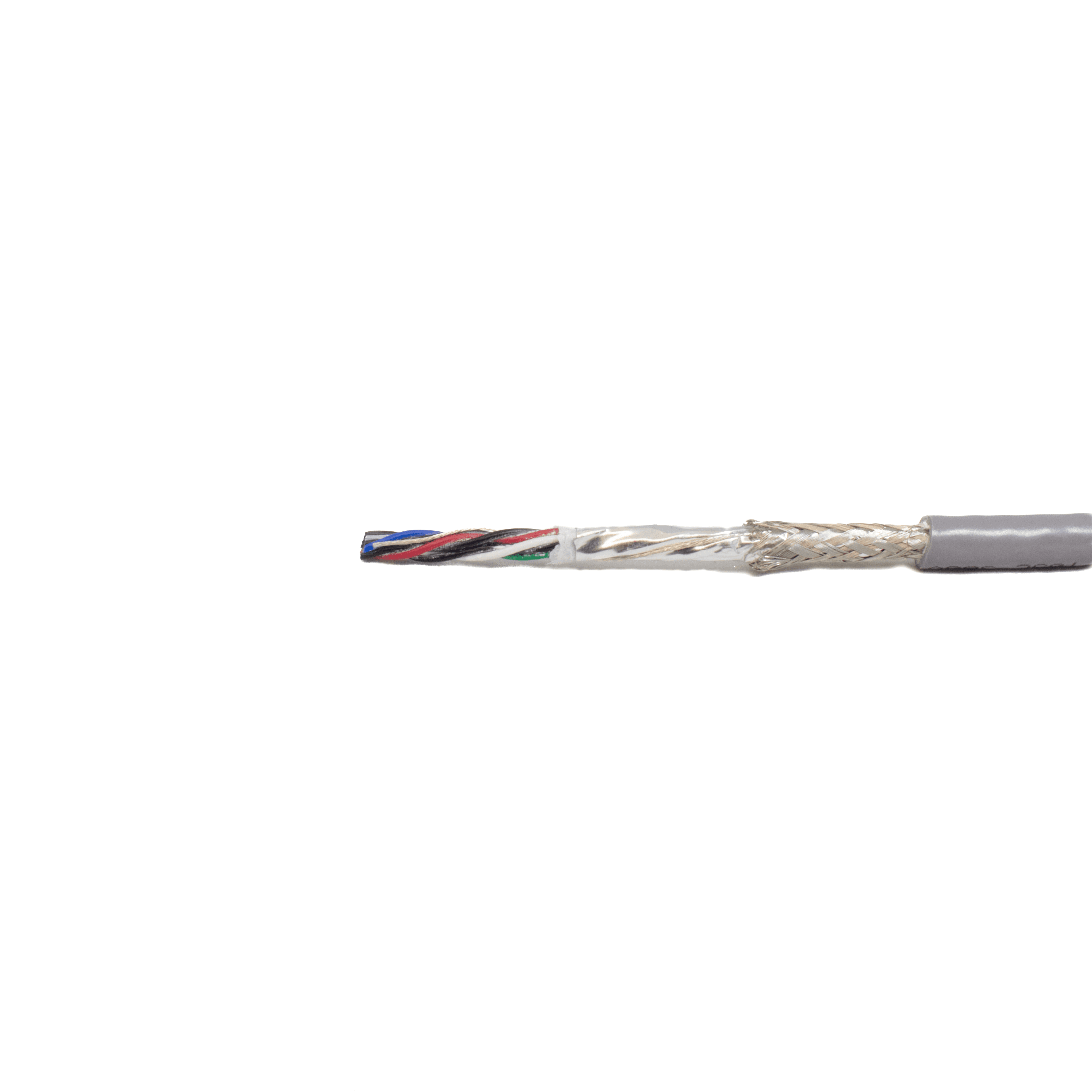

Alpha Wire 86503CY SL001, Xtra Guard Xtra Guard Flex Cable 3 Pair 26 AWG Shielded 300 V PVC

Part Number: 86503CY SL001

Alpha Wire 86503CY SL001 Xtra Guard Xtra Guard Flex Cable is a shielded 3 pair 26 AWG continuous-flex data cable designed for reliable signal integrity in motion applications. It features finely Stranded 26 (7/34) AWG Tinned Copper Conductors with PVC Insulation and a PVC Jacket in slate for durable, flexible routing. For noise protection, it uses a braid over Foil Shield with a Flex Alum/Mylar tape layer, a 26 (7/34) AWG Tinned Copper Drain Wire, and Tinned Copper braid at 85% coverage (nom.). It is rated 300V OR 300/500V and listed to UL/CSA/CE standards.

General Specifications:

• Product type: Flex cont
• Number Of Conductors: 3 pair
• Conductor Size: 26 AWG
• Conductor Type: Finely Stranded
• Conductor Material: Tinned or coated copper
• Earth/ground wires: No
• Shielding: Shielded
• Shield Type: Braid over Foil Shield
• Standards: UL/CSA/CE
• Voltage range: 300V OR 300/500V

Conductor & Insulation:

• Conductor: 26 (7/34) AWG Tinned Copper
• Conductor Diameter (in): 0.019
• Insulation: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulation Diameter (in): 0.039

Pairs, Cabling & Twist:

• Component makeup: 3 X 1 PAIR
• Pair construction: 2/Cond Cabled Together
• Pair twists: 12.0 Twists/foot (min)
• Cable assembly: 3 Components Cabled
• Cable assembly twists: 8.0 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Color Code:

• Color code: Alpha Wire Color Code A
• Pair 1: BLACK-RED
• Pair 2: BLACK-WHITE
• Pair 3: BLACK-GREEN

Shield Construction:

• Shield: Flex Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing Out
• Drain Wire: 26 (7/34) AWG Tinned Copper
• Braid: Tinned Copper,85% Coverage, Nom.

Jacket:

• Jacket Material: PVC-Polyvinyl Chloride
• Jacket: 0.040" Wall, Nom.,PVC
• Overall Diameter (in): 0.254+/- 0.014
• Jacket Color(s): Slate
• Jacket separator: Tissue Tape, 25% Overlap, Min.

Cable Print:

• ALPHA WIRE-* P/N 86503CY 3PR 26 AWG
  XTRAGUARD(R) Continuous Flex DATA CABLE
  (UL) 105C TYPE CM SUN RES OR C(UL) CMG OR
  AWM 2661 105C 300V --- LLXXXXXX
  CSA AWM I/II A/B FT4 105C 300V CE
  ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
