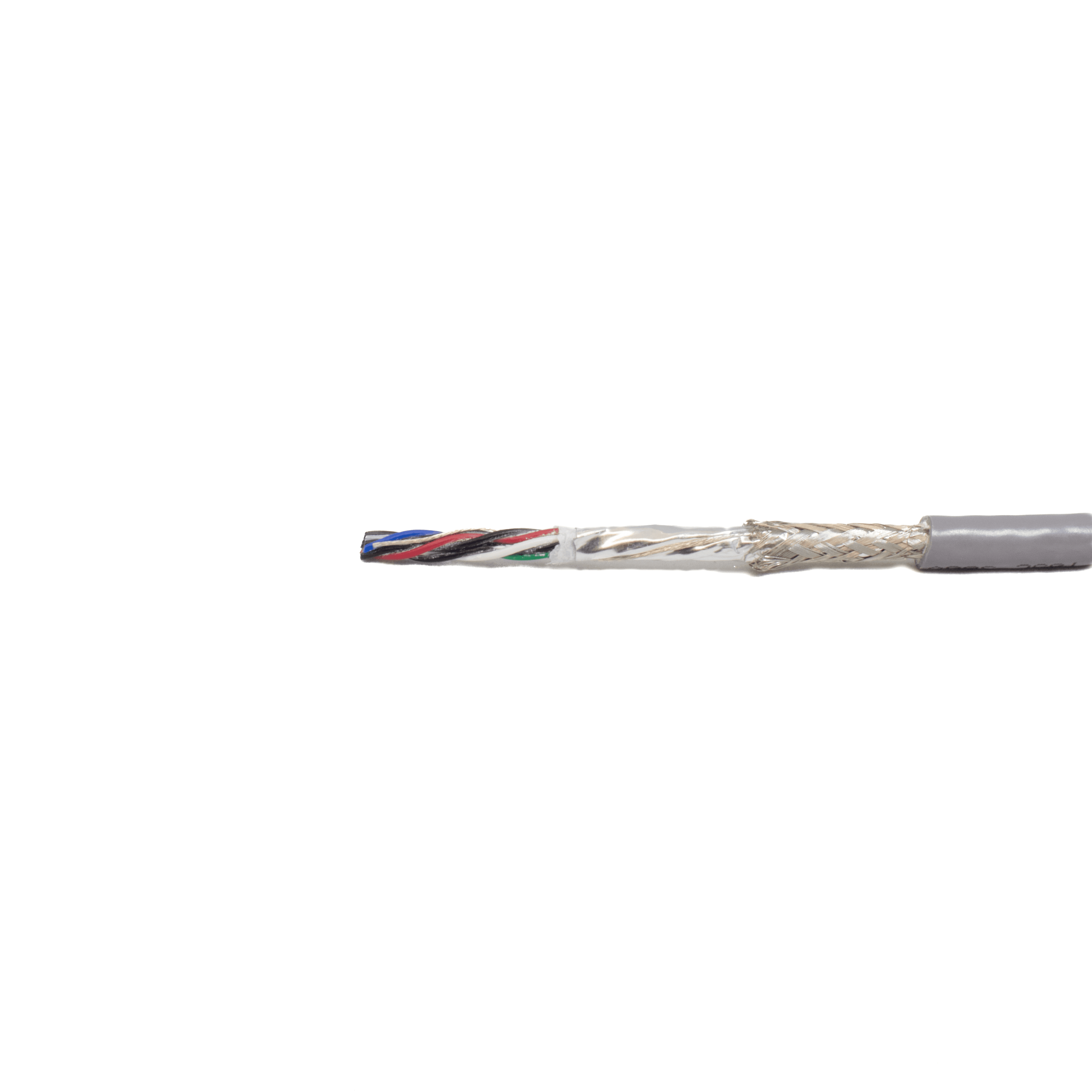

Alpha Wire 86504CY SL001, Xtra Guard Xtra Guard Flex Cable 4 Pair 26 AWG Shielded 300 V PVC

Part Number: 86504CY SL001

Alpha Wire 86504CY SL001 Xtra Guard Xtra Guard Flex Cable is a shielded 4 pair 26 AWG continuous-flex data cable designed for reliable signal integrity in dynamic applications. It features finely Stranded 26 (7/34) AWG Tinned Copper Conductors with PVC Insulation and a durable PVC Jacket in SLATE. For noise protection, the construction uses a braid over Foil Shield with a 26 (7/34) AWG Tinned Copper Drain Wire and Tinned Copper braid at 85% coverage, Nom. Rated for 300V OR 300/500V and built to UL/CSA/CE requirements, it also includes defined twist rates for both pairs and overall cabling.

Key Specifications:

• Product Type: Flex Cont
• Number Of Conductors: 4 Pair
• Conductor Size: 26 AWG
• Conductor Type: Finely Stranded
• Conductor Material: Tinned Or Coated Copper
• Shielding: Shielded
• Shield Type: Braid Over Foil Shield
• Jacket Material: PVC-Polyvinyl Chloride
• Earth/Ground Wires: No
• Standards: UL/CSA/CE
• Voltage Range: 300V OR 300/500V

Construction:

• Component 1: 4 X 1 Pair
• Conductor: 26 (7/34) AWG Tinned Copper
• Conductor Diameter (In): 0.019
• Insulation: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulation Diameter (In): 0.039
• Pair: 2/Cond Cabled Together
• Pair Twists: 12.0 Twists/foot (min)
• Cable Assembly: 4 Components Cabled
• Cable Assembly Twists: 6.9 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core Wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shield:

• Shield: Flex Alum/Mylar Tape, 25% Overlap, Min.
• Foil Direction: Foil Facing Out
• Drain Wire: 26 (7/34) AWG Tinned Copper
• Braid: Tinned Copper,85% Coverage, Nom.

Jacket:

• Jacket: 0.040" Wall, Nom.,PVC
• Overall Diameter (In): 0.272+/- 0.015
• Jacket Color(s): SLATE
• Jacket Separator: Tissue Tape, 25% Overlap, Min.

Pair Identification (Alpha Wire Color Code A):

• Pair 1: BLACK-RED
• Pair 2: BLACK-WHITE
• Pair 3: BLACK-GREEN
• Pair 4: BLACK-BLUE

Cable Print:

• ALPHA WIRE-* P/N 86504CY 4PR 26 AWG
  XTRAGUARD(R) Continuous Flex DATA CABLE
  (UL) 105C TYPE CM SUN RES OR C(UL) CMG OR
  AWM 2661 105C 300V --- LLXXXXXX
  CSA AWM I/II A/B FT4 105C 300V CE
  ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
