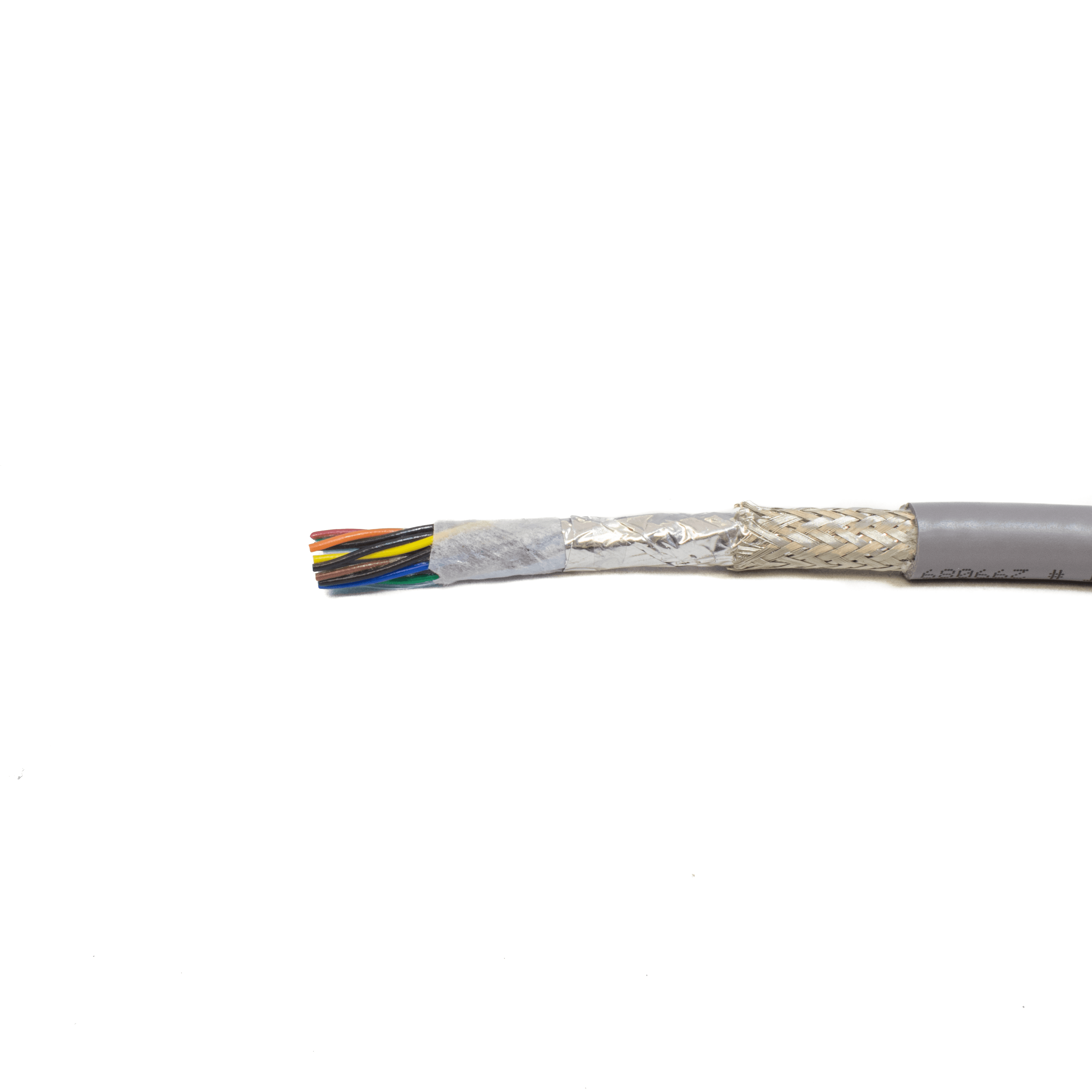

Alpha Wire 86602CY SL001, XTRA-GUARD FLEX Cable 2PR 24AWG Shielded PVC

Part Number: 86602CY SL001

Alpha Wire 86602CY SL001 XTRA-GUARD FLEX is a shielded, continuous-flex data cable built with Tinned Copper Stranded Conductors and an overall foil and Braid Shield for enhanced noise protection. It features 2PR 24 AWG construction with 24 (10/34) AWG Conductors, SRPVC semi-rigid PVC Insulation, and a durable PVC Jacket in slate. The Shield design includes Flex Alum/Mylar tape (foil facing out), a 26 (7/34) AWG Tinned Copper Drain Wire, and a Tinned Copper braid with 85% coverage (nom.). Designed for General Purpose use, it carries UL listed multi purpose and CM/CMG-related markings as shown in the factory print.

Conductor & Pair Construction:

• Number of pairs: 2PR
• Component build: 2 X 1 PAIR
• Conductor Size: 24 AWG (American Wire Gauge)
• Conductor Stranding: 24 (10/34) AWG Tinned Copper
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter (in): 0.024
• Pairing: 2/Cond cabled together
• Pair twists: 9.6 Twists/foot (min)
• Cable assembly: 2 components cabled
• Cable assembly twists: 8.0 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer

Insulation:

• Insulation Material: SRPVC-semi-rigid polyvinyl chloride
• Insulation description: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulation Diameter (in): 0.044

Shielding:

• Shielded: Yes
• Shield Construction: Overall foil & braid
• Screen/Shield Type: Braid over Foil Shield
• Shield tape: Flex Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing Out
• Drain Wire: 26 (7/34) AWG Tinned Copper
• Braid: Tinned Copper,85% Coverage, Nom.

Cabling, Wraps & Separators:

• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.
• Jacket separator: Tissue Tape, 25% Overlap, Min.

Jacket:

• Jacket Material: PVC-polyvinyl chloride
• Jacket wall: 0.040" Wall, Nom.,PVC
• Overall Diameter (in): 0.260+/- 0.013
• Jacket Color: Slate

Ratings & Compliance (As Provided):

• Fire Rating: General Purpose
• NEC rating: UL listed multi purpose

Color Code:

• Color code standard: Alpha Wire Color Code A
• Pair 1 color: Black-Red
• Pair 2 color: Black-White

Cable Print (Exact):

• ALPHA WIRE-* P/N 86602CY 2PR 24 AWG
  XTRAGUARD(R) Continuous Flex DATA CABLE
  (UL) 105C TYPE CM SUN RES OR C(UL) CMG OR
  AWM 2661 105C 300V --- LL49185
  CSA AWM I/II A/B FT4 105C 300V CE
  ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
