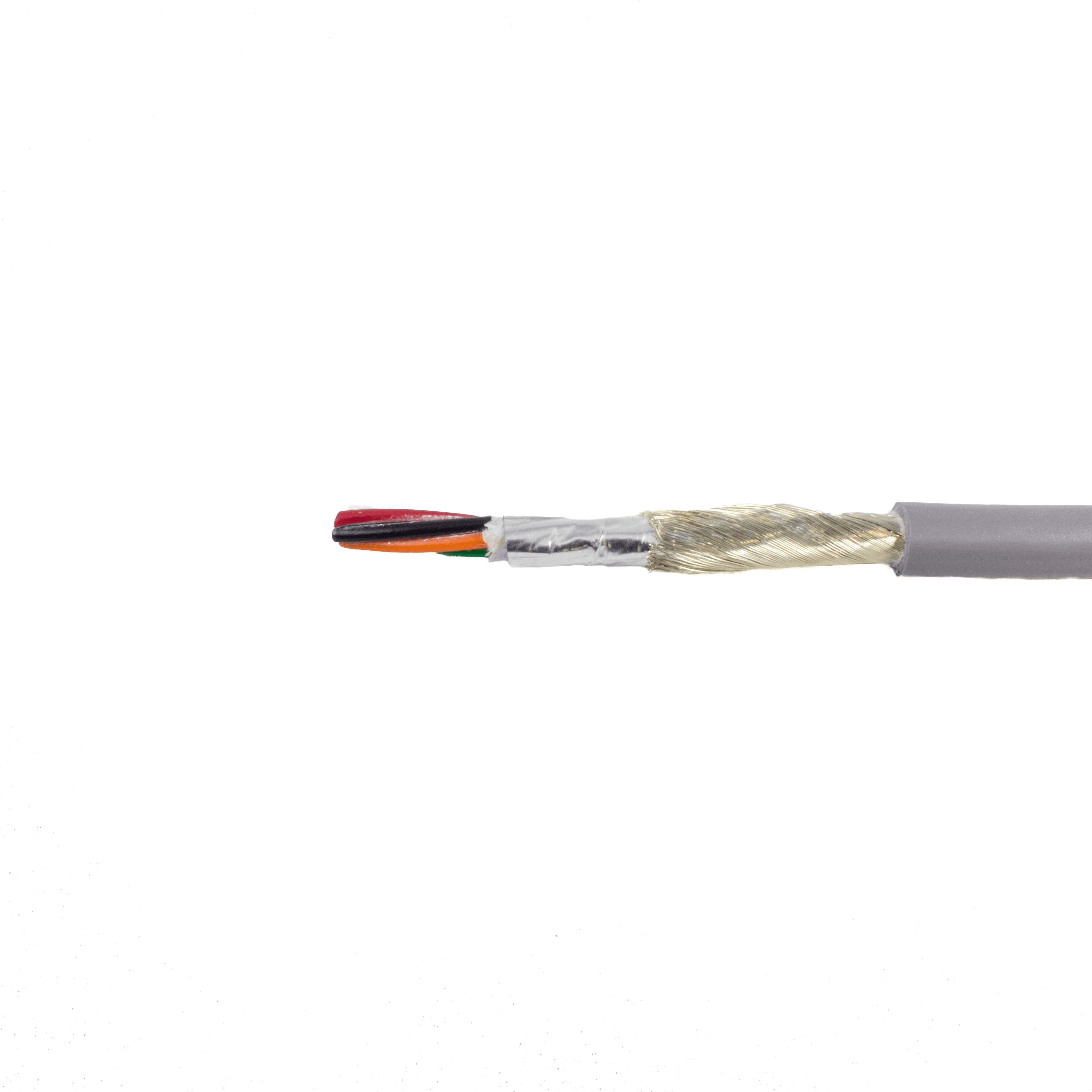

Alpha Wire 8672001CY SL001, Composite Cable 1P 20 AWG Shielded SRPVC PVC Jacket

Part Number: 8672001CY SL001

Alpha Wire 8672001CY SL001 is a shielded composite data cable built with 1 pair of 20 AWG Tinned Copper Stranded Conductors and a durable PVC Jacket. It uses an overall braid over Foil Shield with a Drain Wire to help reduce EMI/RFI in noise-sensitive signal and control applications. The semi-rigid PVC Insulation and XTRAGUARD(R) Continuous Flex construction details support reliable performance in demanding installations. The Jacket is slate colored and includes the manufacturer’s full cable print for easy Identification and compliance reference.

Conductor

• Number Of Conductors: 1 Pair
• Conductor Size: 20 AWG (American Wire Gauge)
• Conductor Stranding/type: Stranded Conductor
• Conductor Material: Tinned Copper
• Conductor Construction: 20 (19/32) AWG Tinned Copper
• Conductor Diameter (in): 0.040

Insulation

• Insulation Material: SRPVC-Semi-Rigid Polyvinyl Chloride
• Insulation wall: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulated Conductor Diameter (in): 0.060

Pairing, Color Code & Cabling

• Color code: Alpha Wire Color Code A
• Pair 1 color: Black-Red
• Cabling: 2 Cond Cabled
• Twists: 6.9 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shielding

• Shielded: Yes
• Screen/Shield Type: Braid over Foil Shield
• Shield Construction: Overall Shield & drain
• Shield tape: Flex Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing Out
• Drain Wire: 26 (7/34) AWG Tinned Copper
• Braid: Tinned Copper,85% Coverage, Nom.

Jacket

• Jacket Material: PVC-Polyvinyl Chloride
• Jacket wall: 0.040" Wall, Nom.,PVC
• Overall Diameter (in): 0.236+/- 0.010
• Jacket Color(s): Slate
• Jacket separator: Tissue Tape, 25% Overlap, Min.

Ratings & Compliance (As Provided)

• Fire Rating: General Purpose
• Cable print (exact): ALPHA WIRE-* P/N 8672001CY 1PR 20 AWG
  XTRAGUARD(R) Continuous Flex DATA CABLE
  (UL) TYPE PLTC 105C OR TYPE CM 105C SUN RES OR
  C(UL) CMG OR AWM 2661 105C 300V --- LLXXXXXX
  CSA AWM I/II A/B FT4 105C 300V CE
  ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
