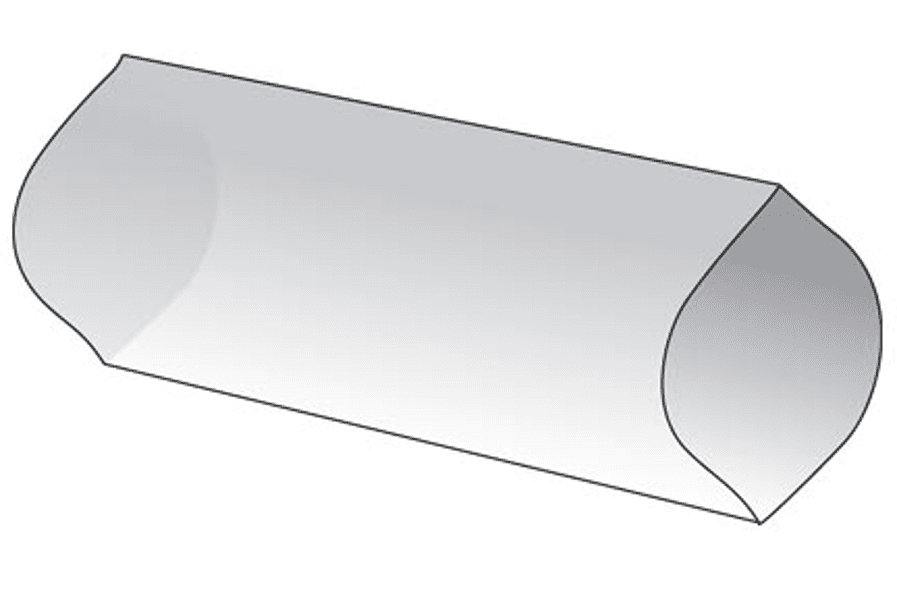

Alpha Wire F3503/4 CL105, PVDF 3/4 Heat Shrink Tubing 2:1 Clear

Part Number: F3503/4 CL105

Alpha Wire F3503/4 CL105 is a clear, heat shrinkable tubing designed for reliable Insulation and protection in demanding wire and cable applications. It features irradiated PVDF construction using KYNAR-PVDF fluoro-copolymer material and a 2:1 shrink ratio, shrinking from a minimum supplied ID of 0.750 to a maximum recovered ID of 0.375. This single wall tubing is UL listed and meets MIL-I-23053/8 requirements for performance-driven environments. With a nominal recovered wall thickness of 0.017, it provides a durable, tight-fitting finish for harnessing, strain relief, and component protection.

Construction & Material:

• Tubing type: Heat shrinkable tubing
• Material/type: KYNAR-PVDF fluoro-copolymer
• Tubing material: Irradiated PVDF
• Wall type: Single wall

Size & Dimensions:

• Size (inch fraction): 3/4 INCH
• Decimal size: .750 INCH
• Minimum supplied ID (In): 0.750
• Maximum recovered ID (In): 0.375
• Nominal recovered wall thickness (In): 0.017

Color:

• Color(s): CLEAR
• Military color code: Clear

Compliance:

• UL: Yes
• MIL spec: Yes
• Military spec: MIL-I-23053/8

Product Attributes:

• Heat shrink: Yes is shrink tubing
• Dual: No
• Sleeving: No
• Spiral wrap: No
• Zipper: No
