Alpha Wire M13179 SL001, Manhattan Electrical Cables 9 Pair 18 AWG Shielded 300 V PVC

Part Number: M13179 SL001

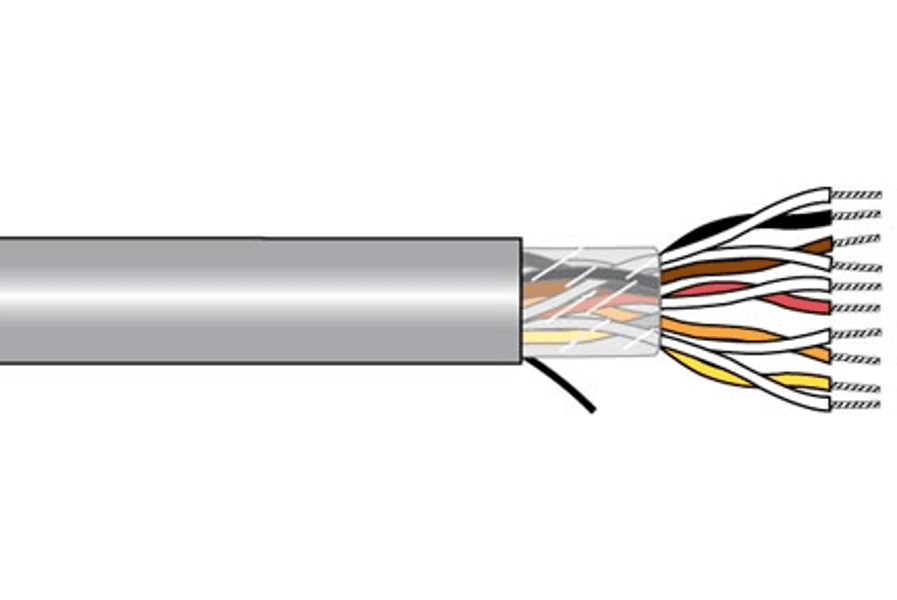

Alpha Wire M13179 SL001 is a shielded, multi-pair control and computer cable built with Tinned Copper Stranded Conductors and a durable PVC Jacket. It features 18 AWG (American Wire Gauge) Conductors with polypropylene (PP) Insulation and an Overall Foil Shield with drain to help reduce EMI in sensitive signal applications. The construction uses 9 X 1 PAIR components with defined twist rates for both the pairs and the overall cable assembly. Rated 300 V with NEC CMG and General Purpose Fire Rating, it’s a Solid choice for low-voltage computer and instrumentation wiring where shielding and organized pair Identification are important.

Electrical & Ratings:

• Voltage Rating: 300 V
• NEC rating: NEC CMG
• Fire Rating: General Purpose

Conductors:

• Number Of Conductors: 9 PAIRS
• Component count (construction): 9 X 1 PAIR
• Conductor Size: 18 AWG (American Wire Gauge)
• Conductor Construction: 18 (16/30) AWG Tinned Copper
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter (in): 0.047

Insulation:

• Insulation Material: PP-Polypropylene
• Insulation wall: 0.016" Wall, Nom. Polypropylene(PP)
• Insulated Conductor Diameter (in): 0.079

Pairs, Twists & Cabling:

• Pairing: 2/Cond Cabled Together
• Pair twists: 5.3 Twists/foot (min)
• Cable assembly: 9 Components Cabled
• Cable assembly twists: 1.5 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Clear Mylar Tape, 25% Overlap, Min.

Shielding:

• Shielding: Yes
• Screen/Shield Type: Foil Shielded - Alum/Mylar
• Shield Construction: Overall Shield & drain
• Shield tape: Foil Free Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 20 (7/28) AWG Tinned Copper

Jacket:

• Jacket Material: PVC-Polyvinyl Chloride
• Jacket wall: 0.047" Wall, Nom.,PVC
• Overall Diameter (in): 0.618 (0.640 Max.)
• Jacket Color(s): Slate

Color Code (Alpha Wire Color Code K):

• Pair 1: Black-Red
• Pair 2: Black-White
• Pair 3: Black-Green
• Pair 4: Black-Blue
• Pair 5: Black-Yellow
• Pair 6: Black-Brown
• Pair 7: Black-Orange
• Pair 8: Red-White
• Pair 9: Red-Green

Cable Print (as marked):

• ALPHA WIRE-* P/N M13179 9PR 18 AWG
  EXXXXXX 75C SHIELDED CMG (UL) C(UL) OR
  AWM STYLE 2919 LOW VOLTAGE COMPUTER CABLE
  CE ROHS
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
