Alpha Wire M1704 SL001, Tray Cable 4C 18AWG Braid PVC Slate

Part Number: M1704 SL001

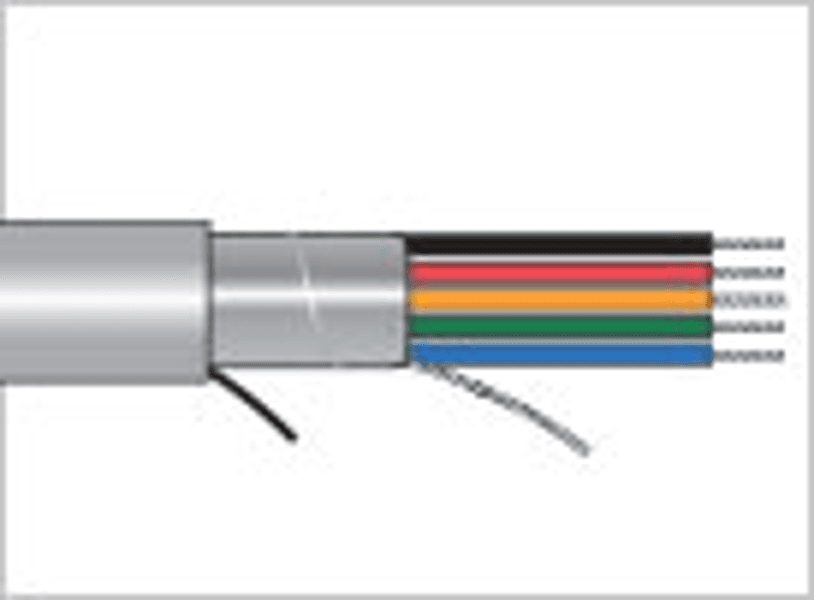

Alpha Wire M1704 SL001 is a 4-Conductor, 18 AWG tray cable built with Stranded Tinned Copper Conductors and an overall Tinned Copper Braid Shield for reliable noise reduction. Each Conductor is insulated with PVC and cabled with a clear Mylar tape core wrap, then protected by a PVC Jacket in Slate. The design includes 4.4 Twists/foot (min) to support consistent performance in control and instrumentation-style wiring. Jacket print markings include ALPHA WIRE-* P/N M1704 4C 18 AWG, CE ROHS, and * = Factory Code.

Conductors:

• Number Of Conductors: 4 Conductors
• Configuration: 4 X 1 Cond
• Conductor Size: 18 AWG (American Wire Gauge)
• Conductor Construction: 18 (19/30) AWG Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Material: Tinned Copper
• Conductor Diameter (In): 0.050

Insulation:

• Insulation Material: PVC-Polyvinyl Chloride
• Insulation Wall: 0.016" Wall, Nom. PVC
• Insulated Conductor Diameter (In): 0.082

Color Code:

• Color Code: Alpha Wire Color Code F
• Conductor 1 Color: Black
• Conductor 2 Color: White
• Conductor 3 Color: Red
• Conductor 4 Color: Green

Cabling & Core Wrap:

• Cable Assembly: 4 Components Cabled
• Twists: 4.4 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core Wrap: Clear Mylar Tape, 25% Overlap, Min.

Shielding:

• Screen/Shield: Yes
• Screen/Shield Type: Braid Shielded
• Shield Construction: Overall Braid Shield
• Shield: Tinned Copper Braid Shield,90% Coverage, Min.

Jacket:

• Jacket Material: PVC-Polyvinyl Chloride
• Jacket Wall: 0.023" Wall, Nom.,PVC
• Overall Diameter (In): 0.269 (0.281 Max.)
• Jacket Color(s): Slate
• Jacket Print: ALPHA WIRE-* P/N M1704 4C 18 AWG
  CE ROHS
  * = Factory Code

Ratings & Compliance:

• Fire Rating: General Purpose
• NEC Rating: Not Listed by UL Under NEC
