Alpha Wire M33830 BK001, Manhattan Electrical Cables Control Cable 5C 16 AWG Foil 600 V PVC Jacket

Part Number: M33830 BK001

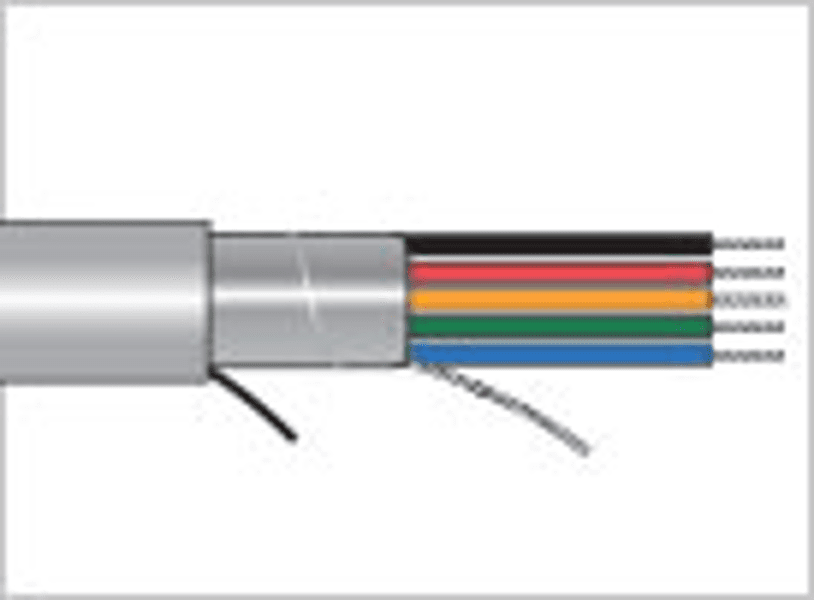

Alpha Wire M33830 BK001 is a VNTC Control Cable built for industrial control and power applications requiring a 600V rating. It features 5 Conductor of 16 AWG Stranded Bare Copper Conductors with PVC/NYL-POLYVINYL CHLORIDE/NYLON Insulation and a PVC Polyvinyl Chloride Jacket. For improved noise protection, the cable uses a Foil Shield AL MYLAR with an 18 (7/.0152) AWG Tinned Copper Drain Wire and foil facing in. The black Jacket includes the manufacturer print Marking exactly as specified for Identification and compliance needs.

General Specifications:

• Product Type: VNTC Control
• Voltage Range: 600V
• Armor: No
• Composite: No

Conductors:

• Number Of Conductors: 5 Conductor
• Conductor Size: 16 AWG
• Conductor Type: Stranded
• Conductor Material: Bare Copper
• Conductor Construction: 16 (7/.0192) AWG Bare Copper
• Conductor Diameter (In): 0.058
• Earth/Ground Wires: No

Insulation:

• Insulation Material: PVC/NYL-POLYVINYL CHLORIDE/NYLON
• Insulation Construction: 0.016" Wall, Nom. PVC/ 0.005" Wall NYLON
• Insulated Conductor Diameter (In): 0.100

Color Code:

• Color Code Standard: Alpha Wire Color Code J
• Conductor 1 Color: Black
• Conductor 2 Color: Red
• Conductor 3 Color: Blue
• Conductor 4 Color: Orange
• Conductor 5 Color: Yellow

Cabling & Core Wrap:

• Cable Assembly: 5 Components Cabled
• Twists: 3.0 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core Wrap: Clear Mylar Tape, 25% Overlap, Min.

Shielding:

• Shield: Shielded
• Shield Type: Foil Shield AL MYLAR
• Shield Construction: Alum/Mylar Tape, 25% Overlap, Min.
• Foil Direction: Foil Facing In
• Drain Wire: 18 (7/.0152) AWG Tinned Copper

Jacket:

• Jacket Material: PVC Polyvinyl Chloride
• Jacket Construction: 0.047" Wall, Nom.,PVC
• Overall Diameter (In): 0.372 (0.391 Max.)
• Jacket Color: Black

Cable Print Marking:

• ALPHA WIRE-* P/N M33830 5C 16 AWG
  EXXXXXX (UL) TYPE TC 600V 90C DRY 75C WET
  SUN RES DIR BUR CE ROHS
  * = Factory Code
