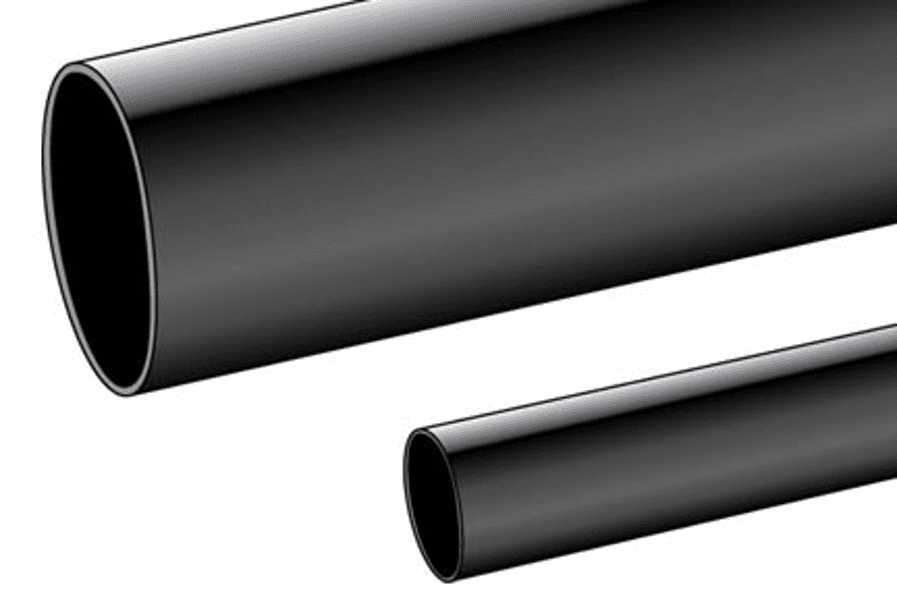

Alpha Wire P1053/8 BK003, FIT Wire Management Tubing PVC

Part Number: P1053/8 BK003

Alpha Wire P1053/8 BK003 FIT wire management tubing is a non-shrinkable PVC sleeving solution designed to protect and organize wire and cable bundles. This black tubing features a 3/8 INCH size with a 0.375 minimum ID and 0.399 maximum ID for flexible routing and coverage. Built with a 0.025 nominal wall thickness, it provides durable Insulation and abrasion protection in general wire management applications. It is UL listed and meets MIL-I-631D requirements for added compliance confidence.

Construction:

• Tubing type: Tubing Non Shrinkable
• Tubing material: PVC
• Wall type: Single wall
• Nominal wall thickness (In): 0.025

Dimensions:

• Size by inch fractions: 3/8 INCH
• Decimal size: .375 INCH
• Minimum ID (In): 0.375
• Maximum ID (In): 0.399

Color:

• Color(s): Black, Clear
• Military color code: Black

Compliance & Ratings:

• UL: Yes
• MIL spec: Yes
• Military spec: MIL-I-631D

Features:

• Heat shrink: No is not shrink tubing
• Sleeving: Yes
• Dual: No
• Spiral wrap: No
• Zipper: No
• Material/type: PVC-black polyvinylchloride, contaminating
