Alpha Wire TFT20016 NA001, FIT Wire Management Tubing Min. ID .051 Max. ID .058

Part Number: TFT20016 NA001

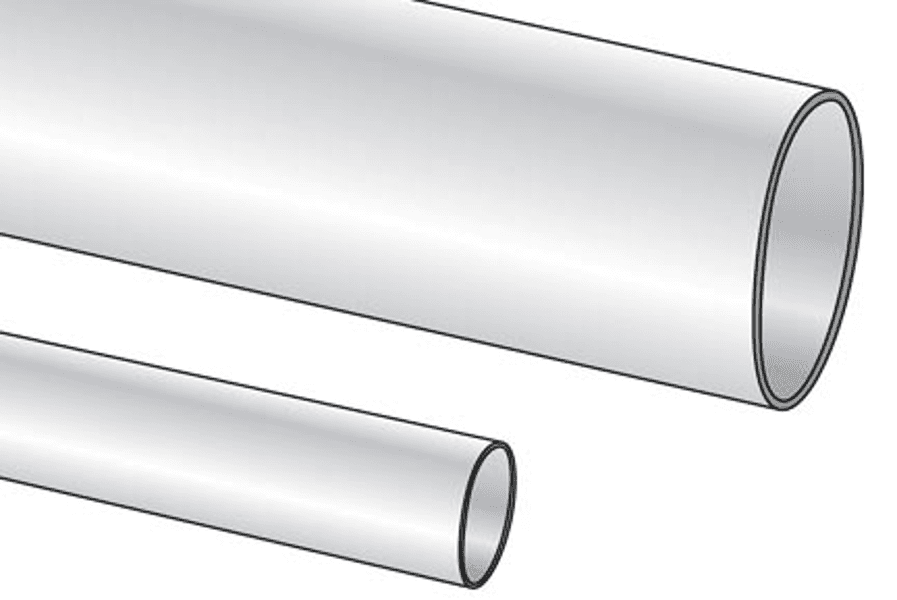

Alpha Wire TFT20016 NA001 FIT wire management tubing is a non shrinkable PTFE tubing designed to protect and organize wires in demanding environments. It features a minimum ID of 0.051 and a maximum ID of 0.058, with a nominal wall thickness of 0.012 for reliable Insulation and abrasion protection. The tubing is natural/clear in color and uses a single wall construction. This option is not heat shrink tubing and is not rated to UL or MIL spec.

Construction:

• Tubing type: Tubing non shrinkable
• Tubing material: PTFE
• Wall type: Single wall
• Nominal wall thickness (In): 0.012

Dimensions:

• Minimum ID (In): 0.051
• Maximum ID (In): 0.058

Color:

• Color(s): Natural
• Military color code: Clear

Additional Attributes:

• Dual: No
• Heat shrink: No is not shrink tubing
• Sleeving: No
• Spiral wrap: No
• Zipper: No

Compliance:

• UL: No
• MIL spec: No

Material/Type:

• TFE-Tetrafluoroethylene & PTFE
