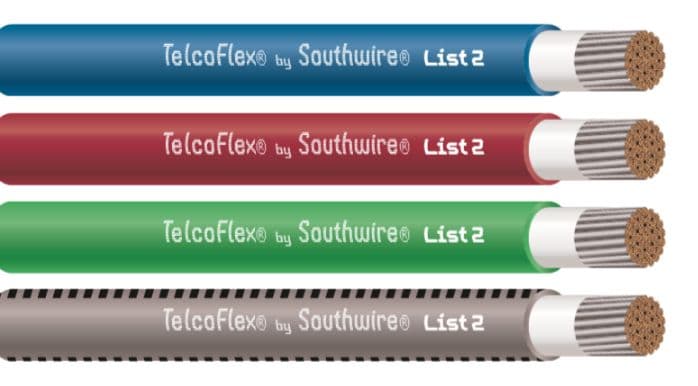

10 AWG TELCOFLEX® L2 KS-24194 Unbraided Cable

Enter the desired length above. Sold and priced per foot. Cut to length.

Southwire AIW CORD BRAND TELCOFLEX® II L2 KS-24194 AWG 10 telecom power wire and cable. Built with a Class K tinned copper conductor, Mylar tape separator, and limited smoke, non-halogenated insulation rated 105°C dry and 60°C wet.

Technical Specs

Wire type	Telecom power wire and cable
Size	AWG 10
Conductor	Class K tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated, 105°C dry, 60°C wet
Standards	ASTM B-33 and B-172 Class I tinned copper
Listings & ratings	UL 44 Type RHH, FT4-ST1, VW-1, 600 volts DC or AC
Specification	KS-24194 List 2
Standard	UL 2731 Telecommunications Central Office Power Cable
Standard	ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Standard	Telecordia GR-347-CORE
Standard	CSA AWM IB 105°C 600V, FT4-ST1
Compliance	Lead-free, silicone-free, RoHS Complaint
Standard	IEC including 60674 and 60332
Regulation	REACH - European Community Regulation

Applications

• Designed for telecommunications power installations in central office environments.
• Commonly used in CATV head end locations where telecom power cabling is required.
• Suitable for data center power cabling needs in telecommunications power systems.
• Used in cell tower applications for telecom power wiring and cable runs.

Cable Print

SIZES 14 AWG THROUGH 10 AWG: SOUTHWIRE AIW CORD BRAND TELCOFLEX® II L2 NON-HAL (UL) E30117 SIZE AWG 600 VOLTS RHH ST1 FT4 OR AWM 3578 60°C WET VW-1 --- LL90458 CSA AWM I B 105°C 600 VOLTS FT4 (YYYY) (TIME JULIAN DATE) --- MEETS IEC INCLUDING 60674 & 60332.

Shipping & Availability

Enter the desired length above. Sold and priced per foot. Cut to length.
