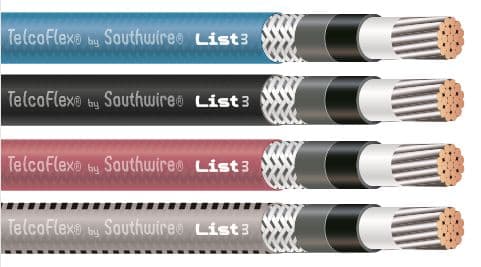

10 AWG TELCOFLEX® L3 KS-24194 Saturated Braid

AWG 10 TELCOFLEX® L3 KS-24194 telecom power wire and cable is sold and priced per foot and cut to length. It features a Class B tinned copper conductor with a Mylar tape separator. Insulation is limited smoke, non-halogenated with an overall flame retardant saturated braid, rated 105°C dry and 60°C wet.

Technical Specs

Conductor	Class B tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated with an overall flame retardant saturated braid, 105°C dry, 60°C wet
Standards	ASTM B-8 and B-33 Class B tinned copper
UL	UL 44 Type RHH, FT4-ST1, VW-1, 600 volts DC or AC
KS	KS-24194 List 3
UL Listing	UL 2731 Telecommunications Central Office Power Cable
ATIS	ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telecordia	Telecordia GR-347-CORE
CSA	CSA AWM IB 105°C 600V. FT4-ST1
Compliance	Lead-Free, Silicone-Free, RoHS Complaint
IEC	IEC including 60674 and 60332
REACH	REACH - European Community Regulation

Applications

• Designed for central office installations where telecommunications power cabling is required.
• Used in CATV head end environments to support power distribution needs.
• Commonly used in data center applications for telecom power wiring.
• Specified for cell tower applications where telecom power cable is needed.

Shipping & Availability

Enter the desired length above. Sold and priced per foot. Cut to length.
