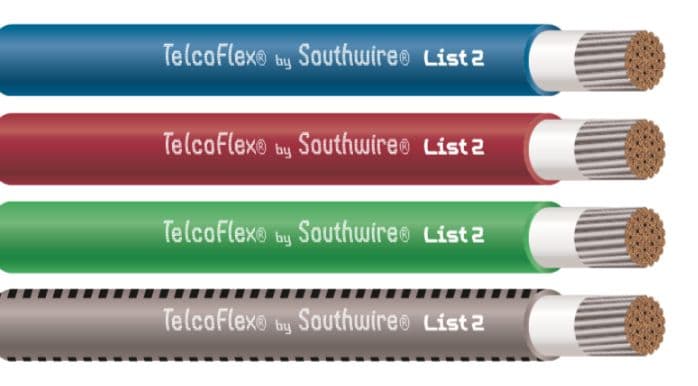

12 AWG TELCOFLEX® L2 KS-24194 Unbraided Cable

AWG 12 TELCOFLEX® L2 KS-24194 telecom power wire and cable. Sold and priced per foot and cut to length; enter the desired length above. Built with a Class K tinned copper conductor, Mylar tape separator, and limited smoke, non-halogenated insulation rated 105°C dry and 60°C wet.

Technical Specs

Conductor	Class K tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated, 105°C dry, 60°C wet
Standards	ASTM B-33 and B-172 Class I tinned copper
UL	UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
KS	KS-24194 List 2
UL listing	UL 2731 Telecommunications Central Office Power Cable
ATIS	ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telecordia	Telecordia GR-347-CORE
CSA	CSA AWM IB 105°C 600V. FT4-ST1
Compliance	Lead-Free, Silicone-Free, RoHS Complaint
IEC	IEC including 60674 and 60332
REACH	REACH - European Community Regulation

Applications

• Designed for Central Office installations where telecom power cabling is required.
• Used in CATV Head End environments to support telecom power distribution needs.
• Specified for Data Center applications where telecom power wire and cable is required.
• Used for cell tower applications that call for telecom power wiring.

Cable Print

SIZES 14 AWG THROUGH 10 AWG: SOUTHWIRE AIW CORD BRAND TELCOFLEX® II L2 NON-HAL (UL) E30117 SIZE AWG 600 VOLTS RHH ST1 FT4 OR AWM 3578 60°C WET VW-1 --- LL90458 CSA AWM I B 105°C 600 VOLTS FT4 (YYYY) (TIME JULIAN DATE) --- MEETS IEC INCLUDING 60674 & 60332.

Shipping & Availability

Enter the desired length above. Sold and priced per foot. Cut to length.
