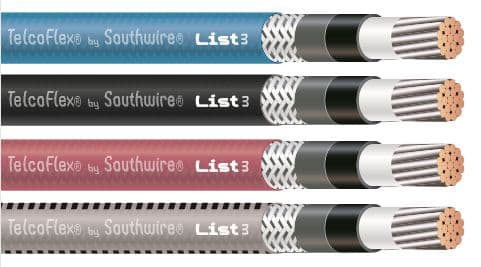

12 AWG TELCOFLEX® L3 KS-24194 Saturated Braid

Enter the desired length above. Sold and priced per foot. Cut to length.

AWG 12 TELCOFLEX® L3 KS-24194 telecom power wire and cable. Conductor: Class B tinned copper. Insulation: limited smoke, non-halogenated with an overall flame retardant saturated braid, 105°C dry, 60°C wet.

Technical Specs

Size	AWG 12
Conductor	Class B tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated with an overall flame retardant saturated braid, 105°C dry, 60°C wet
Standards	ASTM B-8 and B-33 Class B tinned copper
Listings / Ratings	UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
Specification	KS-24194 List 3
Standard	UL 2731 Telecommunications Central Office Power Cable
Standard	ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Standard	Telecordia GR-347-CORE
Standard	CSA AWM IB 105°C 600V. FT4-ST1
Compliance	Lead-Free, Silicone-Free, RoHS Complaint
Standard	IEC including 60674 and 60332
Regulation	REACH - European Community Regulation

Applications

• Meets power wiring needs in central office environments.
• Used in CATV head end installations.
• Fits data center applications.
• Intended for cell tower applications.
