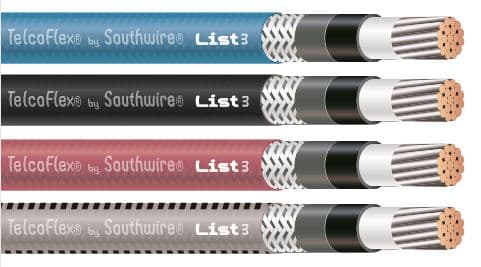

2 AWG TELCOFLEX® L3 KS-24194 Saturated Braid

AWG 2 TELCOFLEX® L3 KS-24194 Telecom Power Wire and Cable is sold and priced per foot and cut to length. It features a Class B tinned copper conductor with a Mylar tape separator and limited smoke, non-halogenated insulation with an overall flame retardant saturated braid. Insulation is rated 105°C dry and 60°C wet.

Technical Specs

Conductor	Class B tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated with an overall flame retardant saturated braid, 105°C dry, 60°C wet
Standards	ASTM B-8 and B-33 Class B tinned copper
UL	UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
KS	KS-24194 List 3
Telecom	UL 2731 Telecommunications Central Office Power Cable
ATIS	ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telecordia	Telecordia GR-347-CORE
CSA	CSA AWM IB 105°C 600V. FT4-ST1
Compliance	Lead-Free, Silicone-Free, RoHS Complaint
IEC	IEC including 60674 and 60332
REACH	REACH - European Community Regulation

Applications

• Use it in central office environments where telecommunications power cabling is required.
• Support CATV head end installations that need telecom power wire and cable.
• Choose it for data center applications that call for telecommunications power cabling.
• Install it in cell tower applications for telecom power wire and cable runs.

Cable Print

SIZES 8 AWG THROUGH 2 AWG: SOUTHWIRE AIW™ CORD BRAND TELCOFLEX® III/KS24194™ L3 NON-HAL (UL) E30117 SIZE (AWG OR KCMIL) 600 VOLTS RHH ST1 FT4 OR AWM 3578 60°C WET VW-1 --- LL90458 CSA AWM I B 105°C 600 VOLTS FT4 (YYYY) (TIME JULIAN DATE) --- MEETS IEC INCLUDING 60674 & 60332

Shipping & Availability

Enter the desired length above. Sold and priced per foot. Cut to length.
