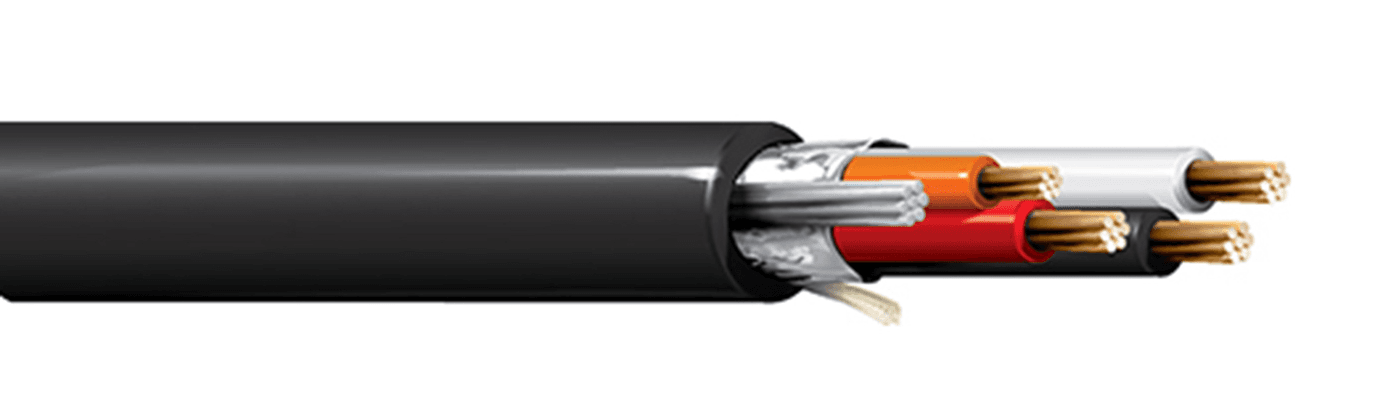

Belden 1031A 006, Power Limited Tray Cable 1 Triad 16 AWG 300V PVC, Blue Jacket
Description
Belden 1031A 006 is a UL instrumentation power limited tray cable for signal and control wiring in industrial environments. It is built with 1 triad 16 AWG (7x24) BC - Bare Copper conductors, PVC - Polyvinyl Chloride insulation, and an overall Beldfoil® shield. This cable is rated 300 V (PLTC, CMG, AWM 2464), 150 V (ITC) and supports -30°C to +105°C operation. It features a blue PVC - Polyvinyl Chloride jacket and is listed for indoor/outdoor use with sunlight resistance and burial suitability.
Belden 1031A 006 Key Features
- 1 triad 16 AWG (7x24) stranded BC - Bare Copper conductors for instrumentation and control circuits.
- Overall Beldfoil® tape shield with 100% coverage to support noise reduction.
- UL voltage rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC).
- Operating temperature: -30°C to +105°C.
- Blue PVC - Polyvinyl Chloride jacket with indoor/outdoor, sunlight resistance, and burial environmental suitability.
Belden 1031A 006 Applications
- Supports industrial control circuits where reliable signal and control wiring is required.
- Installs in raceways, cable trays, and ducts to help organize and route control and instrumentation wiring.
- Works in digital control and low voltage digital control (24v, …) systems for control signaling.
- Connects instruments (4-20ma, 0-10v, ...) used for measurement and process monitoring.
- Meets RTD wiring needs in instrumentation setups.
- Commonly used in distributed control system (DCS) and programmable logic controller (PLC) installations.
- Suitable for solenoids and for wiring valves, actuators, and positioners in control systems.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor Type | Stranded Conductor |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.019 in (0.48 mm) |
| Nom. insulation diameter | 0.095 in (2.4 mm) |
| Color Code | ICEA Chart E1 |
| Shield | Yes - has a shield |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 18 AWG (7x26) TC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Separator | PP - Polypropylene Tape |
| Nom. jacket thickness | 0.042 in (1.1 mm) |
| Overall cable diameter (nominal) | 0.308 in (7.82 mm) |
| Ripcord | Yes |
| Armor | No |
| Nom. outer shield DCR | 5.4 Ohm/1000ft (18 Ohm/km) |
| Nom. conductor DCR | 4.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 54.1 pF/ft (177 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 97.3 pF/ft (319 pF/m) |
| Nom. inductance | 0.156 µH/ft (0.512 µH/m) |
| Max. current | 18 Amps per Conductor @ 30°C |
| Stationary min. bend radius | 3.6 in (91 mm) |
| Installation min. bend radius | 3.6 in (91 mm) |
| Max Pull Tension | 130 lbs (59 kg) |
| Bulk cable weight | 63 lbs/1000ft |
| UL temperature | 105°C |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| UL instrumentation | PLTC ITC CMG AWM 2464 SUN RES |
| Item Type | Belden Instrumentation Cable, PLTC |
| Other Part Numbers | 1031A 0061000, 1031A 006, 1031A 006100, 1031A 006250, 1031A 006500 |
| Priced Per | FT |
