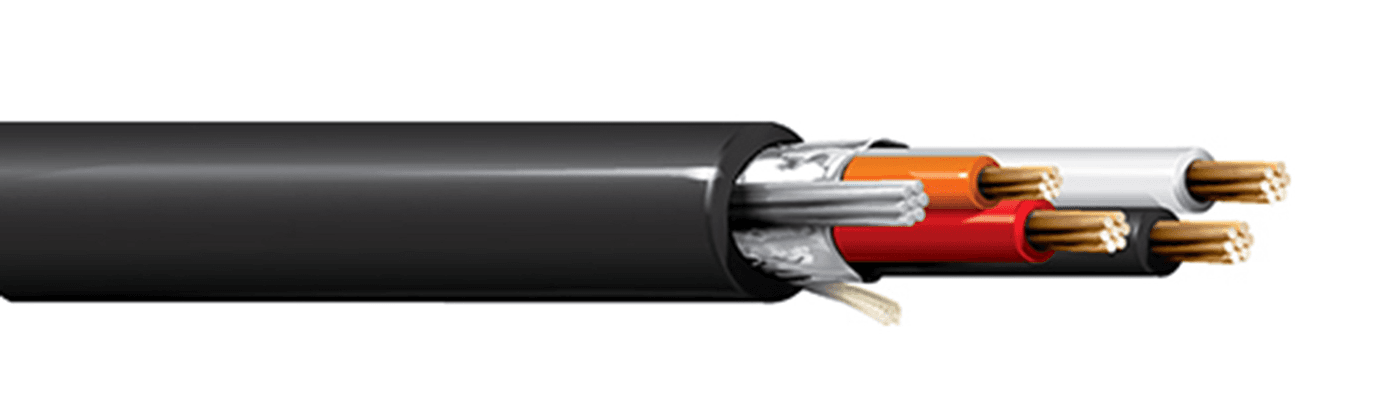

Belden 1031A 010, Power Limited Tray Cable 1 Triad 16 AWG 300V PVC, Black Jacket
SKU:Belden 1031A
● In stock
Description
Belden 1031A 010 is a power limited tray cable designed for industrial control and instrumentation circuits, including DCS, PLC, RTD, and 4-20ma and 0-10v signal applications. It is built with 1 triad 16 AWG (7x24) BC - Bare Copper conductors, PVC - Polyvinyl Chloride insulation, and an overall Beldfoil® shield for noise rejection. The cable includes a black PVC - Polyvinyl Chloride outer jacket with ripcord for easier installation in raceways, cable trays, and ducts. It is rated 300 V (PLTC, CMG, AWM 2464), 150 V (ITC), and -30°C to +105°C, with SUN RES for indoor/outdoor use.
Belden 1031A 010 Key Features
- 1 triad(s) construction with 16 AWG stranded conductors (7x24) in BC - Bare Copper.
- PVC - Polyvinyl Chloride insulation with ICEA Chart E1 color code.
- Overall Beldfoil® shield with tape shielding and 100% coverage.
- Drainwire type: 18 AWG (7x26) TC.
- Black PVC - Polyvinyl Chloride outer jacket with ripcord.
- UL voltage rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC).
- Operating temperature: -30°C to +105°C; UL temperature: 105°C.
- Factory marking: PLTC ITC CMG AWM 2464 SUN RES.
Belden 1031A 010 Applications
- Supports industrial control circuits where consistent signal transmission is required.
- Designed for digital control systems, including distributed control system (DCS) and programmable logic controller (PLC) installations.
- Handles instrumentation signals such as 4-20ma and 0-10v.
- Works in RTD circuits in instrumentation and control environments.
- Installs in raceways, cable trays, and ducts to organize and protect runs in industrial settings.
- Applies to low voltage digital control (24v, …) circuits where control and monitoring signals are routed.
- Connects field devices such as solenoids and valves, actuators, positioners.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 1 |
| Element type | Triad(s) |
| Conductor Type | Stranded Conductor |
| Shield | Yes - this has a shield |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield type (overall) | Overall aluminum mylar foil shield |
| Separator | PP - Polypropylene Tape |
| Armor | No |
| Insulation thickness (nom.) | 0.019 in (0.48 mm) |
| Insulation diameter (nom.) | 0.095 in (2.4 mm) |
| Jacket thickness (nom.) | 0.042 in (1.1 mm) |
| Overall cable diameter (nominal) | 0.308 in (7.82 mm) |
| Bulk cable weight | 63 lbs/1000ft |
| Nom. conductor DCR | 4.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 54.1 pF/ft (177 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 97.3 pF/ft (319 pF/m) |
| Nom. inductance | 0.156 µH/ft (0.512 µH/m) |
| Max. current | 18 Amps per Conductor @ 30°C |
| Nom. outer shield DCR | 5.4 Ohm/1000ft (18 Ohm/km) |
| Stationary min. bend radius | 3.6 in (91 mm) |
| Installation min. bend radius | 3.6 in (91 mm) |
| Max Pull Tension | 130 lbs (59 kg) |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Item Type | Belden Instrumentation Cable, PLTC |
| Other Part Numbers | 1031A 0101000, 1031A 010, 1031A 010100, 1031A 010250, 1031A 010500 |
| Priced Per | FT |
