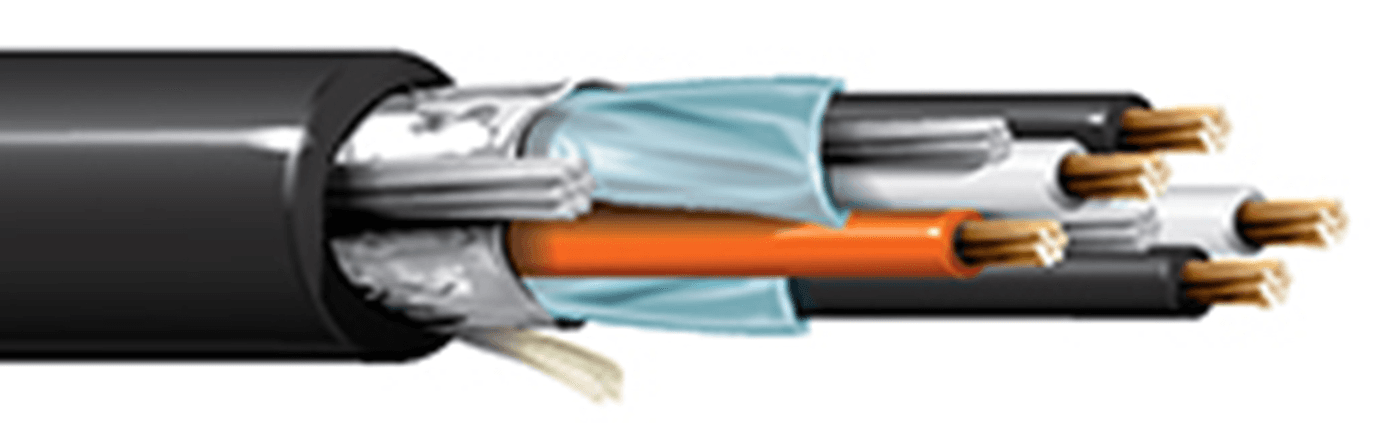

Belden 1032A 006, Power Limited Tray Cable 1 Pair 18 AWG 300V PVC, Blue Jacket
SKU:Belden 1032A-006
● In stock
Description
Belden 1032A 006 is a UL instrumentation power limited tray cable designed for signal and control wiring in industrial environments. It is built with 1 pair 18 AWG (7x26) BC - Bare Copper conductors, PVC - Polyvinyl Chloride insulation, and a Blue PVC - Polyvinyl Chloride outer jacket. For noise reduction in sensitive circuits, it includes a tape shield with Bi-Laminate (Alum+Poly) and 100% coverage. UL Voltage Rating is 300 V (PLTC, CMG, AWM 2464), 150 V (ITC), and it is listed for Indoor/Outdoor use with Sunlight Resistance.
Belden 1032A 006 Key Features
- 1 pair construction with 18 AWG (7x26) stranded BC - Bare Copper conductors.
- PVC - Polyvinyl Chloride insulation with color code: ICEA Chart E1.
- Tape shield using Bi-Laminate (Alum+Poly) with 100% coverage and a 20 AWG (7x28) TC drainwire.
- Blue PVC - Polyvinyl Chloride outer jacket with ripcord: Yes and armor: No.
- UL Voltage Rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC).
- Environmental suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance.
- UL temperature: 105°C; operating temperature: -30°C to +105°C.
- Flammability / reaction to fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4.
- NEC / UL compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC, CL3.
- Additional markings: PLTC ITC CMG AWM 2464 SUN RES.
Belden 1032A 006 Applications
- Use it in industrial control systems that require reliable signal and control wiring.
- Install it in raceways, cable trays, and ducts to support organized routing in industrial environments.
- Support digital control and low voltage digital control (24v, …) circuits in automation and control setups.
- Apply it for instruments (4-20ma, 0-10v, ...) where stable signal transmission is needed.
- Pair it with encoders to carry control and signal connections in industrial equipment.
- Use it in control circuits for devices such as Solenoids, Valves, Actuators, and Positioners.
- Deploy it in distributed control system (DCS) installations for control and instrumentation wiring.
- Integrate it into programmable logic controller (PLC) systems to connect control and instrumentation circuits.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Element count | Number of elements: 1 |
| Element type | Pair(s) |
| Conductor Type | Stranded Conductor |
| Insulation thickness (nom.) | 0.017 in (0.43 mm) |
| Insulation diameter (nom.) | 0.080 in (2.0 mm) |
| Jacket thickness (nom.) | 0.037 in (0.94 mm) |
| Overall cable diameter (nom.) | 0.237 in (6.02 mm) |
| Nom. conductor DCR | 5.86 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 51 pF/ft (170 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 95 pF/ft (310 pF/m) |
| Nom. inductance | 0.19 µH/ft (0.62 µH/m) |
| Max. current | 14 Amps per Conductor @ 30°C |
| Nom. outer shield DCR | 12.8 Ohm/1000ft (42.0 Ohm/km) |
| Stationary min. bend radius | 2.8 in (71 mm) |
| Installation min. bend radius | 2.8 in (71 mm) |
| Max Pull Tension | 58 lbs (26 kg) |
| Bulk cable weight | 30 lbs/1000ft |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Thermocouple | No |
| Item Type | Belden Instrumentation Cable, PLTC |
| Other Part Numbers | 1032A 0061000, 1032A 006, 1032A 006100, 1032A 006250, 1032A 006500 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
