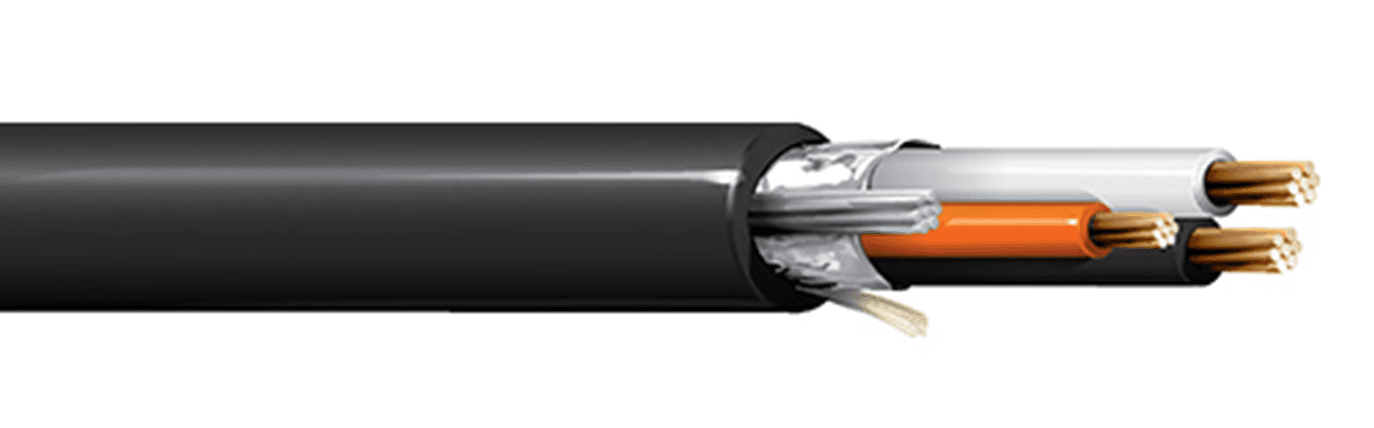

Belden 1033A 010, Power Limited Tray Cable 1 Pair 20 AWG 300V PVC, Black Jacket
SKU:Belden 1033A
● In stock
Description
Belden 1033A 010 is a UL instrumentation power limited tray cable designed for signal and control wiring in industrial environments. It is a 1 pair 20 AWG (7x28) cable with BC - Bare Copper stranded conductors, PVC - Polyvinyl Chloride insulation, and an overall Beldfoil® shield. UL voltage rating is 300 V (PLTC, CMG, AWM 2464) and 150 V (ITC). It includes a black PVC - Polyvinyl Chloride outer jacket with sunlight resistance for indoor/outdoor suitability.
Belden 1033A 010 Key Features
- The 1 pair construction supports paired signal and control circuits.
- It uses 20 AWG (7x28) BC - Bare Copper stranded conductors.
- PVC - Polyvinyl Chloride insulation includes color code: ICEA Chart E1.
- An overall Beldfoil® shield features tape construction, Bi-Laminate (Alum+Poly) material, and 100% coverage.
- Drainwire type: 22 AWG (7x30) TC.
- The black PVC - Polyvinyl Chloride outer jacket includes ripcord: Yes and armor: No.
- UL voltage rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC).
- Environmental suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance.
- Flammability / reaction to fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4.
- NEC / UL compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC.
- AWM compliance: AWM 2464.
- CEC / C(UL) compliance: CMG.
- European directive compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE).
- APAC compliance: China RoHS II (GB/T 26572-2011).
Belden 1033A 010 Applications
- Use it for industrial control wiring where reliable signal and control connections are needed.
- Install it in raceways, cable trays, and ducts to support organized routing in industrial environments.
- Support digital control circuits, including low voltage digital control (24v, …).
- Run instrument loops such as 4-20ma and 0-10v, ….
- Wire distributed control system (DCS) and programmable logic controller (PLC) systems.
- Connect encoders and other control circuits that benefit from shielded signal wiring.
- Make connections to solenoids, valves, actuators, and positioners in control systems.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 1 |
| Element type | Pair(s) |
| Conductor Type | Stranded conductor |
| Insulation nominal thickness | 0.018 in (0.46 mm) |
| Nom. insulation diameter | 0.071 in (1.8 mm) |
| Shield | Yes - this has a shield |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Nom. jacket thickness | 0.037 in (0.94 mm) |
| Nom. diameter | 0.220 in (5.59 mm) |
| Overall cable diameter (nominal) | 0.220 in (5.59 mm) |
| Bulk cable weight | 25 lbs/1000ft |
| Nom. conductor DCR | 10.9 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance (Cond-to-Shield) | 55 pF/ft (180 pF/m) |
| Nom. inductance cond-grnd | .20 µH/ft |
| Max. current | 8 Amps per Conductor @ 30°C |
| Nom. outer shield DCR | 8.48 Ohm/1000ft (27.8 Ohm/km) |
| UL temperature | 105°C |
| Operating temperature | -30°C to +105°C |
| Bend radius (stationary min.) | 2.6 in (66 mm) |
| Bend radius (installation min.) | 2.6 in (66 mm) |
| Max Pull Tension | 34 lbs (15 kg) |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
