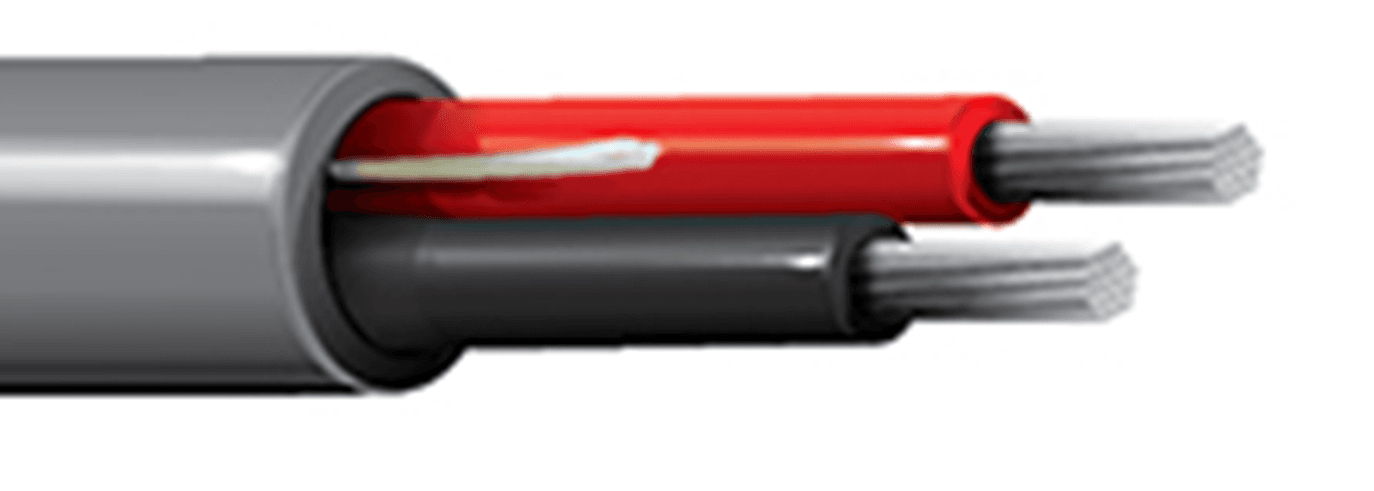

Belden 1035A 010, Power Limited Tray Cable 1 Pair 16 AWG 300V PVC, Black Jacket
SKU:Belden 1035A
● In stock
Description
Belden 1035A 010 is a power limited tray cable for industrial control and instrumentation wiring in raceways, cable trays, and ducts. It is built with 1 pair 16 AWG (7x24) BC - Bare Copper conductors and PVC - Polyvinyl Chloride insulation using the ICEA Chart E1 color code, finished with a black PVC - Polyvinyl Chloride outer jacket. Markings and compliance include PLTC ITC CMG AWM 2464 and SUN RES, with environmental suitability listed as Indoor/Outdoor, Indoor, Outdoor, and Sunlight Resistance.
Belden 1035A 010 Key Features
- Power limited tray cable designed for industrial control and instrumentation wiring in raceways, cable trays, and ducts.
- 1 pair 16 AWG (7x24) stranded conductor construction using BC - Bare Copper.
- PVC - Polyvinyl Chloride insulation with ICEA Chart E1 color code.
- Black PVC - Polyvinyl Chloride outer jacket.
- Unshielded design: Shield: No Shield; Shield Type: Unshielded.
- Compliance and markings include NEC / UL Article 725, Article 727, Article 800, CMG, CL3, PLTC, ITC; AWM 2464; CEC / C(UL) CMG; and manufacturer markings PLTC ITC CMG AWM 2464 SUN RES.
Belden 1035A 010 Applications
- Use it for industrial control and control circuits where power limited tray cable is specified.
- Install it in raceways, cable trays, and ducts for industrial control and instrumentation wiring.
- Support digital control and low voltage digital control (24v, …) connections in control systems.
- Connect instruments (4-20ma, 0-10v, ...) for common signal and low-voltage control applications.
- Apply it in distributed control system (DCS) and programmable logic controller (PLC) installations, including PLC/DCS systems.
- Connect to devices such as solenoids, valves, actuators, and positioners in control and instrumentation setups.
- Use it with encoders in control and instrumentation environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.017 in (0.43 mm) |
| Insulation diameter (nom.) | 0.091 in (2.3 mm) |
| Jacket thickness (nom.) | 0.037 in (0.94 mm) |
| Overall cable diameter (nom.) | 0.256 in (6.50 mm) |
| Ripcord | Yes |
| Armor | No |
| Thermocouple | No |
| Bulk cable weight | 34 lbs/1000ft |
| Nom. conductor DCR | 4.36 Ohm/1000ft |
| Max. current | 18 Amps per Conductor @ 30°C |
| UL Voltage Rating | 300 V (CMG, CL3, PLTC, AWM 2464), 150 V (ITC) |
| Operating temperature | -30°C to +105°C |
| UL temperature | 105°C |
| Stationary min. bend radius | 2.6 in (66 mm) |
| Installation min. bend radius | 2.6 in (66 mm) |
| Max Pull Tension | 71 lbs (32 kg) |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| CPR Euroclass | Eca |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
