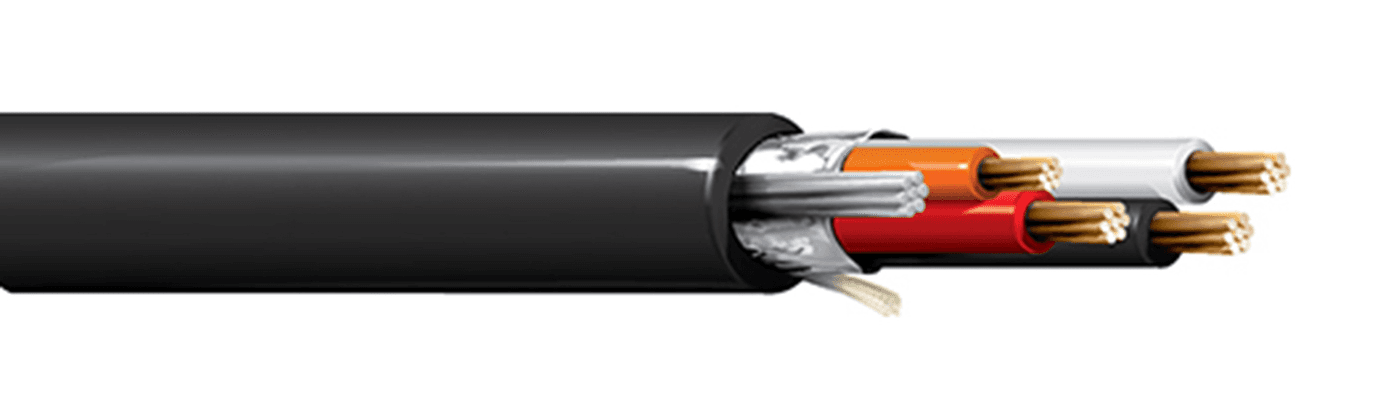

Belden 1036A 006, Power Limited Tray Cable 1 Triad 18 AWG 300V PVC, Blue Jacket
SKU:Belden 1036A-006
● In stock
Description
Belden 1036A 006 is a power limited tray cable designed for industrial control and instrumentation circuits. It is built with 1 triad 18 AWG (7x26) BC - Bare Copper conductors, PVC - Polyvinyl Chloride insulation, and an overall Beldfoil® Shield for noise reduction. This cable is rated 300 V (PLTC, CMG, AWM 2464), 150 V (ITC) and 105°C, and it supports Indoor/Outdoor use with SUN RES performance. The blue PVC jacket helps with quick identification during installation and maintenance.
Belden 1036A 006 Key Features
- Supports industrial control and instrumentation circuits, including DCS, PLC, RTD, and 4-20ma/0-10v signal applications.
- Uses an overall Beldfoil® Shield to help reduce noise in signal circuits.
- Rated 300 V (PLTC, CMG, AWM 2464), 150 V (ITC) and 105°C for control and instrumentation wiring.
- Suitable for Indoor/Outdoor use with SUN RES performance.
- Blue jacket color supports fast visual identification in the field.
Belden 1036A 006 Applications
- Designed for industrial control circuits where consistent signal transmission is required.
- Commonly installed in raceways, cable trays, and ducts to support organized routing in industrial environments.
- Supports distributed control system (DCS) and programmable logic controller (PLC) wiring in automation and process control systems.
- Used with RTD circuits and instrumentation signals such as 4-20ma and 0-10v.
- Suitable for digital control and low voltage digital control (24v, …) signal connections.
- Applied in field device connections including solenoids, valves, actuators, positioners, and related control components.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | power limited tray cable |
| Elements | Triad(s) |
| No. of elements | 1 |
| Conductor size | 18 AWG |
| Conductor stranding | 7x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation nom. thickness | 0.019 in (0.48 mm) |
| Insulation nom. diameter | 0.083 in (2.1 mm) |
| Color Code | ICEA Chart E1 |
| Shield | Overall Beldfoil® Shield |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 20 AWG (7x28) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Separator | PP - Polypropylene Tape |
| Ripcord | Yes |
| Jacket nom. thickness | 0.037 in (0.94 mm) |
| Overall cable diameter (nominal) | 0.272 in (6.91 mm) |
| Jacket Color | Blue |
| Armor | No |
| Nom. conductor DCR | 6.79 Ohm/1000ft |
| Nom. outer shield DCR | 5.07 Ohm/1000ft (16.6 Ohm/km) |
| Nom. capacitance cond-to-cond | 50 pF/ft (160 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 14 Amps per Conductor @ 30°C |
| Stationary min. bend radius | 3.2 in (81 mm) |
| Installation min. bend radius | 3.2 in (81 mm) |
| Max Pull Tension | 81 lbs (37 kg) |
| Bulk cable weight | 38 lbs/1000ft |
| Operating temperature | -30°C to +105°C |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Ratings & Markings | PLTC ITC CMG AWM 2464 SUN RES |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
