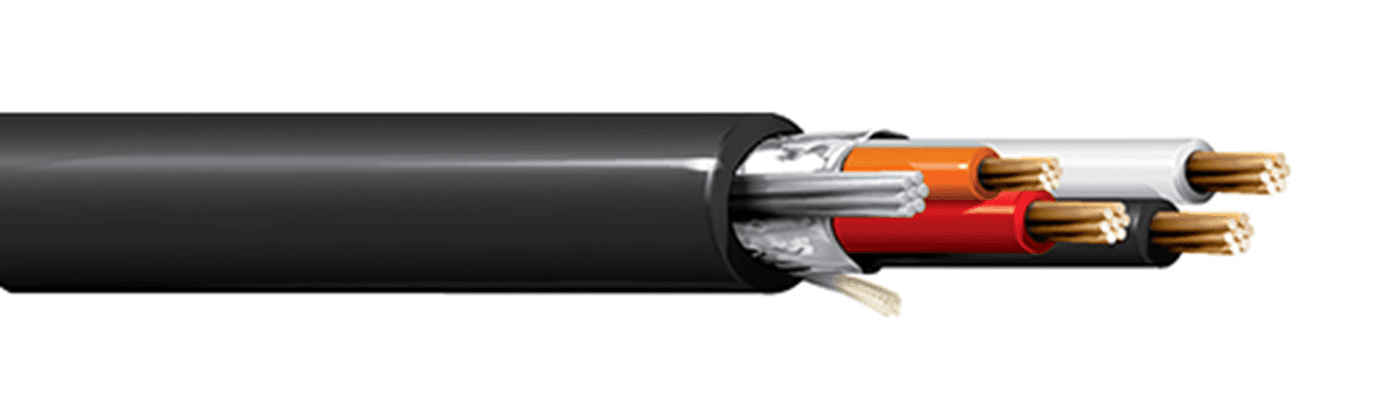

Belden 1036A 010, Power Limited Tray Cable 1 Triad 18 AWG 300V PVC, Black Jacket
SKU:Belden 1036A
● In stock
Description
Belden 1036A 010 is a UL instrumentation power limited tray cable with 1 triad 18 AWG (7x26) BC - Bare Copper conductors and PVC - Polyvinyl Chloride insulation. It includes an overall Beldfoil® shield with 100% coverage and a black PVC - Polyvinyl Chloride outer jacket with ripcord for installation support. This cable is rated 300 V (PLTC, CMG, AWM 2464), 150 V (ITC) and operates from -30°C to +105°C. Environmental suitability includes Indoor/Outdoor, Sunlight Resistance, and Burial.
Belden 1036A 010 Key Features
- Built with 1 triad 18 AWG (7x26) BC - Bare Copper conductors for instrumentation and control wiring.
- Uses PVC - Polyvinyl Chloride insulation with ICEA Chart E1 color code for consistent conductor identification.
- Includes an overall Beldfoil® shield with 100% coverage to help reduce electrical noise in sensitive signal circuits.
- Finished with a black PVC - Polyvinyl Chloride outer jacket and ripcord to support easier installation.
- Rated 300 V (PLTC, CMG, AWM 2464), 150 V (ITC) and designed for operation from -30°C to +105°C.
Belden 1036A 010 Applications
- Supports industrial control and control circuits where instrumentation wiring is required.
- Installs in raceways, cable trays, and ducts for organized routing in industrial environments.
- Meets digital control and low voltage digital control (24v, …) signal wiring needs.
- Connects instruments (4-20ma, 0-10v, …) and RTD circuits in measurement and monitoring systems.
- Works in distributed control system (DCS) and programmable logic controller (PLC) installations.
- Commonly applied for solenoids and for valves, actuators, positioners in control systems.
Belden 1036A 010 Cable Print
PLTC ITC CMG AWM 2464 SUN RESBelden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor element | Triad(s) |
| No. of elements | 1 |
| Conductor size | 18 AWG |
| Conductor stranding | 7x26 |
| Conductor Material | BC - Bare Copper |
| Insulation thickness (nom.) | 0.019 in (0.48 mm) |
| Insulation diameter (nom.) | 0.083 in (2.1 mm) |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Drainwire type | 20 AWG (7x28) TC |
| Separator | PP - Polypropylene Tape |
| Jacket thickness (nom.) | 0.037 in (0.94 mm) |
| Overall cable diameter (nominal) | 0.272 in (6.91 mm) |
| Bulk cable weight | 38 lbs/1000ft |
| Nom. conductor DCR | 6.79 Ohm/1000ft |
| Nom. outer shield DCR | 5.07 Ohm/1000ft (16.6 Ohm/km) |
| Nom. capacitance cond-to-cond | 50 pF/ft (160 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 14 Amps per Conductor @ 30°C |
| UL temperature | 105°C |
| Stationary min. bend radius | 3.2 in (81 mm) |
| Installation min. bend radius | 3.2 in (81 mm) |
| Max Pull Tension | 81 lbs (37 kg) |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
