Belden 1042A 010, Power Limited Tray Cable 12PR 16 AWG 600V PVC, Black Jacket
SKU:Belden 1042A
● In stock
Description

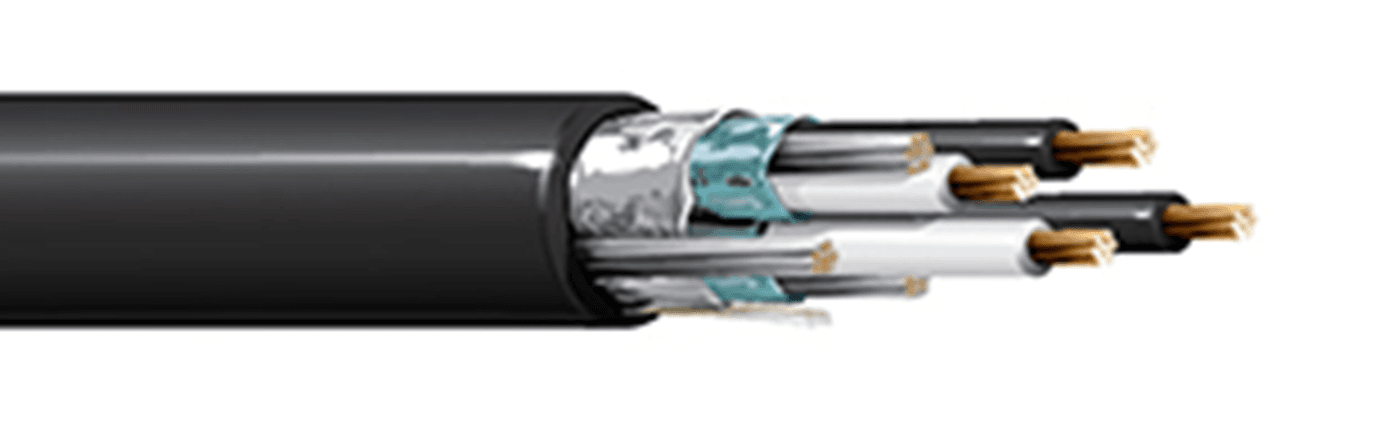

Belden 1042A 010 is a power limited tray cable designed for industrial control and instrumentation wiring in raceways, cable trays, and ducts. It is built with 12 pair 16 AWG (7x24) bare copper conductors, PVC-NYL insulation, and ICEA Chart E1 color coding for consistent identification. For noise rejection in demanding environments, each pair is shielded, and the cable also includes an overall Beldfoil® shield under a black PVC outer jacket. UL voltage rating is 600 V (TC-ER), 150 V (NPLF).
Belden 1042A 010 Key Features
- Power limited tray cable construction intended for industrial control and instrumentation wiring in raceways, cable trays, and ducts.
- 12 pair 16 AWG (7x24) bare copper conductors for multi-pair control and signal wiring.
- PVC-NYL insulation with ICEA Chart E1 color coding to support consistent identification.
- Individual and overall Beldfoil® shield to support noise rejection in demanding environments.
- Black PVC outer jacket.
- UL voltage rating: 600 V (TC-ER), 150 V (NPLF).
Belden 1042A 010 Applications
- Used for industrial control and control circuits where multi-pair wiring is needed.
- Installs in raceways, cable trays, and ducts.
- Supports digital control and low voltage digital control (24v, …) signal wiring.
- Commonly used with instruments (4-20ma, 0-10v, ...) and other instrumentation signal connections.
- Suitable for Distributed control system (DCS) and Programmable logic controller (PLC) wiring.
- Connects encoders in control and instrumentation systems.
- Applied in circuits for solenoids, valves, actuators, positioners.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 12 |
| Conductor size | 16 AWG |
| Stranding | 7x24 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
| Nom. thickness | 0.022 in (0.56 mm) |
| Nom. insulation diameter | 0.101 in (2.57 mm) |
| Color Code | ICEA Chart E1 |
| Shielding configuration | Individual & Overall Beldfoil® Shield |
| Inner shield (each pair) | Tape, Bi-Laminate (Alum+Poly), 100% coverage |
| Inner shield drainwire | 18 AWG (7x26) TC |
| Outer shield | Tape, Bi-Laminate (Alum+Poly), 100% coverage |
| Outer shield drainwire | 16 AWG (7x24) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket Color | Black |
| Nom. jacket thickness | 0.084 in (2.1 mm) |
| Overall cable diameter (nominal) | 0.907 in (23.0 mm) |
| Ripcord | Yes |
| Armor | No |
| Nom. conductor DCR | 4.2 Ohm/1000ft |
| Nom. inner shield DCR | 5.49 Ohm/1000ft (18.0 Ohm/km) |
| Nom. outer shield DCR | 3.14 Ohm/1000ft (10.3 Ohm/km) |
| Max. current | 8 Amps per Conductor @ 30°C |
| Bend radius (stationary min.) | 10.9 in (277 mm) |
| Bend radius (installation min.) | 10.9 in (277 mm) |
| Max Pull Tension | 915 lbs (415 kg) |
| Bulk cable weight | 491 lbs/1000ft |
| UL temperature | 90°C Dry, 90°C Wet |
| Operating temperature | -30°C to 90°C Dry, 90°C wet |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| NEC / UL compliance | Article 336, Article 760, NPLF, TC-ER |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
