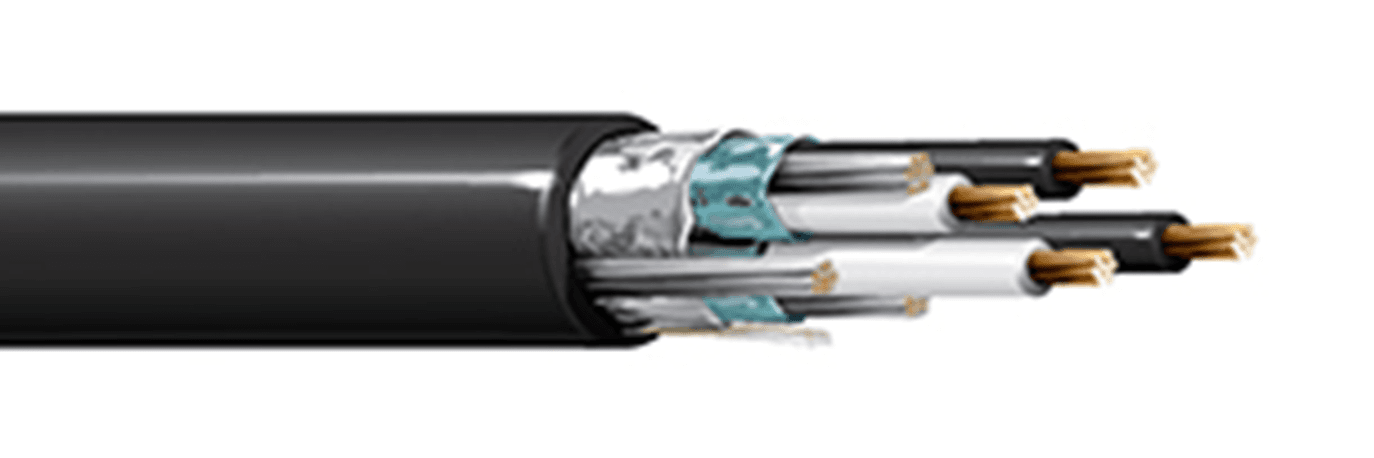

Belden 1043A 010, Power Limited Tray Cable 16P 16 AWG 600V PVC, Black Jacket
SKU:Belden 1043A
● In stock
Description
Belden 1043A 010 is a power limited tray cable designed for industrial control and instrumentation wiring in raceways, cable trays, and ducts. It is built with 16 pair 16 AWG (7x24) BC - Bare Copper conductors and PVC/Nylon - Polyvinyl Chloride + Nylon insulation with ICEA Chart E1 color coding for consistent identification. For noise-sensitive signals, it uses an individual pair shield and an overall shield using Tape, Bi-Laminate (Alum+Poly), 100% coverage. This cable has a Black PVC - Polyvinyl Chloride outer jacket and is rated 600 V (TC-ER), 150 V (NPLF) with UL temperature 90°C Dry, 90°C Wet.
Belden 1043A 010 Key Features
- Power limited tray cable construction for industrial control and instrumentation wiring in raceways, cable trays, and ducts.
- 16 pair 16 AWG conductors with 7x24 stranding and BC - Bare Copper conductor material.
- PVC/Nylon - Polyvinyl Chloride + Nylon insulation with ICEA Chart E1 color code for consistent identification.
- Individual pair shield and overall shield using Tape, Bi-Laminate (Alum+Poly), 100% coverage to support noise-sensitive signals.
- Black PVC - Polyvinyl Chloride outer jacket with environmental suitability listed as Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial.
- UL voltage rating: 600 V (TC-ER), 150 V (NPLF).
- UL temperature: 90°C Dry, 90°C Wet.
Belden 1043A 010 Applications
- Use for industrial control and instrumentation wiring routed through raceways, cable trays, and ducts.
- Support digital control circuits, including low voltage digital control (24v, …), where signal integrity is important.
- Carry instrumentation signals such as 4-20ma and 0-10v, especially in noise-sensitive environments.
- Connect encoders and other control circuits used in automation and process control systems.
- Wire distributed control system (DCS) and programmable logic controller (PLC) installations in industrial environments.
- Connect field devices such as Solenoids, Valves, Actuators, and Positioners in control and instrumentation systems.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 16 |
| Conductor size | 16 AWG |
| Stranding | 7x24 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
| Nom. thickness | 0.022 in (0.56 mm) |
| Nom. insulation diameter | 0.101 in (2.57 mm) |
| Color Code | ICEA Chart E1 |
| Individual pair shield | Tape, Bi-Laminate (Alum+Poly), 100% coverage |
| Individual pair drainwire | 18 AWG (7x26) TC |
| Overall shield | Tape, Bi-Laminate (Alum+Poly), 100% coverage |
| Overall drainwire | 16 AWG (7x24) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket Color | Black |
| Nom. jacket thickness | 0.084 in (2.1 mm) |
| Ripcord | Yes |
| Armor | No |
| Nom. diameter | 1.013 in (25.73 mm) |
| Overall cable diameter (nominal) | 1.013 in (25.73 mm) |
| Bulk cable weight | 601 lbs/1000ft |
| Nom. conductor DCR | 4.2 Ohm/1000ft |
| Nom. inner shield DCR | 4.3 Ohm/1000ft (14 Ohm/km) |
| Nom. outer shield DCR | 2.79 Ohm/1000ft (9.15 Ohm/km) |
| Nom. capacitance cond-to-cond | 50 pF/ft (160 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 87 pF/ft (290 pF/m) |
| Nom. inductance | 0.2 μH/ft (0.66 μH/m) |
| Max. current | 7 Amps per Conductor @ 30°C |
| Operating temperature | -30°C to 90°C Dry/Wet |
| Bend radius (stationary min.) | 12.2 in (310 mm) |
| Bend radius (installation min.) | 12.2 in (310 mm) |
| Max Pull Tension | 1201 lbs (544.8 kg) |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| NEC / UL compliance | Article 336, Article 760, NPLF, TC-ER |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
