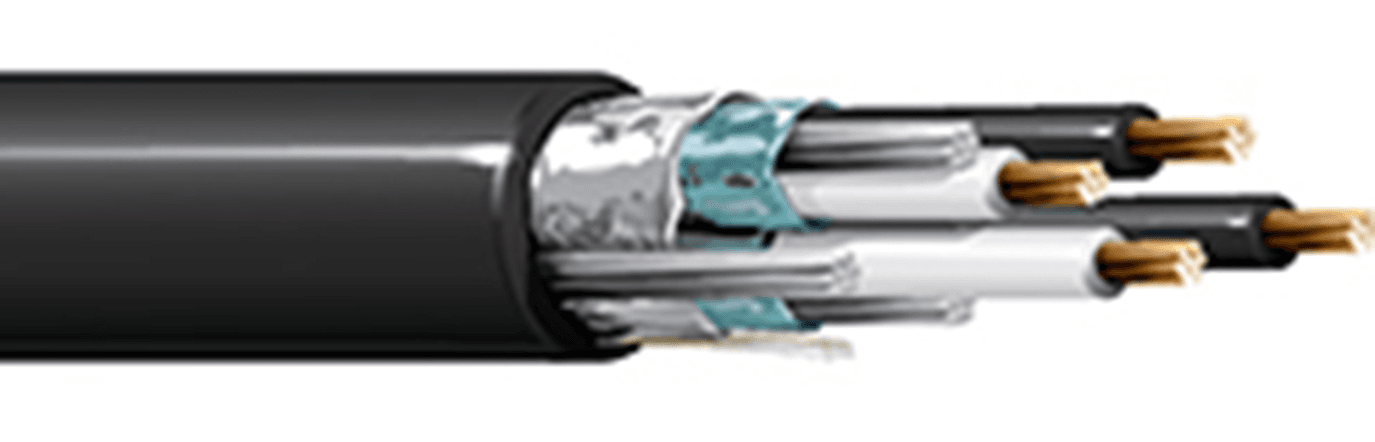

Belden 1052A 010, Power Limited Tray Cable 16PR 18 AWG 600V PVC, Black Jacket
SKU:Belden 1052A
● In stock
Description
Belden 1052A 010 is a power limited tray cable designed for industrial instrumentation and control wiring in raceways, cable trays, and ducts. It features 16 pair 18 AWG (7x26) BC - Bare Copper stranded conductors with PVC/Nylon - Polyvinyl Chloride + Nylon insulation and ICEA Chart E1 color coding for identification. For noise rejection, it uses both individual and overall shields, including an overall Beldfoil® Shield with 100% coverage. It is rated 600 V (TC-ER), 150 V (NPLF) and finished with a black PVC - Polyvinyl Chloride outer jacket for indoor/outdoor use, sunlight resistance, and burial.
Belden 1052A 010 Key Features
- 16 pair construction with 18 AWG (7x26) BC - Bare Copper stranded conductors for instrumentation and control wiring.
- PVC/Nylon - Polyvinyl Chloride + Nylon insulation with ICEA Chart E1 color coding for consistent identification.
- Both individual and overall shields, including an overall Beldfoil® Shield with 100% coverage for noise rejection.
- UL voltage rating: 600 V (TC-ER), 150 V (NPLF).
- Environmental suitability: indoor/outdoor, sunlight resistance, burial.
Belden 1052A 010 Applications
- Use in industrial control installations where instrumentation and control wiring is routed through raceways, cable trays, and ducts.
- Support digital control systems that benefit from shielded signal paths in demanding environments.
- Apply in instrumentation circuits such as Instruments (4-20ma, 0-10v, ...) and low voltage digital control (24v, …).
- Serve control circuits supporting encoders, solenoids, valves, actuators, and positioners.
- Fit automation and process control architectures including distributed control system (DCS) and programmable logic controller (PLC) wiring.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 16 |
| Element type | pair(s) |
| Conductor Type | stranded conductor |
| Insulation material (alt listing) | VN-Vinyl Nylon |
| Shielding | both individual and overall shields |
| Inner shield (each pair) | Tape, Bi-Laminate (Alum+Poly), 100% coverage |
| Inner shield drainwire | 20 AWG (7x28) TC |
| Inner Shield notes | each pair, extra polyester tape for isolation |
| Outer shield | Tape, Bi-Laminate (Alum+Poly), 100% coverage |
| Outer shield drainwire | 18 AWG (7x26) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacketing material (alt listing) | PVC-Polyvinyl Chloride |
| Jacket Color | black |
| Ripcord | Yes |
| Armor | No |
| Nom. insulation thickness | 0.022 in (0.56 mm) |
| Nom. insulation diameter | 0.088 in (2.2 mm) |
| Nom. jacket thickness | 0.084 in (2.1 mm) |
| Overall cable diameter (nominal) | 0.898 in (22.8 mm) |
| Bulk cable weight | 447 lbs/1000ft |
| Nom. conductor DCR | 6.66 Ohm/1000ft |
| Nom. inner shield DCR | 8.48 Ohm/1000ft (27.8 Ohm/km) |
| Nom. outer shield DCR | 5.07 Ohm/1000ft (16.6 Ohm/km) |
| Max. current | 6 Amps per Conductor @ 30°C |
| UL temperature | 90°C Dry, 90°C Wet |
| Operating temperature | -30°C to 90°C Dry/Wet |
| Bend radius (stationary min.) | 10.8 in (274 mm) |
| Bend radius (installation min.) | 10.8 in (274 mm) |
| Max Pull Tension | 752 lbs (341 kg) |
| NEC / UL compliance | Article 336, Article 760, NPLF, TC-ER |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
| Item Type | Belden Instrumentation Cable, TC |
| Other Part Numbers | 1052A 0101000, 1052A 010, 1052A 010100, 1052A 010250, 1052A 010500 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
