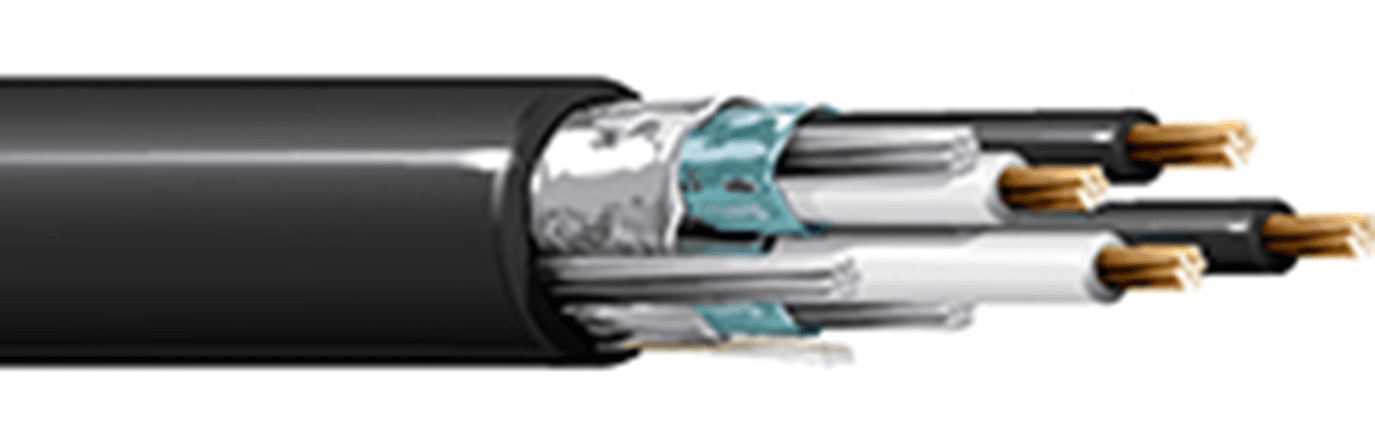

Belden 1053A 010, Power Limited Tray Cable 24PR 18 AWG 600V PVC, Black Jacket

Belden 1053A 010 is a UL instrumentation, power limited tray cable designed for industrial control and instrumentation circuits in raceways, cable trays, and ducts. It is a 24 pair 18 AWG (7x26) cable with bare copper conductors, PVC/nylon insulation, and ICEA Chart E1 color coding for consistent identification. For noise rejection, each pair is shielded, and the cable includes an overall Beldfoil® shield under a black PVC outer jacket. It is rated 600V TC-ER and 150V NPLF for 90°C dry/wet use.

Belden 1053A 010 Key Features

• Built as a UL instrumentation, power limited tray cable for industrial control and instrumentation circuits.
• 24 pair 18 AWG (7x26) bare copper conductors with PVC/nylon insulation.
• ICEA Chart E1 color coding supports consistent identification.
• Both individual and overall shields: each pair is shielded, and the cable includes an overall Beldfoil® shield.
• Rated 600V TC-ER and 150V NPLF with UL temperature 90°C dry, 90°C wet.
• Black PVC outer jacket.

Belden 1053A 010 Applications

• Used for industrial control and instrumentation circuits where organized routing through raceways, cable trays, and ducts is required.
• Supports digital control and control circuits in industrial systems.
• Commonly installed in distributed control system (DCS) and programmable logic controller (PLC) environments.
• Applies to instruments (4-20ma, 0-10v, ...) and low voltage digital control (24v, …) signal types.
• Connects and controls devices such as solenoids, valves, actuators, and positioners.
• Works with encoders in control and instrumentation setups.
