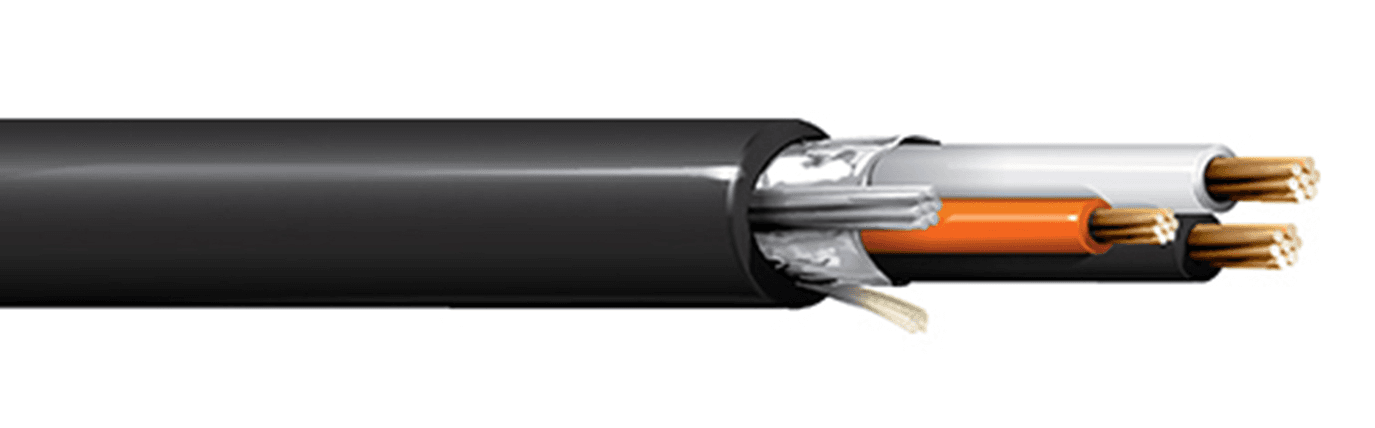

Belden 1058A 010, Power Limited Tray Cable 12PR 20 AWG 300V PVC, Black Jacket
SKU:Belden 1058A
● In stock
Description
Belden 1058A 010 is a power-limited tray cable for industrial control and instrumentation wiring in raceways, cable trays, and ducts. It is built with 12 twisted pairs of 20 AWG (7x28) BC - Bare Copper conductors with PVC - Polyvinyl Chloride insulation and an overall Beldfoil® shield. The black PVC - Polyvinyl Chloride outer jacket includes a ripcord to support easier installation. UL Voltage Rating is 300 V (PLTC, CMG, AWM 2464), 150 V (ITC).
Belden 1058A 010 Key Features
- Designed as a power-limited tray cable for industrial control and instrumentation wiring in raceways, cable trays, and ducts.
- Built with 12 twisted pairs of 20 AWG (7x28) BC - Bare Copper conductors.
- Uses PVC - Polyvinyl Chloride insulation with ICEA Chart E1 pair color code.
- Features an overall Beldfoil® shield with tape construction, Bi-Laminate (Alum+Poly) material, and 100% coverage.
- Protected by a black PVC - Polyvinyl Chloride outer jacket with ripcord.
- UL Voltage Rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC).
Belden 1058A 010 Applications
- Used for industrial control and control circuits where organized multi-pair wiring is needed.
- Supports installation in raceways, cable trays, and ducts for structured routing in industrial environments.
- Commonly used in digital control and low voltage digital control (24v, …) signal wiring.
- Applied in distributed control system (DCS) and programmable logic controller (PLC) systems.
- Connects and controls devices such as solenoids, valves, actuators, and positioners.
- Works with instruments (4-20ma, 0-10v, ...) and encoders in instrumentation and control setups.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Comm wire | Comm Wire count: 1; Comm Wire size: 22 AWG; Comm Wire Stranding: 7x30; Comm Wire material: BC - Bare Copper; Comm Wire Insulation Material: PVC - Polyvinyl Chloride; Comm Wire nominal Insulation Thickness: 0.019 in (0.48 mm); Comm Wire nominal Insulation Diameter: 0.066 in (1.7 mm); Comm Wire color: Orange |
| Conductor Type | Stranded Conductor |
| Pair insulation thickness | 0.018 in (0.46 mm) |
| Pair insulation diameter | 0.071 in (1.8 mm) |
| Drain Wire | 20 AWG (7x28) TC |
| Armor | No |
| Nominal jacket thickness | 0.053 in (1.3 mm) |
| Nominal cable diameter | 0.599 in (15.2 mm) |
| Bulk cable weight | 183 lbs/1000ft |
| Pair nominal Conductor DCR | 10.9 Ohm/1000ft |
| Pair nominal capacitance Cond-to-Cond | 30 pF/ft (98 pF/m) |
| Pair nominal capacitance (Cond-to-Shield) | 55 pF/ft (180 pF/m) |
| Pair nominal inductance | 0.19 µH/ft (0.62 µH/m) |
| Pair max. current | 4.8 Amps per Conductor @ 30°C |
| Comm Wire nominal Conductor DCR | 17.2 Ohm/1000ft (56.4 Ohm/km) |
| Comm wire max. current | 9.6 Amps per Conductor @ 30°C |
| Nom. outer shield DCR | 6.77 Ohm/1000ft (22.2 Ohm/km) |
| UL temperature | 105°C |
| Operating temperature | -30°C to +105°C |
| Stationary minimum bend radius | 7.1 in (180 mm) |
| Installation minimum bend radius | 7.1 in (180 mm) |
| Max Pull Tension | 324 lbs (147 kg) |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
| Thermocouple | No |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, T-29-520, IEEE 1202 FT4 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
