Belden 1060A 010, Power Limited Tray Cable 24PR 20 AWG 300V PVC, Black Jacket
Description

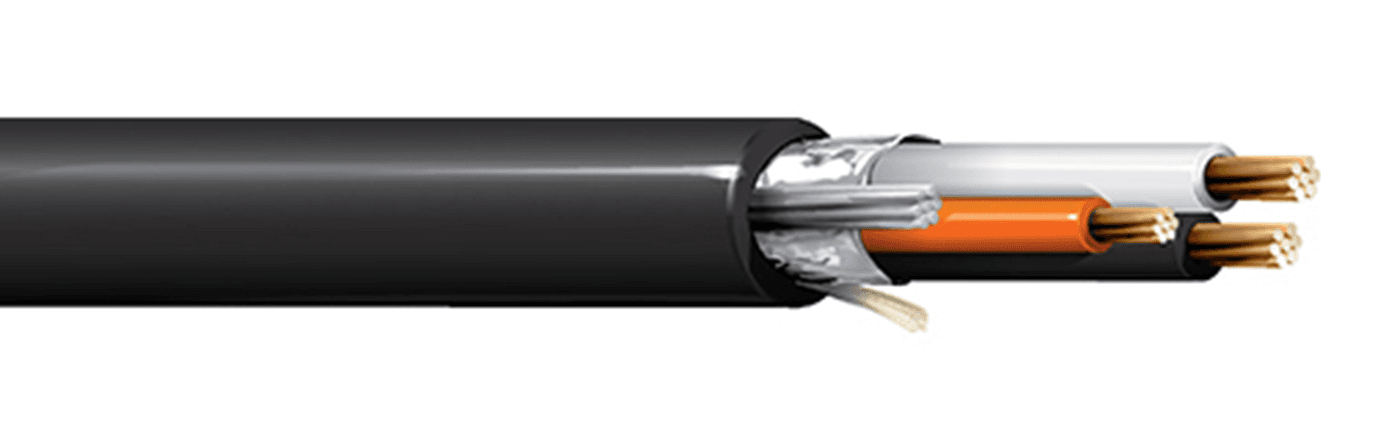

Belden 1060A 010 is a power limited tray cable designed for industrial control and instrumentation wiring in raceways, cable trays, and ducts. It is built with 24 twisted pairs of 20 AWG (7x28) BC - Bare Copper conductors with PVC - Polyvinyl Chloride insulation, plus 1 22 AWG (7x30) BC - Bare Copper comm wire. For noise reduction, it uses an overall Beldfoil® tape shield with 100% coverage and a 20 AWG (7x28) TC drainwire, finished with a black PVC - Polyvinyl Chloride outer jacket with a ripcord. UL Voltage Rating is 300 V (CMG, PLTC, UL AWM 2464), 150 V (ITC), and it is listed as Indoor/Outdoor with Sunlight Resistance.
Belden 1060A 010 Key Features
- 24 twisted pairs of 20 AWG (7x28) BC - Bare Copper conductors for control and instrumentation circuits.
- Includes 1 22 AWG (7x30) BC - Bare Copper comm wire.
- Overall Beldfoil® tape shield with 100% coverage and a 20 AWG (7x28) TC drainwire to support noise reduction.
- Black PVC - Polyvinyl Chloride outer jacket with ripcord; Armor: No.
- UL Voltage Rating: 300 V (CMG, PLTC, UL AWM 2464), 150 V (ITC).
- Environmental suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance.
Belden 1060A 010 Applications
- Supports industrial control wiring where organized routing through raceways, cable trays, and ducts is required.
- Commonly used in distributed control system (DCS) installations to connect control and instrumentation signals.
- Works in programmable logic controller (PLC) control circuits for industrial automation panels and field wiring.
- Used for digital control and low voltage digital control (24v, …) signal wiring in control systems.
- Suitable for instruments (4-20ma, 0-10v, ...) where consistent signal wiring is needed.
- Pairs with encoders and positioners to carry control and feedback signals in automation equipment.
- Connects solenoids, valves, and actuators in control circuits for process and machine control.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor Type | Stranded Conductor |
| Insulation (pairs) | PVC - Polyvinyl Chloride |
| Nom. insulation thickness (pairs) | 0.018 in (0.46 mm) |
| Color Code (pairs) | Black, White and Numbered |
| Insulation (comm wire) | PVC - Polyvinyl Chloride |
| Nom. insulation thickness (comm wire) | 0.019 in (0.48 mm) |
| Color code (comm wire) | Orange |
| Outer shield material | Bi-Laminate (Alum+Poly) |
| Inner shield (comm wire) | No Shield |
| Nom. jacket thickness | 0.063 in (1.6 mm) |
| Nom. cable diameter | 0.838 in (21.3 mm) |
| Bulk cable weight | 347 lbs/1000ft |
| Nom. Conductor DCR (pairs) | 9.5 Ohm/1000ft (31 Ohm/km) |
| Nom. capacitance cond-to-cond (pair(s)) | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-shield (pairs) | 55 pF/ft (180 pF/m) |
| Nom. inductance (pair(s)) | 0.19 µH/ft (0.62 µH/m) |
| Max. Current (pair(s)) | 3 Amps per Conductor @ 25°C |
| Nom. conductor DCR (comm wire) | 14.7 Ohm/1000ft (48.2 Ohm/km) |
| Nom. outer shield DCR | 16 Ohm/1000ft (52 Ohm/km) |
| UL temperature | 105°C |
| Operating temperature | -30°C to +105°C |
| Bend radius (stationary min.) | 8.4 in (210 mm) |
| Bend radius (installation min.) | 8.4 in (210 mm) |
| Max Pull Tension | 695 lbs (315 kg) |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL1685 (FT4 Loading), FT4, T-29-520, 1202 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Approvals | UL Instrumentation |
| Marking | PLTC ITC CMG AWM 2464 SUN RES |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
