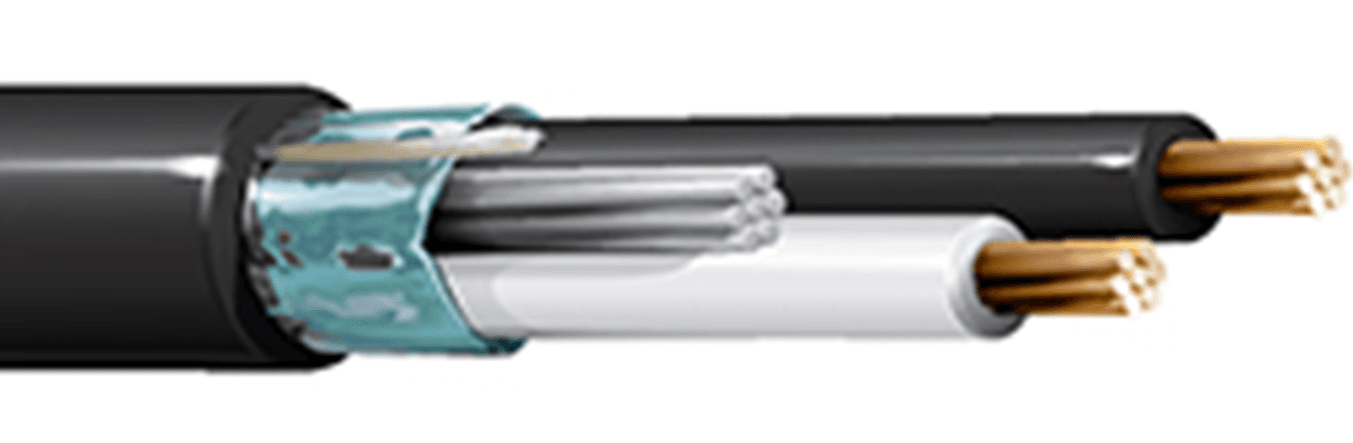

Belden 1065A 010, Multi Conductor Tray Cable 8 Pair 18 AWG 600V PVC
SKU:Belden 1065A
● In stock
Description
Belden 1065A 010 is a multi conductor tray cable designed for industrial control and instrumentation wiring in raceways, cable trays, and ducts. It is built with 8 pair 18 AWG (7x26) BC - Bare Copper conductors, PVC/Nylon - Polyvinyl Chloride + Nylon insulation, and a tape shield using Bi-Laminate (Alum+Poly) with 100% coverage. This cable is rated 600 V (TC-ER) and 150 V (NPLF) and includes a black PVC - Polyvinyl Chloride outer jacket. It is specified for indoor/outdoor use with sunlight resistance and burial suitability.
Belden 1065A 010 Key Features
- The 8 pair construction supports multi-signal industrial control and instrumentation wiring.
- 18 AWG (7x26) BC - Bare Copper conductors provide consistent conductor build.
- PVC/Nylon - Polyvinyl Chloride + Nylon insulation with ICEA Chart E1 color code supports organized identification during termination.
- A tape shield with Bi-Laminate (Alum+Poly) and 100% coverage helps reduce noise in sensitive signal and control circuits.
- UL voltage rating: 600 V (TC-ER), 150 V (NPLF).
- The black PVC - Polyvinyl Chloride outer jacket includes a ripcord for jacket access during installation.
- Environmental suitability includes indoor/outdoor, sunlight resistance, and burial.
Belden 1065A 010 Applications
- Use it for industrial control wiring where multiple paired signals are routed through raceways, cable trays, and ducts.
- Install it in distributed control system (DCS) and programmable logic controller (PLC) systems for control and instrumentation interconnects.
- Support instrument signal wiring such as 4-20ma and 0-10v instruments in control circuits.
- Run it for digital control and low voltage digital control (24v, …) signal runs in industrial environments.
- Connect encoders and other feedback devices in control circuits.
- Wire solenoids, valves, actuators, and positioners in automated control systems.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 8 |
| Element type | pair(s) |
| Conductor size | 18 AWG |
| Stranding | 7x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
| Insulation thickness (nom.) | 0.022 in (0.56 mm) |
| Insulation diameter (nom.) | 0.088 in (2.2 mm) |
| Color Code | ICEA Chart E1 |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 18 AWG (7x26) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket Color | Black |
| Jacket thickness (nom.) | 0.064 in (1.6 mm) |
| Overall cable diameter (nominal) | 0.635 in (16.1 mm) |
| Armor | No |
| Nom. conductor DCR | 6.93 Ohm/1000ft |
| Max. current | 7 Amps per Conductor @ 30°C |
| Nom. outer shield DCR | 4.47 Ohm/1000ft (14.7 Ohm/km) |
| UL temperature | 90°C Dry, 90°C Wet |
| Operating temperature | -30°C to 90°C Dry/Wet |
| Bend radius (stationary min.) | 7.6 in (190 mm) |
| Bend radius (installation min.) | 7.6 in (190 mm) |
| Max Pull Tension | 381 lbs (173 kg) |
| Bulk cable weight | 194 lbs/1000ft |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| NEC / UL compliance | Article 336, Article 760, TC-ER, NPLF, TFFN |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
