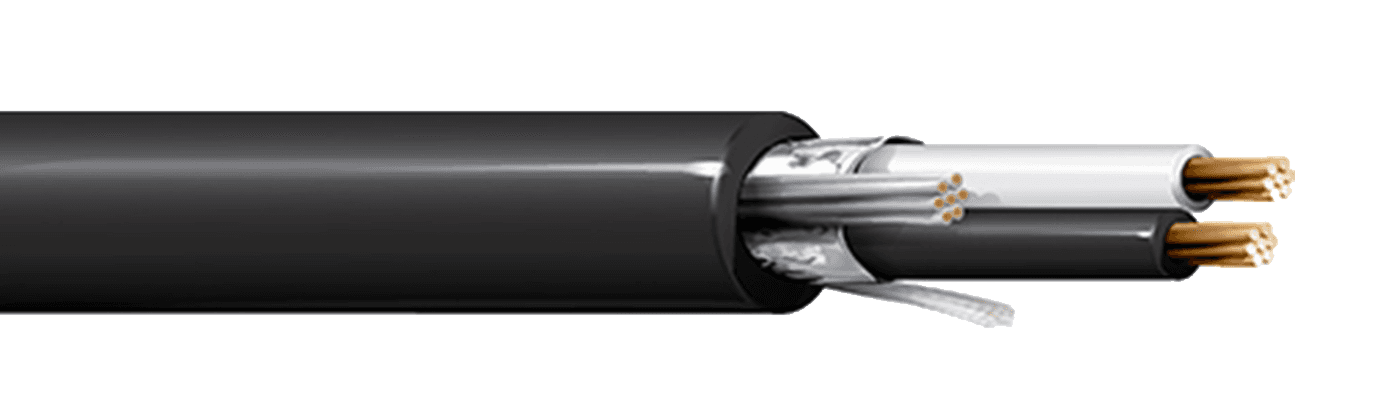

Belden 1069A 010, Power Limited Tray Cable 2P 16 AWG 600V PVC, Black Jacket
SKU:Belden 1069A
● In stock
Description
Belden 1069A 010 is a power limited tray cable designed for industrial control and instrumentation circuits in raceways, cable trays, and ducts. It is built with 2 twisted pairs of 16 AWG (7x24) BC - Bare Copper conductors, PVC/Nylon - Polyvinyl Chloride + Nylon insulation, and an overall Beldfoil® Shield. This cable is rated 600 V (TC-ER) and 150 V (NPLF), with UL temperature performance of 90°C Dry and 90°C Wet. It includes a black PVC - Polyvinyl Chloride outer jacket with ripcord and is listed for indoor/outdoor use with Sunlight Resistance and Burial.
Belden 1069A 010 Key Features
- Supports power limited tray cable installations for industrial control and instrumentation circuits in raceways, cable trays, and ducts.
- Built with 2 twisted pairs of 16 AWG (7x24) BC - Bare Copper stranded conductors.
- Uses PVC/Nylon - Polyvinyl Chloride + Nylon insulation and an overall Beldfoil® Shield to help maintain signal integrity.
- Rated 600 V (TC-ER) and 150 V (NPLF) with UL temperature performance of 90°C Dry and 90°C Wet.
- Finished with a black PVC - Polyvinyl Chloride outer jacket and ripcord to help streamline pulls and termination.
Belden 1069A 010 Applications
- Suitable for industrial control and digital control circuits where consistent, organized wiring is needed.
- Intended for routing through raceways, cable trays, and ducts in industrial installations.
- Supports instrumentation connections, including Instruments (4-20ma, 0-10v, ...).
- Used in low voltage digital control (24v, …) systems where control and signal wiring are required.
- Appropriate for encoders and other control circuits that connect field signals to control equipment.
- Fits distributed control system (DCS) and programmable logic controller (PLC) installations in control panels and industrial automation systems.
- Commonly used to connect field devices such as Solenoids, Valves, Actuators, and Positioners within control and instrumentation loops.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 2 |
| Conductor size | 16 AWG |
| Conductor stranding | 7x24 |
| Conductor Material | BC - Bare Copper |
| Conductor Type | Stranded Conductor |
| Insulation thickness (nominal) | 0.022 in (0.56 mm) |
| Insulation diameter (nominal) | 0.101 in (2.57 mm) |
| Color Code | ICEA Chart E1 |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 16 AWG (7x24) TC |
| Jacket Color | Black |
| Jacket thickness (nominal) | 0.048 in (1.2 mm) |
| Overall cable diameter (nominal) | 0.420 in (10.7 mm) |
| Ripcord | Yes |
| Armor | No |
| Thermocouple | No |
| Nom. conductor DCR | 4.36 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 40 pF/ft (130 pF/m) |
| Max. current | 14 Amps per Conductor @ 30°C |
| Nom. outer shield DCR | 3.24 Ohm/1000ft (10.6 Ohm/km) |
| Operating temperature | -30°C to 90°C Dry/Wet |
| Bend radius (stationary min.) | 5.0 in (130 mm) |
| Bend radius (installation min.) | 5.0 in (130 mm) |
| Max Pull Tension | 179 lbs (81.2 kg) |
| Bulk cable weight | 94 lbs/1000ft |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| NEC / UL compliance | Article 336, Article 760, NPLF, TC-ER |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other standard compliance(s) | 07-KA080011-MSHA |
| Item Type | Belden Instrumentation Cable |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
